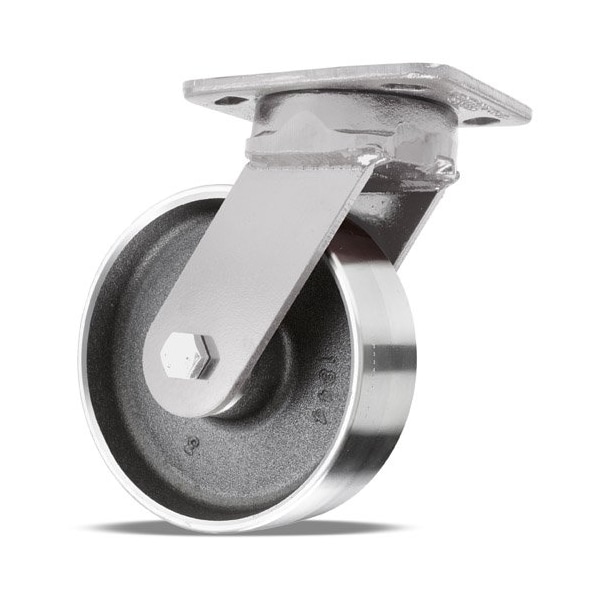

Plate Caster, Kingpinless Swivel, Forged Steel, 6 in, 2500 lb

  • Mfr # S-ZFWH-6FSB-4SL-FB
  • Zoro # G0489347
product price:
$
273.99
/ea
Free Shipping & Returns

Key Features

Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Inside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Caster Plate Hole Pattern
B
Caster Brake Included
Yes
Overall Height
7-1/2"
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
S-ZFWH-6FSB-4SL-FB
Zoro #
G0489347
UPC #
-
Country of Origin
United States
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Inside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Caster Plate Hole Pattern
B
Caster Brake Included
Yes
Caster Frame Material
Steel
Features
Sealed Swivel Bearing
Caster Brake Type
Total Lock
Standards
ANSI ICWM
Caster Temp. Range Available
Yes
Wheel Color
Silver
Replacement Wheel
4DU73
Frame Finish
Enamel
Extended Lead
No
Number of Wheels
1
Core Color
Silver
Outside Bolt Hole Spacing
3 in x 3 in
Thread Guards
No
Load Rating
2500 lb
Caster Sub-Type
Swivel
Includes
Brake
Non-Marking
Yes
Item
Plate Caster
Swivel Raceway Type
Single Ball
Swivel Construction
Kingpinless
Includes Thread Guards
No
Tread Shape
Standard
Wheel/Tread Hardness Rating
Extra Hard
Swivel Lock Type
4-Position Directional Lock
Wheel Core Material
Steel
Load Rating Range
1000 to 2999 lb
Number of Mounting Holes
4
Wheel Bearing Type
Ball
Wheel/Tread Material
Steel
Wheel/Tread Color
Silver
Wheel Type
Flat-Free
Load Capacity - Maximum
2,500 lb
For Surface Type
Concrete
Mounting Hole Type
Slot
Brake Location
Right Side
Wheel Core Type
Solid
Wheel Hardness Rating
170 BHN
Mounting Plate Shape
Rectangle
Operating Temperature Range
-40 Degrees to 200 Degrees F
Operating Temperature - Maximum
200 Degrees F
Operating Temperature - Minimum
-40 Degrees F

Description

Swivel, Plate Caster, Load Rating 2500 lb, Swivel Lock Type 4-Position Directional Lock, Wheel Dia. 6 in, Wheel Width 2 in, Wheel/Tread Material Steel, Wheel Core Material Steel, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Total Lock, Tread Shape Standard
