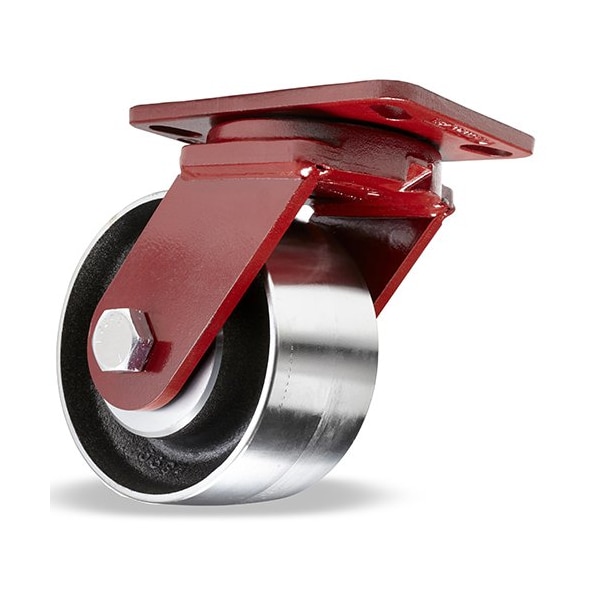

Plate Caster, Kingpinless Swivel, Forged Steel, 6 in, 3200 lb

  • Mfr # S-ZFFM-63FSB
  • Zoro # G0489365
product price:
$
369.99
/ea
Free Shipping & Returns

Key Features

Mounting Bolt Dia.
1/2 in
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Extended Lead
No
Thread Guards
No
Standards
ANSI ICWM
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
S-ZFFM-63FSB
Zoro #
G0489365
UPC #
-
Country of Origin
United States

Dimensions

Mounting Bolt Dia.
1/2 in
Overall Height
7-1/2"
Wheel Width
3 in
Wheel Dia.
6 in
Mounting Plate Size
4 1/2 in x 6 1/2 in
Mounting Height
7 1/2 in
Mounting Plate Thickness
3/8 in
Mounting Plate Length
6 1/2 in
Inside Slot Spacing - Length
4.938 in
Inside Slot Spacing - Width
2.438 in
Outside Slot Spacing - Width
3.375 in
For Axle Dia.
3/4 in
Overall Wheel Width
3 in
Mounting Plate Width
4 1/2 in
Outside Slot Spacing - Length
5.25 in
Fits Chest Size
Sealed Swivel Bearing

Details

Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Extended Lead
No
Thread Guards
No
Standards
ANSI ICWM
Frame Finish
Enamel
Wheel Color
Silver
Features
Sealed Swivel Bearing
Non-Marking
Yes
Replacement Wheel
4DU74
Load Rating
3200 lb
Caster Frame Material
Steel
Includes
Spanner Bushing
Caster Plate Hole Pattern
A
Core Color
Silver
Number of Wheels
1
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Caster Sub-Type
Swivel
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Caster Brake Included
No
Caster Temp. Range Available
Yes
Item
Plate Caster
Caster Brake Type
No Brake
Tread Shape
Standard
Wheel/Tread Hardness Rating
Extra Hard
Number of Mounting Holes
4
Includes Thread Guards
No
Load Rating Range
3000 to 5999 lb
Swivel Raceway Type
Single Ball
Wheel Bearing Type
Ball
Swivel Construction
Kingpinless
Swivel Lock Type
No Lock Included
Wheel Core Material
Steel
Wheel/Tread Material
Steel
Wheel/Tread Color
Silver
Wheel Type
Flat-Free
Load Capacity - Maximum
3,200 lb
Mounting Plate Shape
Rectangle
For Surface Type
Concrete
Wheel Core Type
Solid
Wheel Hardness Rating
170 BHN
Mounting Hole Type
Slot
Operating Temperature - Maximum
200 Degrees F
Operating Temperature Range
-40 Degrees to 200 Degrees F
Operating Temperature - Minimum
-40 Degrees F

Description

Swivel, Plate Caster, Load Rating 3200 lb, Swivel Lock Type No Lock Included, Wheel Dia. 6 in, Wheel Width 3 in, Wheel/Tread Material Steel, Wheel Core Material Steel, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
