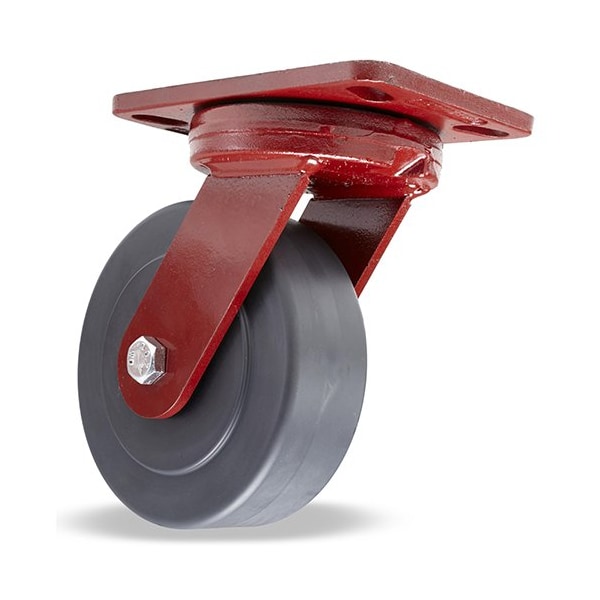

Plate Caster, Kingpinless Swivel, Nylon, 6 in, 2300 lb

  • Mfr # S-ZFHS-6NYB-4SL-FB
  • Zoro # G0383419
product price:
$
357.99
/ea
Free Shipping & Returns

Key Features

Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Standards
ANSI ICWM
Caster Brake Included
Yes
Caster Brake Type
Total Lock
Wheel Color
Black
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
S-ZFHS-6NYB-4SL-FB
Zoro #
G0383419
UPC #
-
Country of Origin
United States
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Standards
ANSI ICWM
Caster Brake Included
Yes
Caster Brake Type
Total Lock
Wheel Color
Black
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Thread Guards
No
Replacement Wheel
23EM56
Core Color
Black
Features
Sealed Swivel Bearing
Number of Wheels
1
Caster Sub-Type
Swivel
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Frame Finish
Enamel
Item
Plate Caster
Includes
Brake
Caster Plate Hole Pattern
A
Extended Lead
No
Caster Frame Material
Steel
Non-Marking
Yes
Load Rating
2000 lb
Caster Temp. Range Available
Yes
Wheel Bearing Type
Ball
Wheel/Tread Hardness Rating
Hard
Number of Mounting Holes
4
Swivel Raceway Type
Single Ball
Tread Shape
Standard
Swivel Construction
Kingpinless
Load Rating Range
1000 to 2999 lb
Swivel Lock Type
4-Position Directional Lock
Wheel Core Material
Nylon
Includes Thread Guards
No
Wheel/Tread Material
Nylon
Wheel/Tread Color
Black
Wheel Type
Flat-Free
Wheel Hardness Rating
85 Shore D
Load Capacity - Maximum
2,000 lb
Mounting Plate Shape
Rectangle
Wheel Core Type
Solid
Brake Location
Right Side
For Surface Type
Concrete
Mounting Hole Type
Slot
Operating Temperature - Maximum
200 Degrees F
Operating Temperature - Minimum
-30 Degrees F
Operating Temperature Range
-30 Degrees to 200 Degrees F

Dimensions

Wheel Dia.
6 in
Overall Height
7-3/4"
Wheel Width
2 in
Mounting Bolt Dia.
1/2 in
Mounting Height
7 3/4 in
Mounting Plate Size
4 1/2 in x 6 1/2 in
Mounting Plate Width
4 1/2 in
Inside Slot Spacing - Length
4.938 in
For Axle Dia.
1/2 in
Mounting Plate Length
6 1/2 in
Outside Slot Spacing - Width
3.375 in
Mounting Plate Thickness
5/16 in
Inside Slot Spacing - Width
2.438 in
Overall Wheel Width
2 in
Outside Slot Spacing - Length
5.25 in
Fits Chest Size
Sealed Swivel Bearing

Description

Swivel, Plate Caster, Load Rating 2000 lb, Swivel Lock Type 4-Position Directional Lock, Wheel Dia. 6 in, Wheel Width 2 in, Wheel/Tread Material Nylon, Wheel Core Material Nylon, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Total Lock, Tread Shape Standard
