  6. Plate Caster, Kingpinless Swivel, Poly, 8 in, 2500 lb

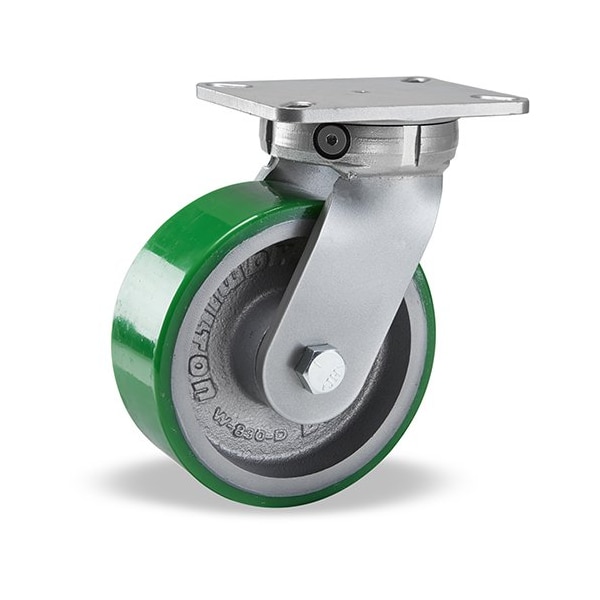

Hamilton Plate Caster, Kingpinless Swivel, Poly, 8 in, 2500 lb S-SEC-83DB - main

Plate Caster, Kingpinless Swivel, Poly, 8 in, 2500 lb

  • Mfr # S-SEC-83DB

  • Zoro # G0248552

product price:  $400.99
/ea
Free Shipping & Returns

Key Features

Standards
ANSI ICWM
Mounting Bolt Dia.
1/2 in
Core Color
Gray
Load Rating
2500 lb
Replacement Wheel
4DU71
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
S-SEC-83DB
Zoro #
G0248552
UPC #
-
Country of Origin
United States

Dimensions

Mounting Bolt Dia.
1/2 in
Stem Dia.
No Stem
Wheel Width
3 in
Wheel Dia.
8 in
Overall Height
10-1/2in
Mounting Plate Size
5 1/4 in x 7 1/4 in
Mounting Height
10 1/2 in
Inside Slot Spacing - Width
3.375 in
Outside Slot Spacing - Width
4.125 in
Mounting Plate Length
7 1/4 in
Overall Wheel Width
3 in
Outside Slot Spacing - Length
6.125 in
Mounting Plate Thickness
3/8 in
For Axle Dia.
3/4 in
Mounting Plate Width
5 1/4 in
Inside Slot Spacing - Length
5.25 in

Details

Standards
ANSI ICWM
Core Color
Gray
Load Rating
2500 lb
Replacement Wheel
4DU71
Frame Finish
Enamel
Wheel Color
Green
Thread Guards
No
Non-Marking
Yes
Number of Wheels
1
Caster Frame Material
Steel
Caster Temp. Range Available
Yes
Caster Brake Included
No
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Features
Floor Protective
Caster Stem Type
No Stem/Plate Included
Caster Plate Hole Pattern
A
Caster Sub-Type
Swivel
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Includes
Spanner Bushing
Extended Lead
No
Item
Plate Caster
Inside Bolt Hole Spacing
4-1/8 in x 6-1/8 in
Caster Brake Type
No Brake
Wheel Core Material
Iron
Swivel Construction
Kingpinless
Wheel Bearing Type
Ball
Swivel Raceway Type
Single Ball
Swivel Lock Type
No Lock Included
Number of Mounting Holes
4
Load Rating Range
1000 to 2999 lb
Wheel/Tread Hardness Rating
Firm
Includes Thread Guards
No
Tread Shape
Standard
Wheel/Tread Material
Polyurethane
Wheel/Tread Color
Green
Wheel Type
Flat-Free
Wheel Hardness Rating
95 Shore A
Load Capacity - Maximum
2,500 lb
Wheel Core Type
Solid
Mounting Hole Type
Slot
Mounting Plate Shape
Rectangle
For Surface Type
Concrete
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature Range
-40 Degrees to 200 Degrees F
Operating Temperature - Maximum
200 Degrees F

Description

Swivel, Plate Caster, Load Rating 2500 lb, Swivel Lock Type No Lock Included, Wheel Dia. 8 in, Wheel Width 3 in, Wheel/Tread Material Polyurethane, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
