  6. Plate Caster, Rigid, Polyurethane, 7 1/2"H

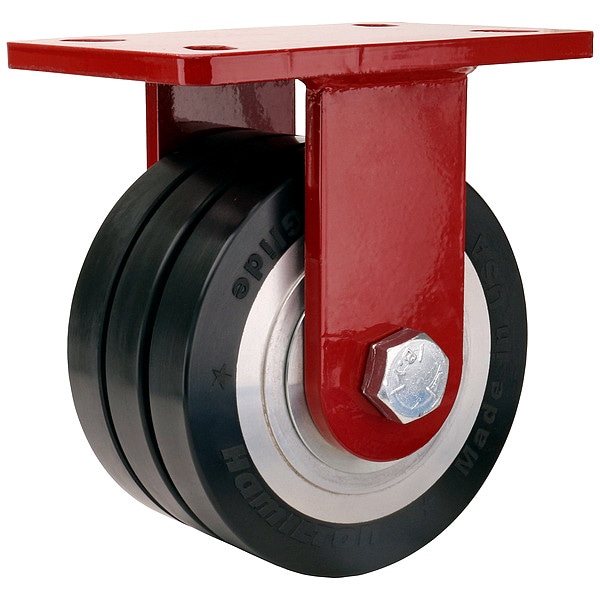

Hamilton Plate Caster, Rigid, Polyurethane, 7 1/2"H R-FM-63SWF70D - main

Plate Caster, Rigid, Polyurethane, 7 1/2"H

  • Mfr # R-FM-63SWF70D

  • Zoro # G606284085

product price:  $361.99
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Rigid
System of Measurement
Inch
Caster Brake Type
No Brake
Wheel Dia.
6 in
Mounting Height
7 1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
R-FM-63SWF70D
Zoro #
G606284085
UPC #
-
Country of Origin
United States

Dimensions

Wheel Dia.
6 in
Mounting Height
7 1/2 in
Mounting Plate Size
5 in x 7 in
Mounting Plate Thickness
3/8 in
Mounting Bolt Dia.
1/2 in
Wheel Width
1 in
Mounting Plate Width
4 1/2 in
Inside Slot Spacing - Length
4.938 in
For Axle Dia.
3/4 in
Inside Slot Spacing - Width
2.438 in
Overall Wheel Width
3 in
Mounting Plate Length
6 1/2 in
Outside Slot Spacing - Length
5.25 in
Outside Slot Spacing - Width
3.375 in

Details

Item
Plate Caster
Caster Sub-Type
Rigid
System of Measurement
Inch
Caster Brake Type
No Brake
Load Rating
2,200 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Ball
Wheel/Tread Color
Black
Wheel Hardness Rating
70 Shore D
Number of Mounting Holes
4
Tread Shape
Standard
Core Color
Silver
Non-Marking
No
Number of Wheels
3
Outside Bolt Hole Spacing
4-1/2 x 6-1/2
Caster Plate Hole Pattern
A
Wheel/Tread Hardness Rating
Extra Hard
Wheel Type
UltraGlide(TM) XC
Caster Frame Material
Steel
Frame Finish
Powder Coated
Inside Bolt Hole Spacing
9/16 in
Replacement Wheel
W­630­SWF70D­3/4
Wheel Core Material
Aluminum
Includes Thread Guards
No
Load Rating Range
1000 to 2999 lb
Includes Mounting Fasteners
Yes
Frame Color
Red
With Toe Plate
No
Wheel/Tread Material
Polyurethane
Swivel Bearing Seal Type
Sealed
Wheel Bearing Material
Steel
Load Capacity - Maximum
2,200 lb
Compatible With
W­630­SWF70D­3/4
Mounting Plate Shape
Rectangle
Wheel Core Type
Solid
Mounting Hole Type
Slot
For Surface Type
Concrete

Description

Rigid, Plate Caster, Load Rating 2,200 lb, Wheel Dia. 6 in, Wheel Width 1 in, Wheel/Tread Material Polyurethane, Wheel Core Material Aluminum, Non-Marking No, Number of Wheels 3, Caster Brake Type No Brake, Tread Shape Standard
