Shop HAMILTON

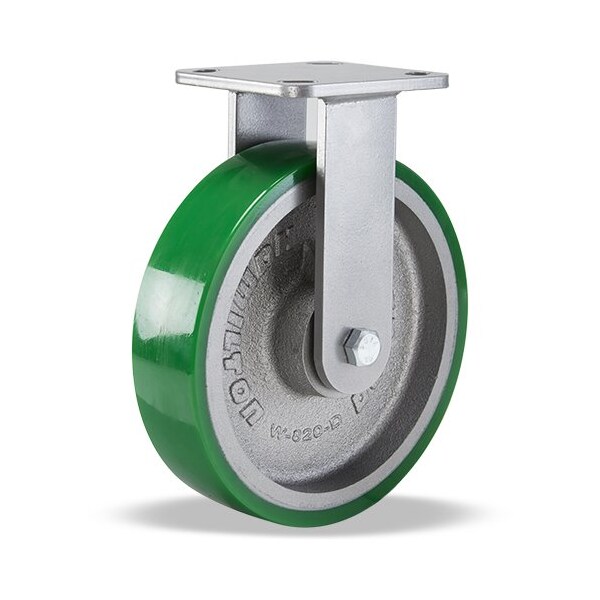

Plate Caster, Rigid, Polyurethane, 9 1/2"H

  • Mfr # R-WH-8DB

  • Zoro # G1609045

product price:
$
138.99
/ea
Free Shipping & Returns

Key Features

Load Rating
1500 lb
Non-Marking
Yes
Overall Height
9-1/2"
Thread Guards
No
Caster Temp. Range Available
Yes
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
R-WH-8DB
Zoro #
G1609045
UPC #
-
Country of Origin
United States
Load Rating
1500 lb
Non-Marking
Yes
Thread Guards
No
Caster Temp. Range Available
Yes
Caster Brake Included
No
Caster Frame Material
Steel
Frame Finish
Enamel
Caster Plate Hole Pattern
B
Item
Plate Caster
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Number of Wheels
1
Includes
Spanner Bushing
Features
Floor Protective
Wheel Color
Green
Core Color
Gray
Inside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Standards
ANSI ICWM
Caster Sub-Type
Rigid
Outside Bolt Hole Spacing
3 in x 3 in
Replacement Wheel
4DU70
Extended Lead
No
Includes Thread Guards
No
Caster Brake Type
No Brake
Tread Shape
Standard
Wheel/Tread Hardness Rating
Firm
Load Rating Range
1000 to 2999 lb
Number of Mounting Holes
4
Swivel Construction
Kingpin
Wheel Core Material
Iron
Wheel Bearing Type
Ball
Swivel Lock Type
No Lock Included
Wheel/Tread Material
Polyurethane
Wheel/Tread Color
Green
Wheel Type
Flat-Free
System of Measurement
Inch
Load Capacity - Maximum
1,500 lb
Wheel Hardness Rating
95 Shore A
Mounting Plate Shape
Rectangle
Wheel Core Type
Solid
Mounting Hole Type
Slot
For Surface Type
Concrete
Operating Temperature - Maximum
200 Degrees F
Operating Temperature Range
-40 Degrees to 200 Degrees F
Operating Temperature - Minimum
-40 Degrees F

Description

Rigid, Plate Caster, Load Rating 1500 lb, Swivel Lock Type No Lock Included, Wheel Dia. 8 in, Wheel Width 2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
