  6. Plate Caster, Rigid, Steel, 15 1/2"H

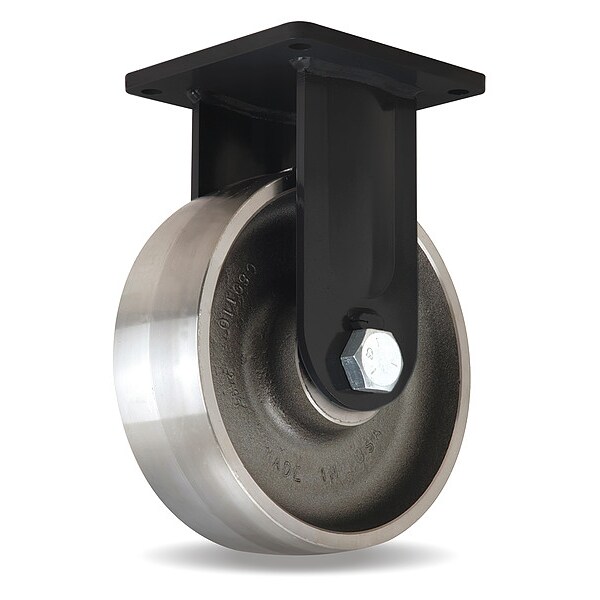

Hamilton Plate Caster, Rigid, Steel, 15 1/2"H R-MDK-124HFSB - main

Plate Caster, Rigid, Steel, 15 1/2"H

  • Mfr # R-MDK-124HFSB

  • Zoro # G9071490

product price:  $749.99
/ea
Free Shipping & Returns

Key Features

Wheel/Tread Material
Steel
Caster Brake Type
No Brake
Wheel Width
4 in
Mounting Height
15 1/2 in
Load Rating
6250 lb
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
R-MDK-124HFSB
Zoro #
G9071490
UPC #
-
Country of Origin
United States

Dimensions

Wheel Width
4 in
Mounting Height
15 1/2 in
Mounting Plate Size
8 1/2 in x 8 1/2 in
Mounting Plate Thickness
5/8 in
Mounting Bolt Dia.
5/8 in
Swivel Radius
None- Rigid Caster
Wheel Dia.
12 in
Overall Wheel Width
4 in
For Axle Dia.
1 1/4 in
Bolt Hole Spacing - Length
7 in
Mounting Plate Length
8 1/2 in
Bolt Hole Spacing - Width
7 in
Mounting Plate Width
8 1/2 in

Details

Item
Plate Caster
Caster Sub-Type
Rigid
Wheel/Tread Material
Steel
Caster Brake Type
No Brake
Load Rating
6250 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Ball
Wheel/Tread Color
Silver
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Silver
Non-Marking
No
Number of Wheels
1
Outside Bolt Hole Spacing
7 in x 7 in
Inside Bolt Hole Spacing
7 in x 7 in
Caster Plate Hole Pattern
D
Operating Temperature Range
-50 Degrees to 200 Degrees F
Tread
Flat
With Toe Plate
No
Series
MagmaMax
Leveling Caster
No
NSF Listed
No
Includes Mounting Fasteners
No
Frame Finish
Enamel
Wheel Core Type
Solid
Swivel Raceway Type
Roller
Frame Color
Black
Tire Style
Tubeless
Wheel/Tread Hardness Rating
Extra Hard
Swivel Lead
1 3/4 in
Includes Thread Guards
No
Load Rating Range
6000 lb and Greater
For Surface Type
Concrete
Standards
ANSI ICWM
ESD Conductive
Yes
Wheel Type
Flat-Free
Wheel Core Material
Steel
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Includes Spanner Bushing
Yes
Wheel Bearing Material
Stainless Steel
Swivel Bearing Seal Type
Sealed
Swivel Lock Type
No Lock Included
Frame Construction
Forged
Features
Durable, High Heat, Quiet Operation, Reliable
Load Capacity - Maximum
6,250 lb
Mounting Hole Type
Hole
Mounting Plate Shape
Square
Wheel Hardness Rating
170 BHN

Description

Rigid, Plate Caster, Load Rating 6250 lb, Swivel Lock Type No Lock Included, Wheel Dia. 12 in, Wheel Width 4 in, Wheel/Tread Material Steel, Wheel Core Material Steel, Non-Marking No, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
