  11. Plate Caster, Swivel, 8000 lb., 8" Dia.

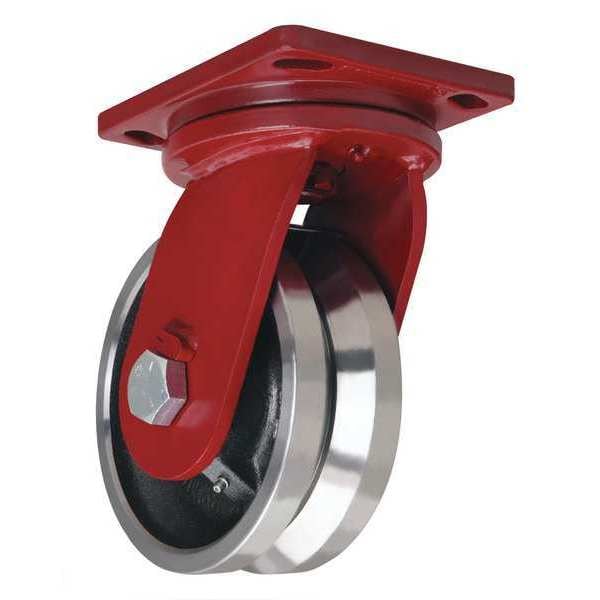

Hamilton Plate Caster, Swivel, 8000 lb., 8" Dia. S-EPSD-84FVT - main

Plate Caster, Swivel, 8000 lb., 8" Dia.

  • Mfr # S-EPSD-84FVT

  • Zoro # G7426198

product price: $685.99
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Swivel
Wheel/Tread Material
Steel
Caster Brake Type
No Brake
Wheel Dia.
8 in
Wheel Width
4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
S-EPSD-84FVT
Zoro #
G7426198
UPC #
-
Country of Origin
United States

Dimensions

Wheel Dia.
8 in
Wheel Width
4 in
Mounting Height
10 1/2 in
Mounting Plate Size
6-1/2 in x 7-1/2 in
Mounting Plate Thickness
1/2 in
Mounting Bolt Dia.
1/2 in
Overall Height
10-1/2in
Swivel Radius
6 7/16 in
Stem Dia.
No Stem
Recommended Track Size
2 in x 2 in
Inside Slot Spacing - Length
5.75 in
Outside Slot Spacing - Width
5.125 in
Overall Wheel Width
4 in
Mounting Plate Width
6 1/2 in
Inside Slot Spacing - Width
3.875 in
Mounting Plate Length
7 1/2 in
Outside Slot Spacing - Length
6.25 in
For Axle Dia.
1 in

Details

Item
Plate Caster
Caster Sub-Type
Swivel
Wheel/Tread Material
Steel
Caster Brake Type
No Brake
Load Rating
10,000 lb
Wheel Bearing Type
Roller
Wheel Hardness Rating
170 BHN
Number of Mounting Holes
4
Tread Shape
V-Groove
Caster Frame Material
Steel
Core Color
Silver
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
4-1/8 in x 6-1/8 in
Inside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Caster Plate Hole Pattern
B
Wheel Color
Silver
Thread Guards
No
Caster Temp. Range Available
Yes
Standards
ANSI ICWM
Caster Stem Type
No Stem/Plate Included
Replacement Wheel
Mfr. No. W-840-FVT-1MC
Features
Corrosion Resistant
Application
Commercial, General Purpose, Industrial, Institutional
Caster Brake Included
No
Frame Finish
Enamel
Extended Lead
No
Swivel Raceway Type
Roller
Includes Thread Guards
No
Wheel Core Material
Steel
Swivel Lock Type
No Lock Included
Swivel Construction
Kingpin
Load Rating Range
6000 lb and Greater
Wheel/Tread Hardness Rating
Extra Hard
Wheel Type
Flat-Free
Caster Features
Corrosion-Resistant
Load Capacity - Maximum
10,000 lb
Compatible With
W-840-FVT-1MC
Wheel Core Type
Solid
Mounting Plate Shape
Rectangle
For Surface Type
Concrete
Mounting Hole Type
Slot
Operating Temperature Range
-50 Degrees to 350 Degrees F
Operating Temperature - Minimum
-50 Degrees F
Operating Temperature - Maximum
350 Degrees F

Description

Swivel, Plate Caster, Load Rating 10,000 lb, Swivel Lock Type No Lock Included, Wheel Dia. 8 in, Wheel Width 4 in, Wheel/Tread Material Steel, Wheel Core Material Steel, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape V-Groove
