Shop HAMILTON

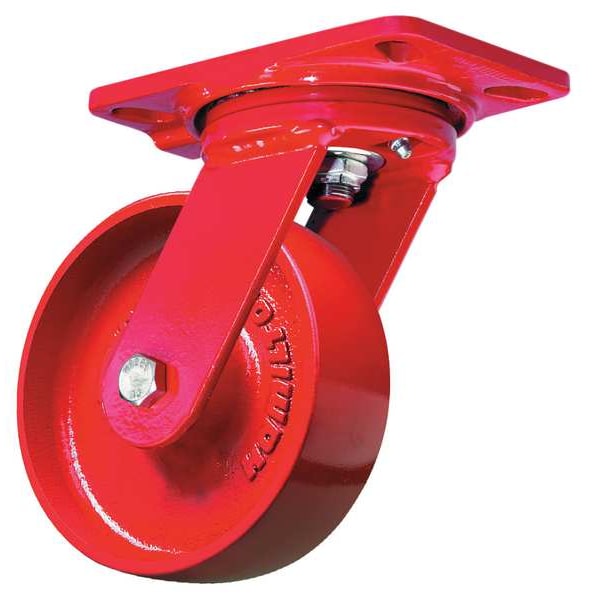

Plate Caster, Swivel, Cast Iron, 4 in., 1000 lb, A

  • Mfr # S-HS-4MB

  • Zoro # G4334784

product price:
$
142.99
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Swivel
Thread Guards
No
Caster Plate Hole Pattern
A
Non-Marking
Yes
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
S-HS-4MB
Zoro #
G4334784
UPC #
-
Country of Origin
United States
Caster Sub-Type
Swivel
Thread Guards
No
Caster Plate Hole Pattern
A
Non-Marking
Yes
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Load Rating
1000 lb
Caster Stem Type
No Stem/Plate Included
Core Color
Red
Replacement Wheel
4DU77
Wheel Color
Red
Includes
Spanner Bushing
Number of Wheels
1
Caster Frame Material
Steel
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Extended Lead
No
Standards
ANSI ICWM
Frame Finish
Enamel
Caster Brake Included
No
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Caster Temp. Range Available
Yes
Item
Plate Caster
Caster Brake Type
No Brake
System of Measurement
Inch
Wheel/Tread Material
Iron
Swivel Lock Type
No Lock Included
Wheel Bearing Type
Ball
Load Rating Range
1000 to 2999 lb
Wheel Core Material
Iron
Tread Shape
Standard
Swivel Construction
Kingpin
Includes Thread Guards
No
Swivel Raceway Type
Single Ball
Number of Mounting Holes
4
Wheel/Tread Hardness Rating
Extra Hard
Wheel/Tread Color
Red
Wheel Type
Flat-Free
Load Capacity - Maximum
1,000 lb
Mounting Plate Shape
Rectangle
Wheel Hardness Rating
170 BHN
For Surface Type
Concrete
Wheel Core Type
Solid
Mounting Hole Type
Slot
Operating Temperature - Maximum
200 Degrees F
Operating Temperature Range
-40 Degrees to 200 Degrees F
Operating Temperature - Minimum
-40 Degrees F

Description

Swivel, Plate Caster, Load Rating 1000 lb, Swivel Lock Type No Lock Included, Wheel Dia. 4 in, Wheel Width 2 in, Wheel/Tread Material Iron, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
