Shop HAMILTON

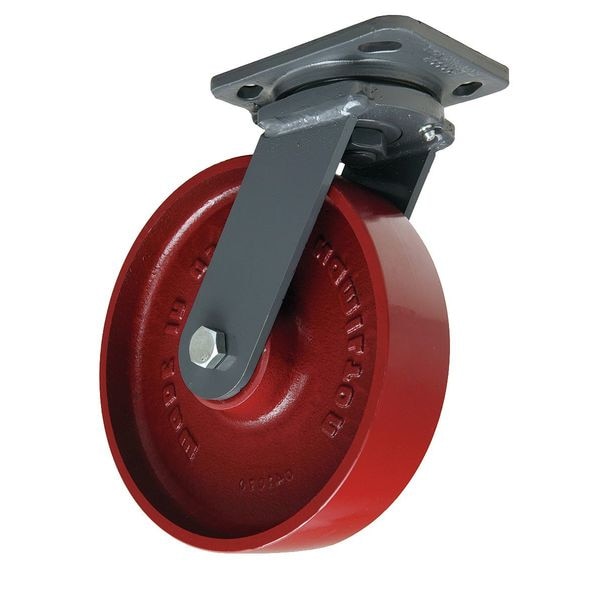

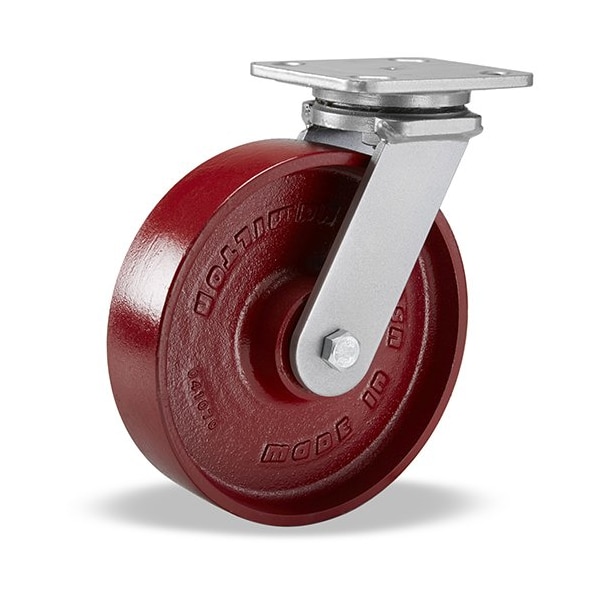

Plate Caster, Swivel, Cast Iron, 8 in., 1500 lb., B

  • Mfr # S-WH-8MB

  • Zoro # G2390911

product price:
$
159.99
/ea
Free Shipping & Returns

Key Features

Caster Frame Material
Steel
Wheel Width
2 in
Caster Plate Hole Pattern
B
Includes
Spanner Bushing
Number of Wheels
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
S-WH-8MB
Zoro #
G2390911
UPC #
-
Country of Origin
United States

Dimensions

Wheel Width
2 in
Wheel Dia.
8 in
Stem Dia.
No Stem
Mounting Bolt Dia.
1/2 in
Overall Height
9-1/2"
Mounting Height
9 1/2 in
Mounting Plate Size
4 in x 5 in
Inside Slot Spacing - Length
3 in
Outside Slot Spacing - Length
3.625 in
Outside Slot Spacing - Width
3 in
For Axle Dia.
1/2 in
Mounting Plate Length
5 in
Inside Slot Spacing - Width
2.625 in
Overall Wheel Width
2 in
Mounting Plate Thickness
1/4 in
Mounting Plate Width
4 in

Details

Caster Frame Material
Steel
Item
Plate Caster
Caster Plate Hole Pattern
B
Includes
Spanner Bushing
Number of Wheels
1
Extended Lead
No
Caster Sub-Type
Swivel
Frame Finish
Enamel
Caster Temp. Range Available
Yes
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Non-Marking
Yes
Standards
ANSI ICWM
Replacement Wheel
4DU79
Caster Stem Type
No Stem/Plate Included
Inside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Core Color
Red
Caster Brake Included
No
Thread Guards
No
Load Rating
2000 lb
Outside Bolt Hole Spacing
3 in x 3 in
Wheel Color
Red
Caster Brake Type
No Brake
System of Measurement
Inch
Wheel Core Material
Iron
Wheel/Tread Hardness Rating
Extra Hard
Includes Thread Guards
No
Wheel Bearing Type
Ball
Number of Mounting Holes
4
Load Rating Range
1000 to 2999 lb
Swivel Construction
Kingpin
Swivel Raceway Type
Single Ball
Swivel Lock Type
No Lock Included
Wheel/Tread Material
Iron
Tread Shape
Standard
Wheel/Tread Color
Red
Wheel Type
Flat-Free
Load Capacity - Maximum
2,000 lb
Mounting Hole Type
Slot
Wheel Core Type
Solid
For Surface Type
Concrete
Wheel Hardness Rating
170 BHN
Mounting Plate Shape
Rectangle
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature - Maximum
200 Degrees F
Operating Temperature Range
-40 Degrees to 200 Degrees F

Description

Swivel, Plate Caster, Load Rating 2000 lb, Swivel Lock Type No Lock Included, Wheel Dia. 8 in, Wheel Width 2 in, Wheel/Tread Material Iron, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
