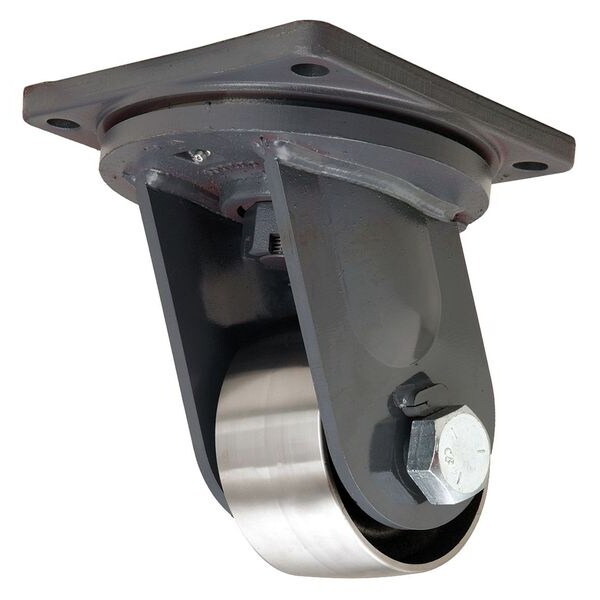

Hamilton Plate Caster, Swivel, Forged Steel, 6 in, 12,000 lb, D S-MD-63FST - main

Plate Caster, Swivel, Forged Steel, 6 in, 12,000 lb, D

  • Mfr # S-MD-63FST

  • Zoro # G7597563

product price:  $677.99
/ea
Free Shipping & Returns

Key Features

Outside Bolt Hole Spacing
7 in x 7 in
Standards
ANSI ICWM
Wheel Dia.
6 in
Mounting Bolt Dia.
1/2 in
Caster Brake Included
No
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
S-MD-63FST
Zoro #
G7597563
UPC #
-
Country of Origin
United States

Dimensions

Wheel Dia.
6 in
Mounting Bolt Dia.
1/2 in
Stem Dia.
No Stem
Overall Height
10"
Wheel Width
3 in
Mounting Height
10 in
Mounting Plate Size
8 1/2 in x 8 1/2 in
Bolt Hole Spacing - Width
7 in
Mounting Plate Length
8 1/2 in
Mounting Plate Width
8 1/2 in
For Axle Dia.
1 1/4 in
Bolt Hole Spacing - Length
7 in
Overall Wheel Width
3 in
Mounting Plate Thickness
5/8 in

Details

Outside Bolt Hole Spacing
7 in x 7 in
Standards
ANSI ICWM
Caster Brake Included
No
Caster Stem Type
No Stem/Plate Included
Caster Plate Hole Pattern
D
Load Rating
12,000 lb
Wheel Color
Silver
Frame Finish
Enamel
Caster Frame Material
Steel
Caster Temp. Range Available
Yes
Core Color
Silver
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Replacement Wheel
5VJ75
Number of Wheels
1
Non-Marking
Yes
Caster Sub-Type
Swivel
Inside Bolt Hole Spacing
7 in x 7 in
Includes
Spanner Bushing
Thread Guards
No
Extended Lead
No
Item
Plate Caster
System of Measurement
Inch
Caster Brake Type
No Brake
Wheel/Tread Hardness Rating
Extra Hard
Swivel Raceway Type
Roller
Swivel Lock Type
No Lock Included
Wheel Bearing Type
Roller
Load Rating Range
6000 lb and Greater
Number of Mounting Holes
4
Includes Thread Guards
No
Wheel Core Material
Steel
Swivel Construction
Kingpin
Tread Shape
Standard
Wheel/Tread Material
Steel
Wheel/Tread Color
Silver
Wheel Type
Flat-Free
Load Capacity - Maximum
12,000 lb
Mounting Hole Type
Hole
For Surface Type
Concrete
Wheel Core Type
Solid
Mounting Plate Shape
Square
Wheel Hardness Rating
170 BHN
Operating Temperature - Maximum
250 Degrees F
Operating Temperature Range
-40 Degrees to 250 Degrees F
Operating Temperature - Minimum
-40 Degrees F

Description

Swivel, Plate Caster, Load Rating 12,000 lb, Swivel Lock Type No Lock Included, Wheel Dia. 6 in, Wheel Width 3 in, Wheel/Tread Material Steel, Wheel Core Material Steel, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
