Shop HAMILTON

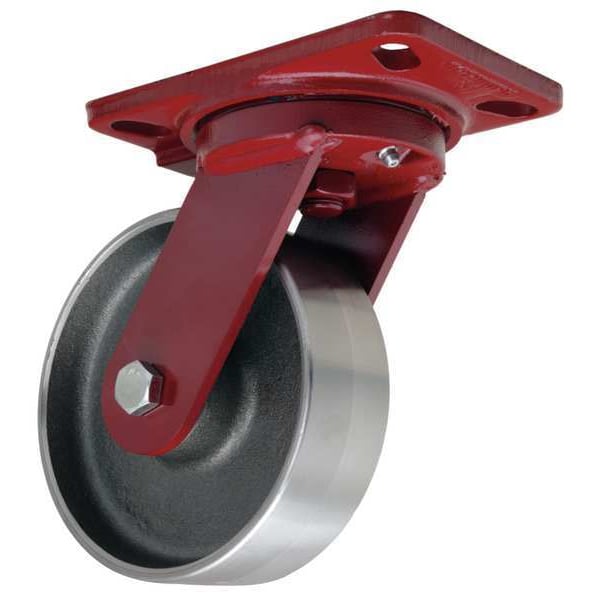

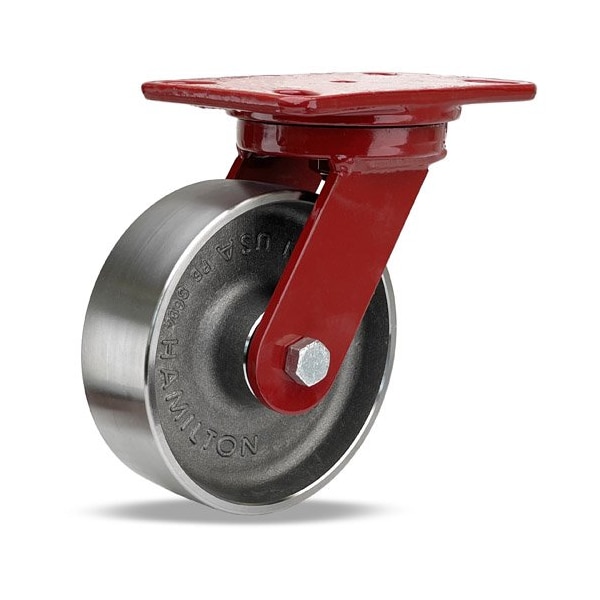

Plate Caster, Swivel, Forged Steel, 6 in, 2000 lb

  • Mfr # S-HS-6FSB-4SL-FB

  • Zoro # G4334802

product price:
$
193.99
/ea
Free Shipping & Returns

Key Features

Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Stem Dia.
No Stem
Number of Wheels
1
Non-Marking
Yes
Load Rating
2000 lb
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
S-HS-6FSB-4SL-FB
Zoro #
G4334802
UPC #
-
Country of Origin
United States

Dimensions

Stem Dia.
No Stem
Overall Height
7-3/4"
Wheel Dia.
6 in
Mounting Bolt Dia.
1/2 in
Wheel Width
2 in
Mounting Height
7 3/4 in
Mounting Plate Size
4 1/2 in x 6 1/2 in
Mounting Plate Thickness
5/16in

Details

Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Number of Wheels
1
Item
Plate Caster
Non-Marking
Yes
Load Rating
2000 lb
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Caster Brake Type
Total Lock
Extended Lead
No
Caster Temp. Range Available
Yes
Caster Sub-Type
Swivel
Standards
ANSI ICWM
Frame Finish
Enamel
Caster Stem Type
No Stem/Plate Included
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Caster Plate Hole Pattern
A
Core Color
Silver
Caster Brake Included
Yes
Includes
Brake
Thread Guards
No
Wheel Color
Silver
Replacement Wheel
4DU73
Caster Frame Material
Steel
System of Measurement
Inch
Swivel Construction
Kingpin
Swivel Raceway Type
Single Ball
Wheel/Tread Hardness Rating
Extra Hard
Swivel Lock Type
4-Position Directional Lock
Includes Thread Guards
No
Tread Shape
Standard
Wheel Bearing Type
Ball
Wheel Core Material
Steel
Number of Mounting Holes
4
Load Rating Range
1000 to 2999 lb
Wheel/Tread Material
Steel
Wheel/Tread Color
Silver
Load Capacity - Maximum
2,000 lb
Wheel Hardness Rating
179 BHN
Operating Temperature - Maximum
200 Degrees F
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature Range
-40 Degrees to 200 Degrees F

Description

Swivel, Plate Caster, Load Rating 2000 lb, Swivel Lock Type 4-Position Directional Lock, Wheel Dia. 6 in, Wheel Width 2 in, Wheel/Tread Material Steel, Wheel Core Material Steel, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Total Lock, Tread Shape Standard
