  11. Plate Caster, Swivel, Forged Steel, 6 in, 4000 lb

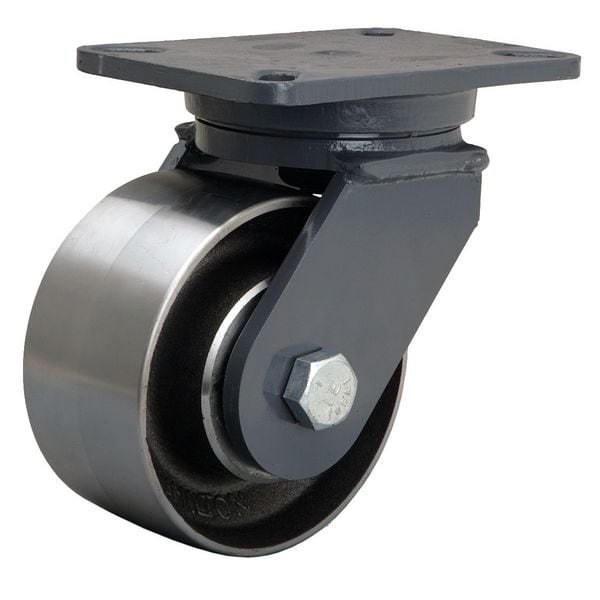

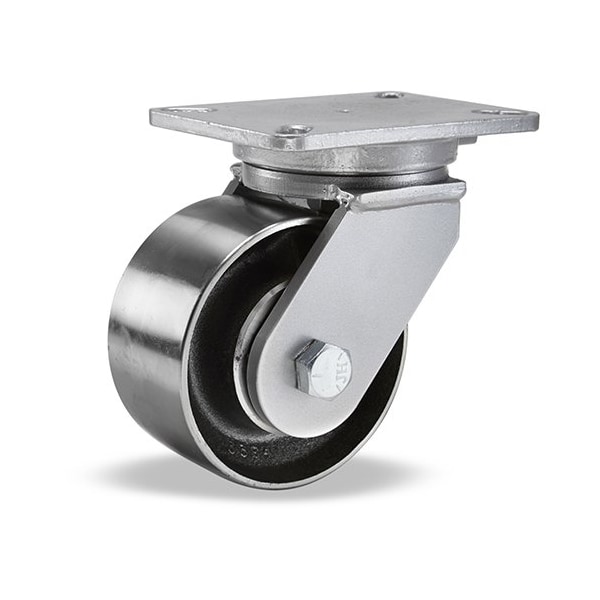

Hamilton Plate Caster, Swivel, Forged Steel, 6 in, 4000 lb S-CH-63FSB - main

Plate Caster, Swivel, Forged Steel, 6 in, 4000 lb

  • Mfr # S-CH-63FSB

  • Zoro # G2825426

product price: $289.99
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Steel
Caster Brake Type
No Brake
Wheel Dia.
6 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
S-CH-63FSB
Zoro #
G2825426
UPC #
-
Country of Origin
United States

Dimensions

Wheel Dia.
6 in
Wheel Width
3 in
Mounting Height
8 in
Mounting Plate Size
5 1/4 in x 7 1/4 in
Mounting Plate Thickness
3/8 in
Mounting Bolt Dia.
1/2 in
Stem Dia.
No Stem
Overall Height
8in
Outside Slot Spacing - Length
6.125 in
Outside Slot Spacing - Width
4.125 in
Inside Slot Spacing - Length
5.25 in
Inside Slot Spacing - Width
3.375 in
Mounting Plate Length
7 1/4 in
For Axle Dia.
3/4 in
Overall Wheel Width
3 in
Mounting Plate Width
5 1/4 in

Details

Item
Plate Caster
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Steel
Caster Brake Type
No Brake
Load Rating
4000 lb
Wheel Bearing Type
Ball
Wheel/Tread Color
Silver
Wheel Hardness Rating
170 BHN
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Silver
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Inside Bolt Hole Spacing
4-1/8 in x 6-1/8 in
Caster Plate Hole Pattern
A
Wheel Color
Silver
Standards
ANSI ICWM
Thread Guards
No
Extended Lead
No
Replacement Wheel
4DU74
Caster Temp. Range Available
Yes
Caster Brake Included
No
Frame Finish
Enamel
Includes
Spanner Bushing
Caster Stem Type
No Stem/Plate Included
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Wheel/Tread Hardness Rating
Extra Hard
Includes Thread Guards
No
Swivel Lock Type
No Lock Included
Swivel Raceway Type
Single Ball
Load Rating Range
3000 to 5999 lb
Wheel Core Material
Steel
Swivel Construction
Kingpin
Wheel Type
Flat-Free
Load Capacity - Maximum
4,000 lb
For Surface Type
Concrete
Mounting Plate Shape
Rectangle
Mounting Hole Type
Slot
Wheel Core Type
Solid
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature - Maximum
200 Degrees F
Operating Temperature Range
-40 Degrees to 200 Degrees F

Description

Swivel, Plate Caster, Load Rating 4000 lb, Swivel Lock Type No Lock Included, Wheel Dia. 6 in, Wheel Width 3 in, Wheel/Tread Material Steel, Wheel Core Material Steel, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
