Shop HAMILTON

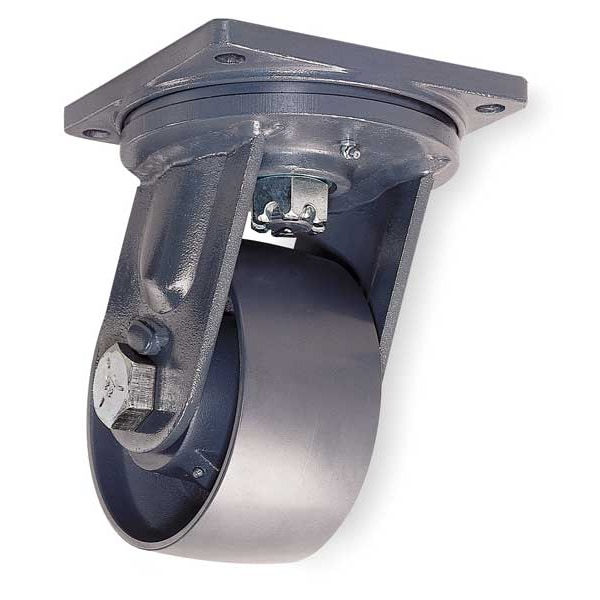

Plate Caster, Swivel, Forged Steel, 8 in, 14,000 lb, D

  • Mfr # S-MD-83FST

  • Zoro # G6499805

product price:
$
625.99
/ea
Free Shipping & Returns

Key Features

Includes
Spanner Bushing
Stem Dia.
No Stem
Caster Plate Hole Pattern
D
Caster Brake Included
No
Caster Sub-Type
Swivel
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
S-MD-83FST
Zoro #
G6499805
UPC #
-
Country of Origin
United States

Dimensions

Stem Dia.
No Stem
Mounting Bolt Dia.
1/2 in
Overall Height
11"
Wheel Dia.
8 in
Wheel Width
3 in
Mounting Plate Size
8 1/2 in x 8 1/2 in
Mounting Height
11 in
Mounting Plate Thickness
5/8 in
Mounting Plate Length
8 1/2 in
For Axle Dia.
1 1/4 in
Bolt Hole Spacing - Width
7 in
Mounting Plate Width
8 1/2 in
Overall Wheel Width
3 in
Bolt Hole Spacing - Length
7 in

Details

Includes
Spanner Bushing
Caster Plate Hole Pattern
D
Caster Brake Included
No
Caster Sub-Type
Swivel
Wheel Color
Silver
Standards
ANSI ICWM
Core Color
Silver
Frame Finish
Enamel
Caster Stem Type
No Stem/Plate Included
Thread Guards
No
Replacement Wheel
23ER51
Load Rating
14,000 lb
Caster Frame Material
Steel
Inside Bolt Hole Spacing
7 in x 7 in
Non-Marking
Yes
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Caster Temp. Range Available
Yes
Outside Bolt Hole Spacing
7 in x 7 in
Number of Wheels
1
Extended Lead
No
Item
Plate Caster
Caster Brake Type
No Brake
System of Measurement
Inch
Includes Thread Guards
No
Number of Mounting Holes
4
Wheel/Tread Hardness Rating
Extra Hard
Wheel Core Material
Steel
Wheel Bearing Type
Roller
Swivel Lock Type
No Lock Included
Swivel Raceway Type
Roller
Load Rating Range
6000 lb and Greater
Swivel Construction
Kingpin
Tread Shape
Standard
Wheel/Tread Material
Steel
Wheel/Tread Color
Silver
Wheel Type
Flat-Free
Load Capacity - Maximum
14,000 lb
Wheel Core Type
Solid
Wheel Hardness Rating
170 BHN
Mounting Hole Type
Hole
For Surface Type
Concrete
Mounting Plate Shape
Square
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature Range
-40 Degrees to 250 Degrees F
Operating Temperature - Maximum
250 Degrees F
Caster Mounting Type
Plate

Description

Swivel, Plate Caster, Load Rating 14,000 lb, Swivel Lock Type No Lock Included, Wheel Dia. 8 in, Wheel Width 3 in, Wheel/Tread Material Steel, Wheel Core Material Steel, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
