  11. Plate Caster, Swivel, Heavy-Duty, 10" Dia.

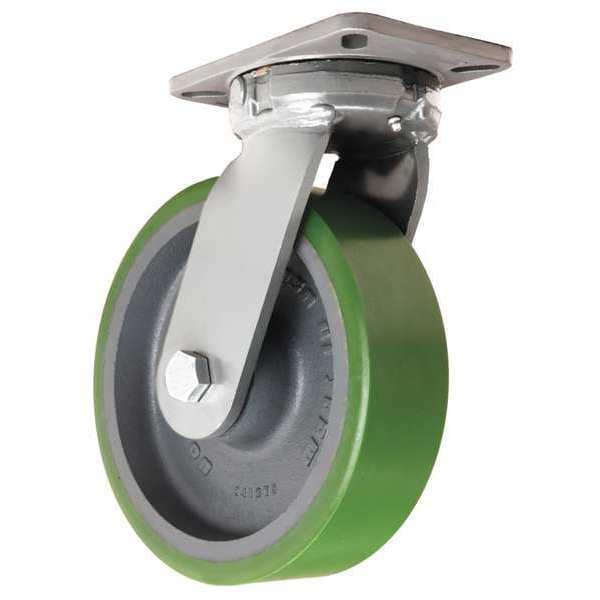

Hamilton Plate Caster, Swivel, Heavy-Duty, 10" Dia. S-SECJ-13DH - main

Plate Caster, Swivel, Heavy-Duty, 10" Dia.

  • Mfr # S-SECJ-13DH

  • Zoro # G7425951

product price: $269.99
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Swivel
Wheel/Tread Material
Polyurethane
Caster Brake Type
No Brake
Wheel Dia.
10 in
Wheel Width
3 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
S-SECJ-13DH
Zoro #
G7425951
UPC #
-
Country of Origin
Multiple

Dimensions

Wheel Dia.
10 in
Wheel Width
3 in
Mounting Height
12 1/2 in
Mounting Plate Size
6 1/2 in x 7 1/2 in
Mounting Plate Thickness
3/8 in
Mounting Bolt Dia.
1/2 in
Swivel Radius
7 1/2 in
Overall Height
12-1/2in
Mounting Plate Length
7 1/4 in
Mounting Plate Width
5 1/4 in
Inside Slot Spacing - Length
5.25 in
Outside Slot Spacing - Width
4.125 in
Inside Slot Spacing - Width
3.375 in
For Axle Dia.
3/4 in
Outside Slot Spacing - Length
6.125 in
Overall Wheel Width
3 in

Details

Item
Plate Caster
Caster Sub-Type
Swivel
Wheel/Tread Material
Polyurethane
Caster Brake Type
No Brake
Load Rating
3000 lb
Wheel Bearing Type
Roller
Wheel/Tread Color
Green
Wheel Hardness Rating
95 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Gray
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Inside Bolt Hole Spacing
4-1/8 in x 6-1/8 in
Caster Plate Hole Pattern
B
Features
Corrosion Resistant
Standards
ANSI ICWM
Replacement Wheel
Mfr. No. W-1030-D-1MC
Application
Commercial, General Purpose, Industrial, Institutional
Frame Finish
Zinc Plated
Thread Guards
No
Extended Lead
No
Caster Brake Included
No
Wheel Color
Green
Includes
Spanner
Caster Temp. Range Available
Yes
Swivel Raceway Type
Roller
Swivel Construction
Kingpinless
Wheel Core Material
Iron
Wheel/Tread Hardness Rating
Firm
Load Rating Range
3000 to 5999 lb
Includes Thread Guards
No
Swivel Lock Type
No Lock Included
Wheel Type
Flat-Free
Caster Features
Corrosion-Resistant
Load Capacity - Maximum
3,000 lb
Compatible With
W-1030-D-1MC
For Surface Type
Concrete
Wheel Core Type
Solid
Mounting Hole Type
Slot
Mounting Plate Shape
Rectangle
Operating Temperature - Maximum
200 Degrees F
Operating Temperature Range
-50 Degrees to 200 Degrees F
Operating Temperature - Minimum
-50 Degrees F

Description

Swivel, Plate Caster, Load Rating 3000 lb, Swivel Lock Type No Lock Included, Wheel Dia. 10 in, Wheel Width 3 in, Wheel/Tread Material Polyurethane, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
