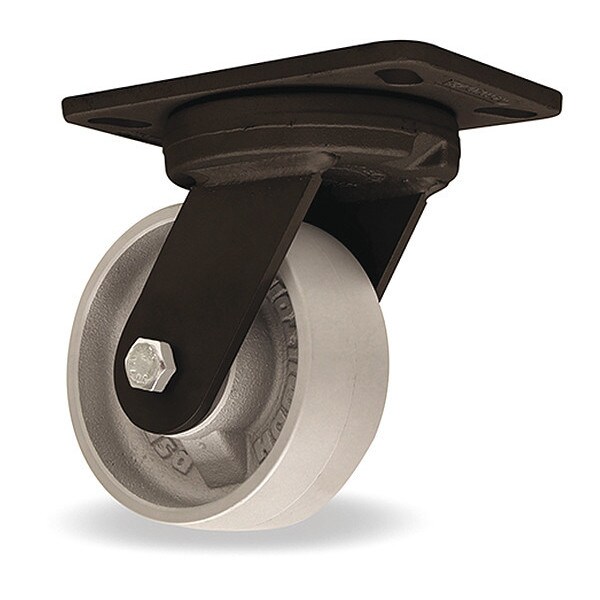

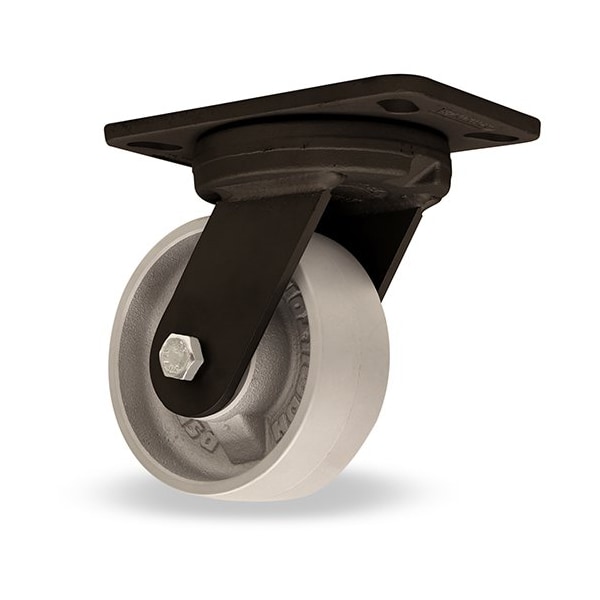

Plate Caster, Swivel, Iron, 7 3/4"H

  • Mfr # S-HSK-6HMB-H4SL-FB
  • Zoro # G9074464
product price:
$
374.99
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Swivel
Wheel/Tread Material
Iron
Wheel Width
2 in
Mounting Height
7 3/4 in
Load Rating
600 lb
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
S-HSK-6HMB-H4SL-FB
Zoro #
G9074464
UPC #
-
Country of Origin
United States
Caster Sub-Type
Swivel
Wheel/Tread Material
Iron
Load Rating
600 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Ball
Wheel/Tread Color
Silver
Wheel Hardness Rating
170 BHN
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Silver
Non-Marking
No
Number of Wheels
1
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Caster Plate Hole Pattern
A
With Toe Plate
No
Tire Style
Tubeless
ESD Conductive
Yes
Wheel Type
Flat-Free
Swivel Lead
2 in
Includes Mounting Fasteners
No
Standards
ANSI ICWM
Swivel Bearing Seal Type
Open
Caster Brake Type
Side Brake
Operating Temperature Range
-50 Degrees to 200 Degrees F
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Item
Plate Caster
Frame Color
Black
Features
Durable, High Heat, Quiet Operation, Reliable
Frame Finish
Enamel
Wheel/Tread Hardness Rating
Extra Hard
Wheel Core Material
Iron
Wheel Bearing Material
Stainless Steel
Tread
Flat
Leveling Caster
No
Wheel Core Type
Solid
Swivel Construction
Kingpinless
Includes Thread Guards
No
Includes Spanner Bushing
Yes
Brake Location
Right Side
Series
Inferno
Swivel Raceway Type
Single Ball
For Surface Type
Concrete
Number of Mounting Holes
4
Swivel Lock Type
4-Position Directional Lock
NSF Listed
No
Load Rating Range
300 to 999 lb
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Frame Construction
Forged
Load Capacity - Maximum
600 lb
Mounting Hole Type
Slot
Mounting Plate Shape
Rectangle

Dimensions

Wheel Width
2 in
Mounting Height
7 3/4 in
Mounting Plate Size
4 1/2 in x 6 1/2 in
Mounting Plate Thickness
5/16 in
Mounting Bolt Dia.
1/2 in
Wheel Dia.
6 in
For Axle Dia.
1/2 in
Swivel Radius
5 in
Overall Wheel Width
2 in
Mounting Plate Width
4 1/2 in
Mounting Plate Length
6 1/2 in
Inside Slot Spacing - Width
2.438 in
Outside Slot Spacing - Width
3.375 in
Inside Slot Spacing - Length
4.938 in
Outside Slot Spacing - Length
5.25 in
Fits Chest Size
Durable, High Heat, Quiet Operation, Reliable

Description

Swivel, Plate Caster, Load Rating 600 lb, Swivel Lock Type 4-Position Directional Lock, Wheel Dia. 6 in, Wheel Width 2 in, Wheel/Tread Material Iron, Wheel Core Material Iron, Non-Marking No, Number of Wheels 1, Caster Brake Type Side Brake, Tread Shape Standard
