Shop HAMILTON

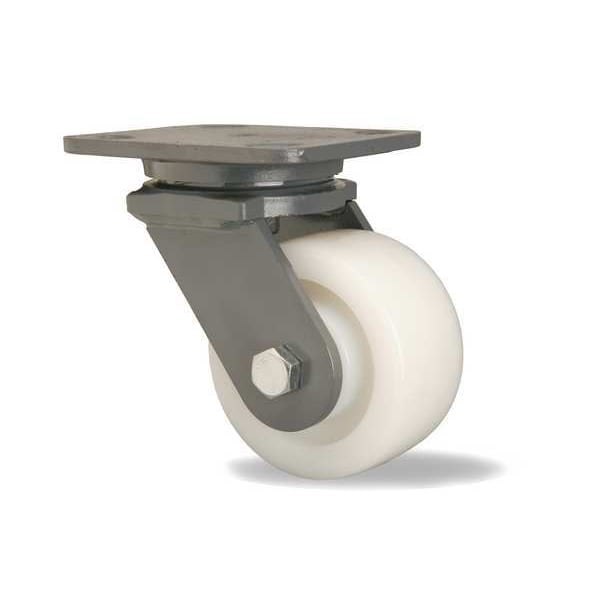

Plate Caster, Swivel, Nylon, 4 in., 800 lb, Whte

  • Mfr # S-WH-4WNB

  • Zoro # G6760695

product price:
$
144.99
/ea
Free Shipping & Returns

Key Features

Mounting Bolt Dia.
1/2 in
Caster Temp. Range Available
Yes
Wheel Color
White
Caster Sub-Type
Swivel
Caster Brake Included
No
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
S-WH-4WNB
Zoro #
G6760695
UPC #
-
Country of Origin
Multiple
Caster Temp. Range Available
Yes
Wheel Color
White
Caster Sub-Type
Swivel
Caster Brake Included
No
Features
Floor Protective
Inside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Caster Frame Material
Steel
Number of Wheels
1
Frame Finish
Enamel
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Extended Lead
No
Outside Bolt Hole Spacing
3 in x 3 in
Non-Marking
Yes
Core Color
White
Replacement Wheel
49H466
Standards
ANSI ICWM
Item
Plate Caster
Load Rating
800 lb
Caster Plate Hole Pattern
B
Thread Guards
No
Includes
Spanner Bushing
System of Measurement
Inch
Caster Brake Type
No Brake
Wheel Bearing Type
Ball
Tread Shape
Standard
Load Rating Range
300 to 999 lb
Wheel/Tread Hardness Rating
Hard
Swivel Construction
Kingpin
Wheel Core Material
Nylon
Includes Thread Guards
No
Number of Mounting Holes
4
Swivel Lock Type
No Lock Included
Swivel Raceway Type
Single Ball
Wheel/Tread Material
Nylon
Wheel/Tread Color
White
Wheel Type
Flat-Free
Wheel Hardness Rating
85 Shore D
Load Capacity - Maximum
800 lb
Mounting Plate Shape
Rectangle
Mounting Hole Type
Slot
Wheel Core Type
Solid
For Surface Type
Concrete
Operating Temperature - Minimum
-30 Degrees F
Operating Temperature - Maximum
200 Degrees F
Operating Temperature Range
-30 Degrees to 200 Degrees F

Description

Swivel, Plate Caster, Load Rating 800 lb, Swivel Lock Type No Lock Included, Wheel Dia. 4 in, Wheel Width 2 in, Wheel/Tread Material Nylon, Wheel Core Material Nylon, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
