  11. Plate Caster, Swivel, Nylon, 5 5/8"H

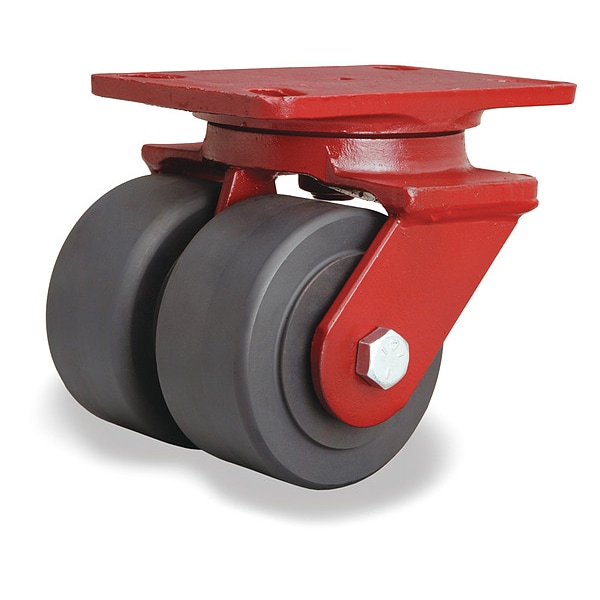

Hamilton Plate Caster, Swivel, Nylon, 5 5/8"H S-HS2-4NYB-4SL-2FB - main

Plate Caster, Swivel, Nylon, 5 5/8"H

  • Mfr # S-HS2-4NYB-4SL-2FB

  • Zoro # G9075009

product price: $485.99
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Nylon
Caster Brake Type
Side Brake
Wheel Dia.
4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
S-HS2-4NYB-4SL-2FB
Zoro #
G9075009
UPC #
-
Country of Origin
United States

Dimensions

Wheel Dia.
4 in
Wheel Width
2 in
Mounting Height
5 5/8 in
Mounting Plate Size
4 1/2 in x 6 1/2 in
Mounting Plate Thickness
5/16 in
Mounting Bolt Dia.
1/2 in
Overall Wheel Width
4 in
For Axle Dia.
1/2 in
Swivel Radius
3 5/8 in
Outside Slot Spacing - Width
3.375 in
Mounting Plate Width
4 1/2 in
Inside Slot Spacing - Width
2.438 in
Inside Slot Spacing - Length
4.938 in
Mounting Plate Length
6 1/2 in
Outside Slot Spacing - Length
5.25 in

Details

Item
Plate Caster
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Nylon
Caster Brake Type
Side Brake
Load Rating
3000 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Ball
Wheel/Tread Color
Black
Wheel Hardness Rating
85 Shore D
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Black
Non-Marking
No
Number of Wheels
2
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Caster Plate Hole Pattern
A
Standards
ANSI ICWM
Operating Temperature Range
-30 Degrees to 220 Degrees F
Swivel Lock Type
4-Position Directional Lock
Tread
Flat
Includes Mounting Fasteners
No
Wheel Core Type
Solid
NSF Listed
No
Frame Color
Red
Swivel Bearing Seal Type
Open
Frame Construction
Forged
Load Rating Range
3000 to 5999 lb
Wheel Core Material
Nylon
Swivel Raceway Type
Single Ball
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
ESD Conductive
Yes
For Surface Type
Concrete
Swivel Lead
1 3/4 in
Includes Spanner Bushing
Yes
Wheel Bearing Material
Steel
Series
Heavy Service
Leveling Caster
No
With Toe Plate
No
Wheel/Tread Hardness Rating
Hard
Wheel Type
Flat-Free
Swivel Construction
Kingpin
Includes Thread Guards
No
Frame Finish
Powder Coated
Tire Style
Tubeless
Load Capacity - Maximum
3,000 lb
Mounting Hole Type
Slot
Mounting Plate Shape
Rectangle
Brake Location
Right Side

Description

Swivel, Plate Caster, Load Rating 3000 lb, Swivel Lock Type 4-Position Directional Lock, Wheel Dia. 4 in, Wheel Width 2 in, Wheel/Tread Material Nylon, Wheel Core Material Nylon, Non-Marking No, Number of Wheels 2, Caster Brake Type Side Brake, Tread Shape Standard
