Shop HAMILTON

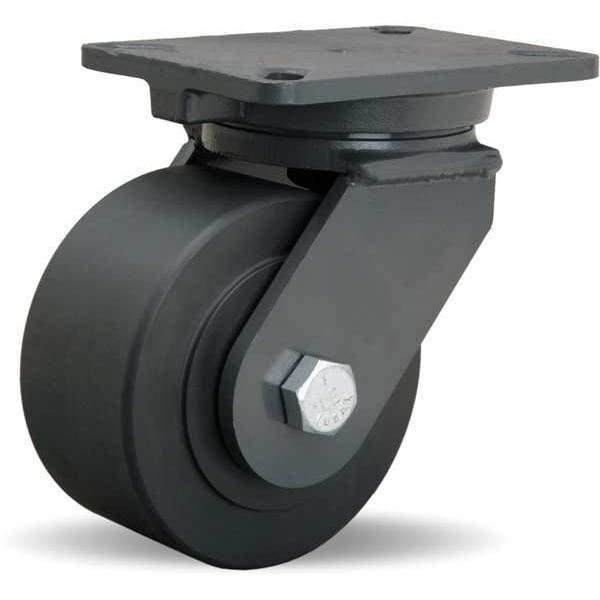

Plate Caster, Swivel, Nylon, 6 in., 4000 lb.

  • Mfr # S-CH-63NYB
  • Zoro # G6804576
product price:
$
283.99
/ea
Free Shipping & Returns

Key Features

Features
Floor Protective
Non-Marking
Yes
Caster Sub-Type
Swivel
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Overall Height
8"
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
S-CH-63NYB
Zoro #
G6804576
UPC #
-
Country of Origin
United States
Features
Floor Protective
Non-Marking
Yes
Caster Sub-Type
Swivel
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Number of Wheels
1
Load Rating
4000 lb
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Caster Frame Material
Steel
Thread Guards
No
Inside Bolt Hole Spacing
4-1/8 in x 6-1/8 in
Caster Plate Hole Pattern
A
Wheel Color
Black
Includes
Spanner Bushing
Standards
ANSI ICWM
Frame Finish
Enamel
Replacement Wheel
49H448
Caster Temp. Range Available
Yes
Item
Plate Caster
Extended Lead
No
Core Color
Black
Caster Stem Type
No Stem/Plate Included
Caster Brake Included
No
Caster Brake Type
No Brake
System of Measurement
Inch
Swivel Lock Type
No Lock Included
Swivel Raceway Type
Single Ball
Load Rating Range
3000 to 5999 lb
Swivel Construction
Kingpin
Wheel/Tread Hardness Rating
Hard
Wheel Bearing Type
Ball
Includes Thread Guards
No
Wheel Core Material
Nylon
Tread Shape
Standard
Number of Mounting Holes
4
Wheel/Tread Material
Nylon
Wheel/Tread Color
Black
Wheel Type
Flat-Free
Wheel Hardness Rating
85 Shore D
Load Capacity - Maximum
4,000 lb
Mounting Hole Type
Slot
Wheel Core Type
Solid
For Surface Type
Concrete
Mounting Plate Shape
Rectangle
Operating Temperature Range
-30 Degrees to 200 Degrees F
Operating Temperature - Minimum
-30 Degrees F
Operating Temperature - Maximum
200 Degrees F

Dimensions

Overall Height
8"
Stem Dia.
No Stem
Wheel Width
3 in
Mounting Bolt Dia.
1/2 in
Wheel Dia.
6 in
Mounting Plate Size
5 1/4 in x 7 1/4 in
Mounting Height
8 in
Mounting Plate Thickness
3/8 in
Inside Slot Spacing - Width
3.375 in
Mounting Plate Length
7 1/4 in
For Axle Dia.
3/4 in
Outside Slot Spacing - Length
6.125 in
Outside Slot Spacing - Width
4.125 in
Mounting Plate Width
5 1/4 in
Inside Slot Spacing - Length
5.25 in
Overall Wheel Width
3 in
Fits Chest Size
Floor Protective

Description

Swivel, Plate Caster, Load Rating 4000 lb, Swivel Lock Type No Lock Included, Wheel Dia. 6 in, Wheel Width 3 in, Wheel/Tread Material Nylon, Wheel Core Material Nylon, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
