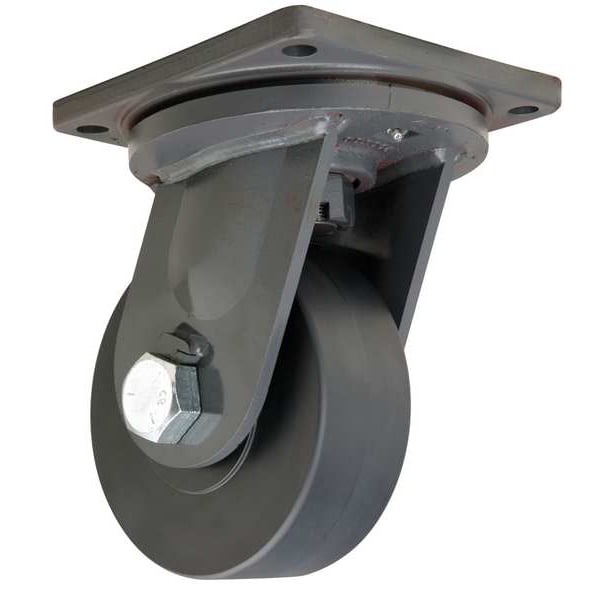

Plate Caster, Swivel, Nylon, 8 in., 7200 lb.

  • Mfr # S-MD-83NYB
  • Zoro # G6803063
product price:
$
576.99
/ea
Free Shipping & Returns

Key Features

Number of Wheels
1
Frame Finish
Enamel
Inside Bolt Hole Spacing
7 in x 7 in
Caster Brake Included
No
Extended Lead
No
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
S-MD-83NYB
Zoro #
G6803063
UPC #
-
Country of Origin
United States
Number of Wheels
1
Frame Finish
Enamel
Inside Bolt Hole Spacing
7 in x 7 in
Caster Brake Included
No
Extended Lead
No
Features
Floor Protective
Includes
Spanner Bushing
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Outside Bolt Hole Spacing
7 in x 7 in
Caster Frame Material
Steel
Caster Temp. Range Available
Yes
Replacement Wheel
49H449
Wheel Color
Black
Load Rating
7200 lb
Caster Sub-Type
Swivel
Thread Guards
No
Core Color
Black
Item
Plate Caster
Non-Marking
Yes
Caster Stem Type
No Stem/Plate Included
Caster Plate Hole Pattern
D
Standards
ANSI ICWM
Caster Brake Type
No Brake
System of Measurement
Inch
Tread Shape
Standard
Swivel Raceway Type
Roller
Swivel Lock Type
No Lock Included
Wheel Core Material
Nylon
Load Rating Range
6000 lb and Greater
Swivel Construction
Kingpin
Wheel Bearing Type
Ball
Wheel/Tread Hardness Rating
Hard
Number of Mounting Holes
4
Includes Thread Guards
No
Wheel/Tread Material
Nylon
Wheel/Tread Color
Black
Wheel Type
Flat-Free
Load Capacity - Maximum
7,200 lb
Wheel Hardness Rating
85 Shore D
Mounting Hole Type
Hole
For Surface Type
Concrete
Mounting Plate Shape
Square
Wheel Core Type
Solid
Operating Temperature - Minimum
-30 Degrees F
Operating Temperature - Maximum
200 Degrees F
Operating Temperature Range
-30 Degrees to 200 Degrees F

Dimensions

Stem Dia.
No Stem
Mounting Bolt Dia.
1/2 in
Wheel Dia.
8 in
Overall Height
11"
Wheel Width
3 in
Mounting Plate Size
8 1/2 in x 8 1/2 in
Mounting Height
11 in
Bolt Hole Spacing - Width
7 in
Mounting Plate Width
8 1/2 in
Mounting Plate Thickness
5/8 in
Overall Wheel Width
3 in
Bolt Hole Spacing - Length
7 in
For Axle Dia.
1 1/4 in
Mounting Plate Length
8 1/2 in
Fits Chest Size
Floor Protective

Description

Swivel, Plate Caster, Load Rating 7200 lb, Swivel Lock Type No Lock Included, Wheel Dia. 8 in, Wheel Width 3 in, Wheel/Tread Material Nylon, Wheel Core Material Nylon, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
