Shop HAMILTON

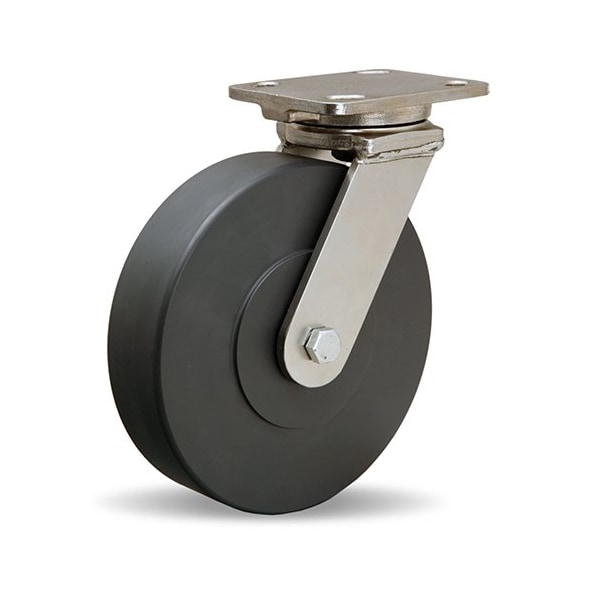

Plate Caster, Swivel, Nylon, 9 3/4"H

  • Mfr # S-WHS-8NYSB
  • Zoro # G3724461
product price:
$
593.99
/ea
Free Shipping & Returns

Key Features

Non-Marking
Yes
Wheel Dia.
8 in
Load Rating
1600 lb
Caster Plate Hole Pattern
B
Thread Guards
No
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
S-WHS-8NYSB
Zoro #
G3724461
UPC #
-
Country of Origin
United States

Dimensions

Wheel Dia.
8 in
Wheel Width
2 in
Mounting Bolt Dia.
3/8 in
Swivel Radius
6 5/16 in
Overall Wheel Width
2 in
Mounting Height
9 3/4 in
Mounting Plate Size
4 in x 5 in
Mounting Plate Thickness
1/4 in
For Axle Dia.
1/2 in
Mounting Plate Length
5 in
Outside Slot Spacing - Width
3 in
Outside Slot Spacing - Length
3.625 in
Inside Slot Spacing - Length
3 in
Mounting Plate Width
4 in
Inside Slot Spacing - Width
2.625 in

Details

Non-Marking
Yes
Load Rating
1600 lb
Caster Plate Hole Pattern
B
Thread Guards
No
Standards
ANSI ICWM
Frame Finish
Polished
Caster Mounting Type
Plate
Wheel Type
Flat-Free
Caster Sub-Type
Swivel
Core Color
Black
Caster Frame Material
Stainless Steel
Number of Wheels
1
Tread
Flat
Inside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Caster Brake Type
No Brake
Outside Bolt Hole Spacing
3 in x 3 in
Item
Plate Caster
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
NSF Listed
No
With Toe Plate
No
Wheel/Tread Material
Nylon
Swivel Construction
Kingpin
Wheel/Tread Color
Black
Swivel Lock Type
No Lock Included
Wheel Core Material
Nylon
Series
Workhorse Stainless
Wheel Bearing Material
Stainless Steel
For Surface Type
Concrete
Leveling Caster
No
Operating Temperature Range
-30 Degrees to 220 Degrees F
Number of Mounting Holes
4
Frame Color
Silver
Swivel Raceway Type
Single Ball
Swivel Bearing Seal Type
Open
Wheel Core Type
Solid
Swivel Lead
2 3/8 in
ESD Conductive
Yes
Includes Spanner Bushing
Yes
Tire Style
Tubeless
Wheel/Tread Hardness Rating
Hard
Load Rating Range
1000 to 2999 lb
Frame Construction
Forged
Includes Mounting Fasteners
No
Tread Shape
Standard
Includes Thread Guards
No
Wheel Bearing Type
Ball
Load Capacity - Maximum
1,600 lb
Wheel Hardness Rating
85 Shore D
Mounting Hole Type
Slot
Mounting Plate Shape
Rectangle

Description

Swivel, Plate Caster, Load Rating 1600 lb, Swivel Lock Type No Lock Included, Wheel Dia. 8 in, Wheel Width 2 in, Wheel/Tread Material Nylon, Wheel Core Material Nylon, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
