Shop HAMILTON

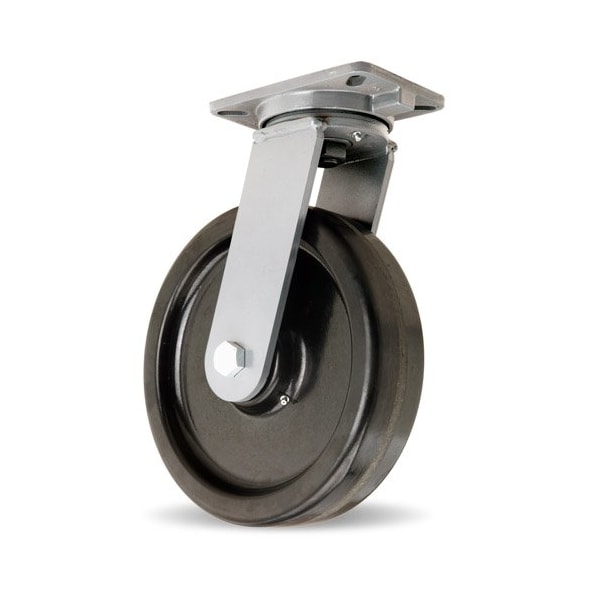

Plate Caster, Swivel, Phenolic, 15 1/2"H

  • Mfr # S-CH-12PH

  • Zoro # G3719841

product price:  $265.99
/ea
Free Shipping & Returns

Key Features

Wheel Type
Flat-Free
Inside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Caster Frame Material
Steel
Outside Bolt Hole Spacing
4-1/8 in x 6-1/8 in
Load Rating
3500 lb
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
S-CH-12PH
Zoro #
G3719841
UPC #
-
Country of Origin
United States

Dimensions

Mounting Bolt Dia.
1/2 in
Wheel Width
3 in
Wheel Dia.
12 in
Swivel Radius
8 1/2 in
Mounting Plate Size
5 1/4 in x 7 1/4 in
Overall Wheel Width
3 in
Mounting Plate Thickness
1/2 in
For Axle Dia.
1 in
Mounting Height
15 1/2 in
Inside Slot Spacing - Length
5.25 in
Inside Slot Spacing - Width
3.375 in
Outside Slot Spacing - Width
4.125 in
Mounting Plate Width
5 1/4 in
Mounting Plate Length
7 1/4 in
Outside Slot Spacing - Length
6.125 in

Details

Wheel Type
Flat-Free
Inside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Caster Frame Material
Steel
Outside Bolt Hole Spacing
4-1/8 in x 6-1/8 in
Load Rating
3500 lb
Thread Guards
No
Frame Finish
Powder Coated
Caster Mounting Type
Plate
Caster Plate Hole Pattern
A
Item
Plate Caster
Tread
Flat
Number of Wheels
1
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Standards
ANSI ICWM
Non-Marking
No
Caster Brake Type
No Brake
Core Color
Black
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Hardness Rating
Hard
Swivel Construction
Kingpin
Tire Style
Tubeless
Wheel Core Type
Solid
Swivel Raceway Type
Single Ball
Swivel Bearing Seal Type
Open
Includes Mounting Fasteners
No
Includes Thread Guards
No
Leveling Caster
No
Frame Construction
Forged
NSF Listed
No
Number of Mounting Holes
4
Load Rating Range
3000 to 5999 lb
Includes Spanner Bushing
Yes
Series
Champion
Wheel/Tread Color
Black
Swivel Lead
2 1/2 in
ESD Conductive
Yes
Wheel Bearing Type
Roller
Swivel Lock Type
No Lock Included
Wheel Bearing Material
Steel
Frame Color
Silver
Tread Shape
Standard
Operating Temperature Range
-50 Degrees to 300 Degrees F
With Toe Plate
No
Wheel/Tread Material
Phenolic
For Surface Type
Concrete
Wheel Hardness Rating
90 Shore D
Load Capacity - Maximum
3,500 lb
Mounting Hole Type
Slot
Mounting Plate Shape
Rectangle

Description

Swivel, Plate Caster, Load Rating 3500 lb, Swivel Lock Type No Lock Included, Wheel Dia. 12 in, Wheel Width 3 in, Wheel/Tread Material Phenolic, Non-Marking No, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
