Shop HAMILTON

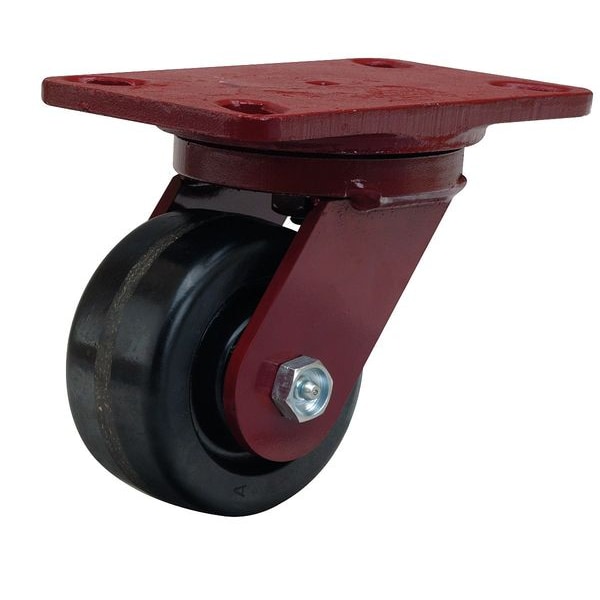

Plate Caster, Swivel, Phenolic, 4 in., 800 lb, A

  • Mfr # S-HS-4P

  • Zoro # G7050531

product price:
$
102.99
/ea
Free Shipping & Returns

Key Features

Caster Stem Type
No Stem/Plate Included
Caster Frame Material
Steel
Mounting Bolt Dia.
1/2 in
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Stem Dia.
No Stem
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
S-HS-4P
Zoro #
G7050531
UPC #
-
Country of Origin
United States

Dimensions

Mounting Bolt Dia.
1/2 in
Stem Dia.
No Stem
Overall Height
5-5/8"
Wheel Dia.
4 in
Wheel Width
2 in
Mounting Plate Size
4 1/2 in x 6 1/2 in
Mounting Height
5 5/8 in
Outside Slot Spacing - Width
3.375 in
Mounting Plate Length
6 1/2 in
Mounting Plate Width
4 1/2 in
Outside Slot Spacing - Length
5.25 in
Inside Slot Spacing - Length
4.938 in
For Axle Dia.
1/2 in
Overall Wheel Width
2 in
Mounting Plate Thickness
5/16 in
Inside Slot Spacing - Width
2.438 in

Details

Caster Stem Type
No Stem/Plate Included
Caster Frame Material
Steel
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Caster Plate Hole Pattern
A
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Thread Guards
No
Caster Sub-Type
Swivel
Frame Finish
Enamel
Number of Wheels
1
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Standards
ANSI ICWM
Load Rating
800 lb
Non-Marking
Yes
Replacement Wheel
23EK22
Wheel Color
Black
Includes
Spanner Bushing
Item
Plate Caster
Core Color
Black
Caster Temp. Range Available
Yes
Caster Brake Included
No
Extended Lead
No
System of Measurement
Inch
Caster Brake Type
No Brake
Swivel Lock Type
No Lock Included
Number of Mounting Holes
4
Wheel Bearing Type
Roller
Swivel Construction
Kingpin
Load Rating Range
300 to 999 lb
Wheel Core Material
Phenolic
Includes Thread Guards
No
Swivel Raceway Type
Single Ball
Wheel/Tread Hardness Rating
Hard
Tread Shape
Standard
Wheel/Tread Material
Phenolic
Wheel/Tread Color
Black
Wheel Type
Flat-Free
Wheel Hardness Rating
90 Shore D
Load Capacity - Maximum
800 lb
For Surface Type
Concrete
Mounting Hole Type
Slot
Wheel Core Type
Solid
Mounting Plate Shape
Rectangle
Operating Temperature Range
-50 Degrees to 300 Degrees F
Operating Temperature - Maximum
300 Degrees F
Operating Temperature - Minimum
-50 Degrees F

Description

Swivel, Plate Caster, Load Rating 800 lb, Swivel Lock Type No Lock Included, Wheel Dia. 4 in, Wheel Width 2 in, Wheel/Tread Material Phenolic, Wheel Core Material Phenolic, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
