Shop HAMILTON

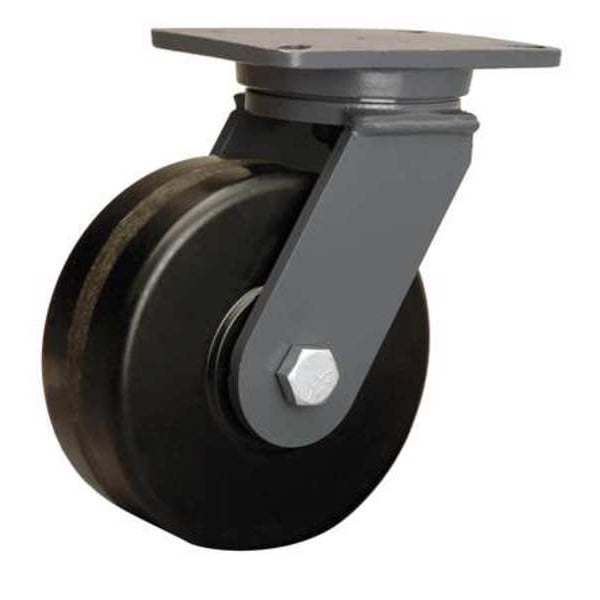

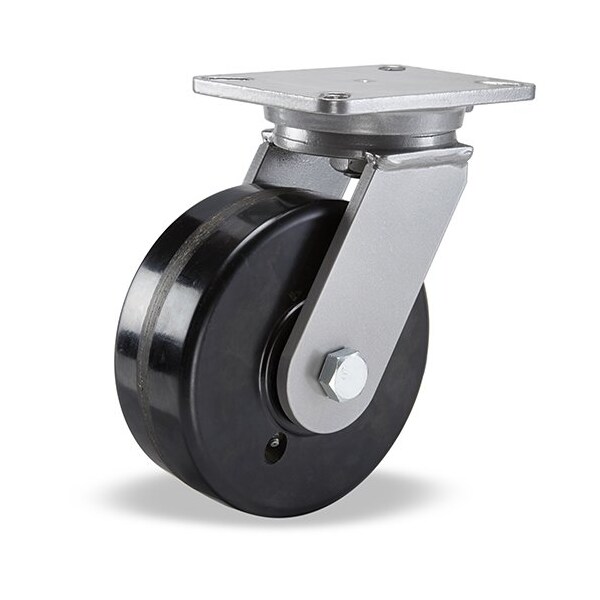

Plate Caster, Swivel, Phenolic, 8 in., 3000 lb, A

  • Mfr # S-CH-83PH

  • Zoro # G2607157

product price:
$
217.99
/ea
Free Shipping & Returns

Key Features

Non-Marking
Yes
Thread Guards
No
Caster Plate Hole Pattern
A
Frame Finish
Enamel
Wheel Dia.
8 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
S-CH-83PH
Zoro #
G2607157
UPC #
-
Country of Origin
United States

Dimensions

Wheel Dia.
8 in
Overall Height
10-1/2"
Stem Dia.
No Stem
Mounting Bolt Dia.
1/2 in
Wheel Width
3 in
Mounting Height
10 1/2 in
Mounting Plate Size
5 1/4 in x 7 1/4 in
Mounting Plate Length
7 1/4 in
For Axle Dia.
3/4 in
Outside Slot Spacing - Length
6.125 in
Overall Wheel Width
3 in
Mounting Plate Thickness
3/8 in
Outside Slot Spacing - Width
4.125 in
Inside Slot Spacing - Length
5.25 in
Mounting Plate Width
5 1/4 in
Inside Slot Spacing - Width
3.375 in

Details

Non-Marking
Yes
Thread Guards
No
Caster Plate Hole Pattern
A
Frame Finish
Enamel
Item
Plate Caster
Caster Sub-Type
Swivel
Load Rating
3000 lb
Caster Frame Material
Steel
Wheel Color
Black
Number of Wheels
1
Caster Stem Type
No Stem/Plate Included
Extended Lead
No
Caster Temp. Range Available
Yes
Core Color
Black
Includes
Spanner Bushing
Standards
ANSI ICWM
Replacement Wheel
5VJ94
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Caster Brake Included
No
Inside Bolt Hole Spacing
4-1/8 in x 6-1/8 in
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Caster Brake Type
No Brake
System of Measurement
Inch
Swivel Raceway Type
Single Ball
Load Rating Range
3000 to 5999 lb
Wheel Bearing Type
Roller
Swivel Construction
Kingpin
Wheel Core Material
Phenolic
Wheel/Tread Hardness Rating
Hard
Tread Shape
Standard
Number of Mounting Holes
4
Includes Thread Guards
No
Swivel Lock Type
No Lock Included
Wheel/Tread Material
Phenolic
Wheel/Tread Color
Black
Wheel Type
Flat-Free
Wheel Hardness Rating
90 Shore D
Load Capacity - Maximum
3,000 lb
For Surface Type
Concrete
Mounting Hole Type
Slot
Mounting Plate Shape
Rectangle
Wheel Core Type
Solid
Operating Temperature - Minimum
-50 Degrees F
Operating Temperature - Maximum
300 Degrees F
Operating Temperature Range
-50 Degrees to 300 Degrees F

Description

Swivel, Plate Caster, Load Rating 3000 lb, Swivel Lock Type No Lock Included, Wheel Dia. 8 in, Wheel Width 3 in, Wheel/Tread Material Phenolic, Wheel Core Material Phenolic, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
