Shop HAMILTON

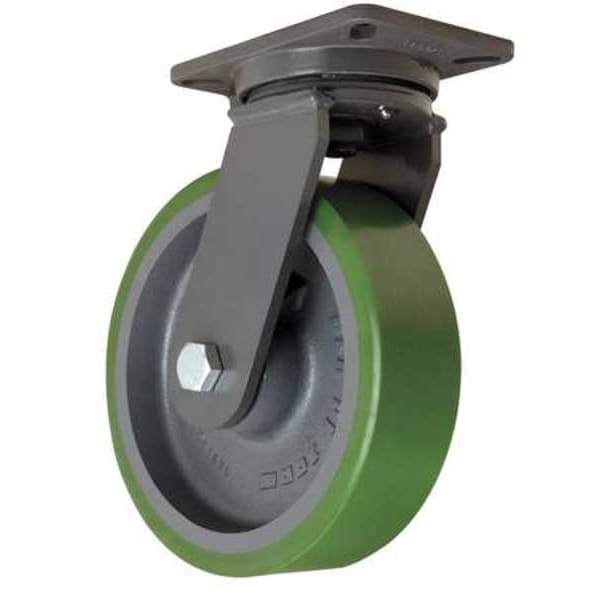

Plate Caster, Swivel, Poly, 10 in., 3000 lb.

  • Mfr # S-CH-13DB

  • Zoro # G0329962

product price:
$
350.99
/ea
Free Shipping & Returns

Key Features

Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Load Rating
3000 lb
Wheel Dia.
10 in
Inside Bolt Hole Spacing
4-1/8 in x 6-1/8 in
Overall Height
12-1/2"
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
S-CH-13DB
Zoro #
G0329962
UPC #
-
Country of Origin
United States

Dimensions

Wheel Dia.
10 in
Overall Height
12-1/2"
Stem Dia.
No Stem
Mounting Bolt Dia.
1/2 in
Wheel Width
3 in
Mounting Height
12 1/2 in
Mounting Plate Size
5 1/4 in x 7 1/4 in
For Axle Dia.
3/4 in
Mounting Plate Width
5 1/4 in
Overall Wheel Width
3 in
Inside Slot Spacing - Width
3.375 in
Mounting Plate Length
7 1/4 in
Inside Slot Spacing - Length
5.25 in
Outside Slot Spacing - Length
6.125 in
Outside Slot Spacing - Width
4.125 in
Mounting Plate Thickness
3/8 in

Details

Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Load Rating
3000 lb
Inside Bolt Hole Spacing
4-1/8 in x 6-1/8 in
Frame Finish
Enamel
Caster Temp. Range Available
Yes
Standards
ANSI ICWM
Caster Brake Included
No
Thread Guards
No
Includes
Spanner Bushing
Core Color
Gray
Non-Marking
Yes
Wheel Color
Green
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Features
Floor Protective
Extended Lead
No
Caster Stem Type
No Stem/Plate Included
Replacement Wheel
4DU72
Number of Wheels
1
Caster Sub-Type
Swivel
Item
Plate Caster
Caster Plate Hole Pattern
A
Caster Frame Material
Steel
System of Measurement
Inch
Caster Brake Type
No Brake
Tread Shape
Standard
Swivel Raceway Type
Single Ball
Swivel Lock Type
No Lock Included
Wheel Bearing Type
Ball
Swivel Construction
Kingpin
Load Rating Range
3000 to 5999 lb
Number of Mounting Holes
4
Wheel Core Material
Iron
Wheel/Tread Hardness Rating
Firm
Includes Thread Guards
No
Wheel/Tread Material
Polyurethane
Wheel/Tread Color
Green
Wheel Type
Flat-Free
Wheel Hardness Rating
95 Shore A
Load Capacity - Maximum
3,000 lb
Mounting Hole Type
Slot
Mounting Plate Shape
Rectangle
For Surface Type
Concrete
Wheel Core Type
Solid
Operating Temperature - Maximum
200 Degrees F
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature Range
-40 Degrees to 200 Degrees F

Description

Swivel, Plate Caster, Load Rating 3000 lb, Swivel Lock Type No Lock Included, Wheel Dia. 10 in, Wheel Width 3 in, Wheel/Tread Material Polyurethane, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
