  6. Plate Caster, Swivel, Poly, 4 in., 750 lb.

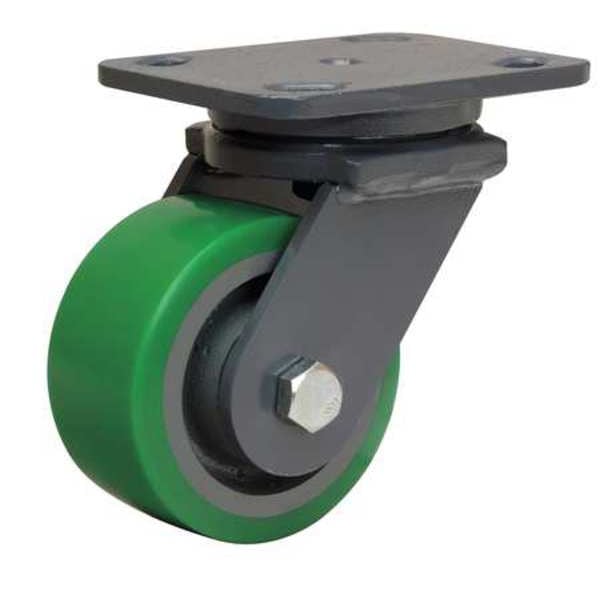

Hamilton Plate Caster, Swivel, Poly, 4 in., 750 lb. S-WH-4DB - main

Plate Caster, Swivel, Poly, 4 in., 750 lb.

  • Mfr # S-WH-4DB

  • Zoro # G1257164

product price:  $136.99
/ea
Free Shipping & Returns

Key Features

Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Load Rating
750 lb
Overall Height
5-5/8in
Caster Sub-Type
Swivel
Core Color
Gray
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
S-WH-4DB
Zoro #
G1257164
UPC #
-
Country of Origin
United States

Dimensions

Overall Height
5-5/8in
Wheel Dia.
4 in
Mounting Bolt Dia.
1/2 in
Stem Dia.
No Stem
Wheel Width
2 in
Mounting Height
5 5/8 in
Mounting Plate Size
4 in x 5 in
Inside Slot Spacing - Length
3 in
Overall Wheel Width
2 in
For Axle Dia.
1/2 in
Mounting Plate Thickness
1/4 in
Inside Slot Spacing - Width
2.625 in
Outside Slot Spacing - Width
3 in
Mounting Plate Width
4 in
Outside Slot Spacing - Length
3.625 in
Mounting Plate Length
5 in

Details

Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Load Rating
750 lb
Caster Sub-Type
Swivel
Core Color
Gray
Wheel Color
Green
Standards
ANSI ICWM
Number of Wheels
1
Thread Guards
No
Caster Stem Type
No Stem/Plate Included
Non-Marking
Yes
Frame Finish
Enamel
Includes
Spanner Bushing
Extended Lead
No
Inside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Caster Plate Hole Pattern
B
Caster Frame Material
Steel
Item
Plate Caster
Caster Brake Included
No
Replacement Wheel
4DU67
Caster Temp. Range Available
Yes
Outside Bolt Hole Spacing
3 in x 3 in
Features
Floor Protective
System of Measurement
Inch
Caster Brake Type
No Brake
Wheel/Tread Hardness Rating
Firm
Wheel Core Material
Iron
Includes Thread Guards
No
Swivel Raceway Type
Single Ball
Tread Shape
Standard
Swivel Lock Type
No Lock Included
Wheel Bearing Type
Ball
Swivel Construction
Kingpin
Load Rating Range
300 to 999 lb
Number of Mounting Holes
4
Wheel/Tread Material
Polyurethane
Wheel/Tread Color
Green
Wheel Type
Flat-Free
Wheel Hardness Rating
95 Shore A
Load Capacity - Maximum
750 lb
Wheel Core Type
Solid
For Surface Type
Concrete
Mounting Hole Type
Slot
Mounting Plate Shape
Rectangle
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature - Maximum
200 Degrees F
Operating Temperature Range
-40 Degrees to 200 Degrees F

Description

Swivel, Plate Caster, Load Rating 750 lb, Swivel Lock Type No Lock Included, Wheel Dia. 4 in, Wheel Width 2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
