  6. Swivel Plate Caster, Solid Rubbr, 4", Brake, Overall Height: 5.51"
Blickle Swivel Plate Caster, Solid Rubbr, 4", Brake, Overall Height: 5.51" LH-ALEV 100K-14-FI - main

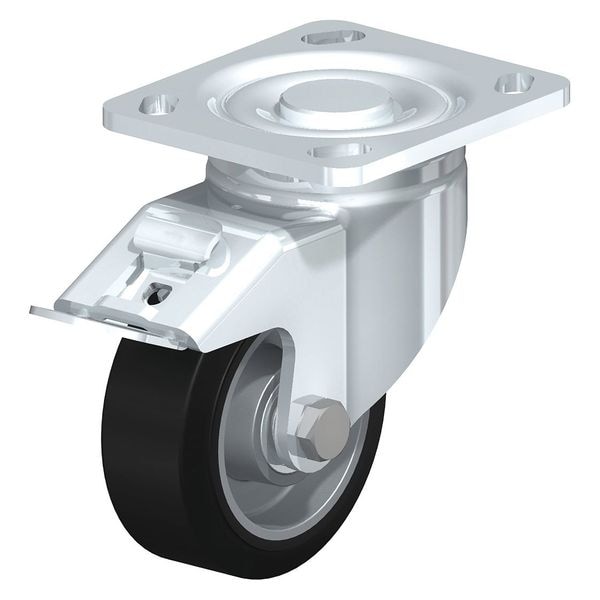

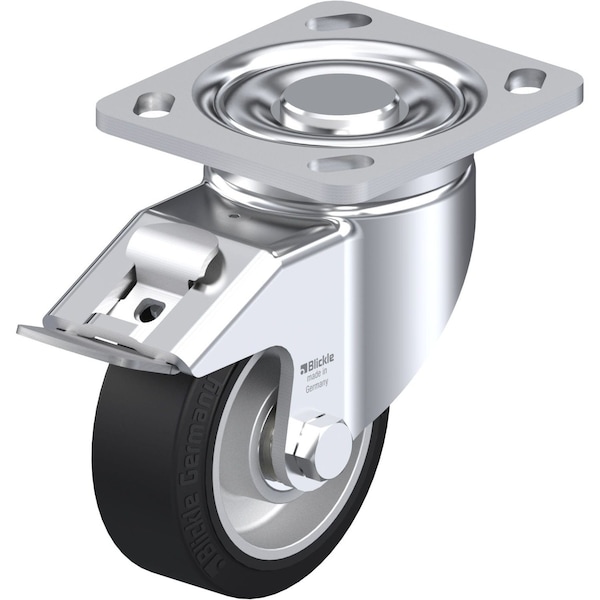

Swivel Plate Caster, Solid Rubbr, 4", Brake, Overall Height: 5.51"

  • Mfr # LH-ALEV 100K-14-FI

  • Zoro # G0894019

product price:  $96.79
/ea
Free Shipping & Returns

Key Features

Caster Brake Included
Yes
Wheel Width
1-9/16in
Number of Wheels
1
Caster Stem Type
No Stem/Plate Included
Overall Height
5.51in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
LH-ALEV 100K-14-FI
Zoro #
G0894019
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Width
1-9/16in
Overall Height
5.51in
Wheel Dia.
4in
Stem Dia.
No Stem
Mounting Bolt Dia.
3/8 in
Swivel Radius
3-3/4 in
Mounting Plate Thickness
0.236 in
Mounting Plate Size
4 in x 4-1/2 in

Details

Caster Brake Included
Yes
Number of Wheels
1
Caster Stem Type
No Stem/Plate Included
Item
Swivel Caster With Brake
Caster Sub-Type
Swivel
Load Rating
440 lb.
Tread
Standard
Inside Bolt Hole Spacing
3 in x 3 in
Includes
Stop-Fix Total-Lock Brake
Frame Finish
Zinc Plated
Standards
RoHS, ICWM
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Caster Mounting Type
Plate
Caster Brake Type
Stop Fix Brake (Total Lock)
Tread Color
Black
Replacement Wheel
Mfr. No. ALEV 100/15K
Core Color
Silver
Non-Marking
No
Application
Retail, Industrial, Commercial
System of Measurement
Inch
Caster Frame Material
Steel
Extended Lead
No
Load Capacity
440 lb
Series
LH Series
ESD Conductive
No
Tread Shape
Standard
Number of Mounting Holes
4
Resistant To
High Chemical Resistance To Many Aggressive Substances, Except Oils
Load Rating Range
Heavy-Duty
Wheel Core Material
Aluminum
Accessories
Optional: RI-04.14 (Directional Lock)
Includes Thread Guards
No
Swivel Raceway Type
Double Ball
Wheel/Tread Material
Aluminum/Solid Rubber
Wheel Bearing Type
Precision Ball
Wheel Hardness Rating
65 Shore A
Operating Temperature Range
-15 Degrees To 175 Degrees F

Description

Swivel With Brake
