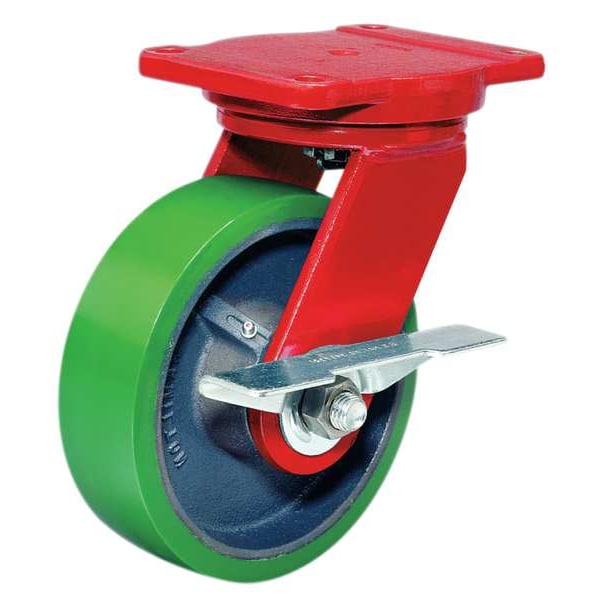

Plate Caster, Swivel, Poly, 8 in., 1500 lb., Grn

  • Mfr # S-HS-8DB-4SL-FB
  • Zoro # G7629596
product price:
$
231.99
/ea
Free Shipping & Returns

Key Features

Standards
ANSI ICWM
Caster Temp. Range Available
Yes
Stem Dia.
No Stem
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
S-HS-8DB-4SL-FB
Zoro #
G7629596
UPC #
-
Country of Origin
United States
Standards
ANSI ICWM
Caster Temp. Range Available
Yes
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Caster Stem Type
No Stem/Plate Included
Caster Plate Hole Pattern
A
Frame Finish
Enamel
Caster Brake Type
Total Lock
Wheel Color
Green
Thread Guards
No
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Number of Wheels
1
Core Color
Gray
Non-Marking
Yes
Features
Floor Protective
Load Rating
1500 lb
Item
Plate Caster
Extended Lead
No
Caster Sub-Type
Swivel
Caster Brake Included
Yes
Caster Frame Material
Steel
Includes
Brake
Replacement Wheel
4DU70
System of Measurement
Inch
Swivel Raceway Type
Single Ball
Includes Thread Guards
No
Number of Mounting Holes
4
Wheel Bearing Type
Ball
Swivel Lock Type
4-Position Directional Lock
Swivel Construction
Kingpin
Wheel Core Material
Iron
Load Rating Range
1000 to 2999 lb
Tread Shape
Standard
Wheel/Tread Hardness Rating
Firm
Wheel/Tread Material
Polyurethane
Wheel/Tread Color
Green
Wheel Type
Flat-Free
Load Capacity - Maximum
1,500 lb
Wheel Hardness Rating
95 Shore A
Brake Location
Right Side
For Surface Type
Concrete
Mounting Plate Shape
Rectangle
Mounting Hole Type
Slot
Wheel Core Type
Solid
Operating Temperature - Maximum
200 Degrees F
Operating Temperature Range
-40 Degrees to 200 Degrees F
Operating Temperature - Minimum
-40 Degrees F

Dimensions

Stem Dia.
No Stem
Wheel Dia.
8 in
Overall Height
9-3/4"
Mounting Bolt Dia.
1/2 in
Wheel Width
2 in
Mounting Height
9 3/4 in
Mounting Plate Size
4 1/2 in x 6 1/2 in
For Axle Dia.
1/2 in
Outside Slot Spacing - Width
3.375 in
Inside Slot Spacing - Length
4.938 in
Mounting Plate Width
4 1/2 in
Overall Wheel Width
2 in
Outside Slot Spacing - Length
5.25 in
Mounting Plate Length
6 1/2 in
Mounting Plate Thickness
5/16 in
Inside Slot Spacing - Width
2.438 in
Fits Chest Size
Floor Protective

Description

Swivel, Plate Caster, Load Rating 1500 lb, Swivel Lock Type 4-Position Directional Lock, Wheel Dia. 8 in, Wheel Width 2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Total Lock, Tread Shape Standard
