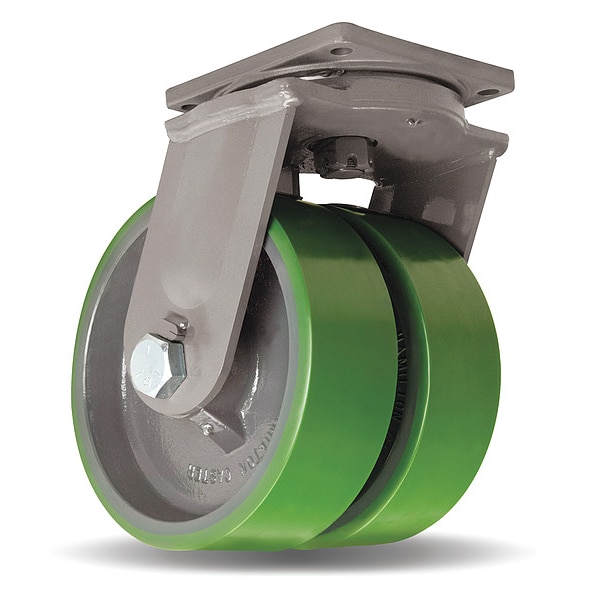

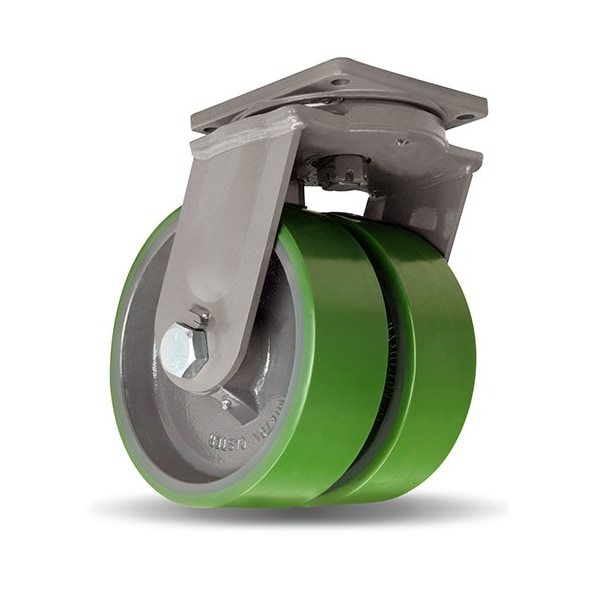

Hamilton Plate Caster, Swivel, Polyurethane, 13"H S-MDD-13DT-4SL-DHCB - main

Plate Caster, Swivel, Polyurethane, 13"H

  • Mfr # S-MDD-13DT-4SL-DHCB

  • Zoro # G9073730

product price: $1,165.99
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Polyurethane
Caster Brake Type
Face Brake
Wheel Dia.
10 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
S-MDD-13DT-4SL-DHCB
Zoro #
G9073730
UPC #
-
Country of Origin
United States

Dimensions

Wheel Dia.
10 in
Wheel Width
3 in
Mounting Height
13 in
Mounting Plate Size
8 1/2 in x 8 1/2 in
Mounting Plate Thickness
5/8 in
Mounting Bolt Dia.
5/8 in
For Axle Dia.
1 1/4 in
Overall Wheel Width
3 in
Swivel Radius
8 1/2 in
Mounting Plate Width
8 1/2 in
Mounting Plate Length
8 1/2 in
Bolt Hole Spacing - Width
7 in
Bolt Hole Spacing - Length
7 in

Details

Item
Plate Caster
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Polyurethane
Caster Brake Type
Face Brake
Load Rating
6000 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Roller
Wheel/Tread Color
Green
Wheel Hardness Rating
95 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Silver
Non-Marking
Yes
Number of Wheels
2
Outside Bolt Hole Spacing
7 in x 7 in
Inside Bolt Hole Spacing
7 in x 7 in
Caster Plate Hole Pattern
D
Frame Construction
Forged
Frame Color
Silver
Load Rating Range
6000 lb and Greater
Wheel/Tread Hardness Rating
Firm
NSF Listed
No
Includes Mounting Fasteners
No
Series
Maxi-Duty Dual
Tire Style
Tubeless
Standards
ANSI ICWM
Swivel Construction
Kingpin
For Surface Type
Concrete
Wheel Core Material
Iron
Operating Temperature Range
-50 Degrees to 200 Degrees F
ESD Conductive
Yes
Swivel Raceway Type
Roller
Wheel Core Type
Solid
Swivel Lock Type
4-Position Swivel Lock
Wheel Bearing Material
Steel
Leveling Caster
No
Frame Finish
Powder Coated
Tread
Flat
Brake Location
Face
Swivel Lead
3 in
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
With Toe Plate
No
Wheel Type
Flat-Free
Swivel Bearing Seal Type
Open
Includes Thread Guards
No
Includes Spanner Bushing
Yes
Load Capacity - Maximum
6,000 lb
Mounting Hole Type
Hole
Mounting Plate Shape
Rectangle

Description

Swivel, Plate Caster, Load Rating 6000 lb, Swivel Lock Type 4-Position Swivel Lock, Wheel Dia. 10 in, Wheel Width 3 in, Wheel/Tread Material Polyurethane, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 2, Caster Brake Type Face Brake, Tread Shape Standard
