Shop HAMILTON

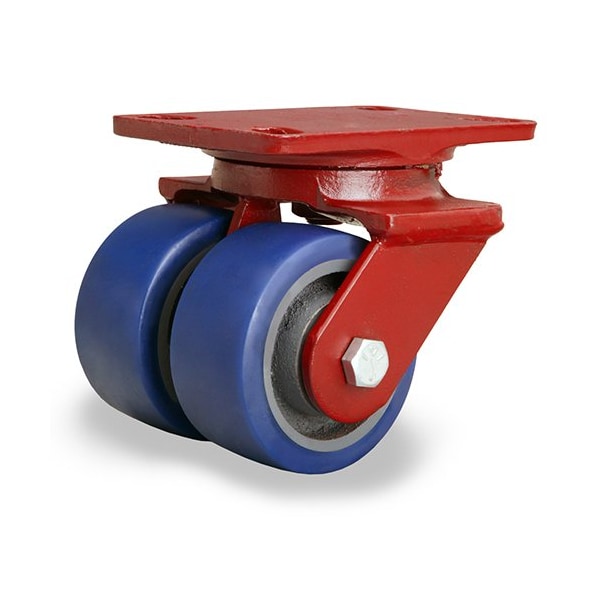

Plate Caster, Swivel, Polyurethane, 5 5/8"H

  • Mfr # S-HS2-4SPB-4SL-2FB
  • Zoro # G2010998
product price:
$
405.99
/ea
Free Shipping & Returns

Key Features

Overall Height
5-5/8"
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Caster Temp. Range Available
Yes
Wheel Dia.
4 in
Caster Brake Type
Total Lock
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
S-HS2-4SPB-4SL-2FB
Zoro #
G2010998
UPC #
-
Country of Origin
United States

Dimensions

Overall Height
5-5/8"
Wheel Dia.
4 in
Mounting Bolt Dia.
1/2 in
Wheel Width
2 in
Mounting Height
5 5/8 in
Mounting Plate Size
4 1/2 in x 6 1/2 in
Outside Slot Spacing - Length
5.25 in
Inside Slot Spacing - Length
4.938 in
Mounting Plate Length
6 1/2 in
Overall Wheel Width
4 in
Inside Slot Spacing - Width
2.438 in
Mounting Plate Width
4 1/2 in
For Axle Dia.
1/2 in
Mounting Plate Thickness
5/16 in
Outside Slot Spacing - Width
3.375 in

Details

Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Caster Temp. Range Available
Yes
Caster Brake Type
Total Lock
Caster Frame Material
Steel
Caster Plate Hole Pattern
A
Frame Finish
Enamel
Caster Sub-Type
Swivel
Item
Plate Caster
Number of Wheels
2
Load Rating
1200 lb
Non-Marking
Yes
Wheel Color
Blue
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Caster Brake Included
Yes
Core Color
Gray
System of Measurement
Inch
Swivel Lock Type
4-Position Directional Lock
Number of Mounting Holes
4
Includes Thread Guards
No
Swivel Construction
Kingpin
Wheel/Tread Hardness Rating
Soft
Tread Shape
Standard
Wheel Core Material
Iron
Load Rating Range
1000 to 2999 lb
Swivel Raceway Type
Single Ball
Wheel Bearing Type
Ball
Wheel/Tread Material
Polyurethane
Wheel/Tread Color
Blue
Wheel Type
Flat-Free
Load Capacity - Maximum
1,200 lb
Wheel Hardness Rating
82 Shore A
Mounting Plate Shape
Rectangle
Wheel Core Type
Solid
For Surface Type
Concrete
Brake Location
Right Side
Mounting Hole Type
Slot
Operating Temperature Range
-50 Degrees to 175 Degrees F
Operating Temperature - Minimum
-50 Degrees F
Operating Temperature - Maximum
175 Degrees F

Description

Swivel, Plate Caster, Load Rating 1200 lb, Swivel Lock Type 4-Position Directional Lock, Wheel Dia. 4 in, Wheel Width 2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 2, Caster Brake Type Total Lock, Tread Shape Standard
