  11. Plate Caster, Swivel, Polyurethane, 7 1/2"H

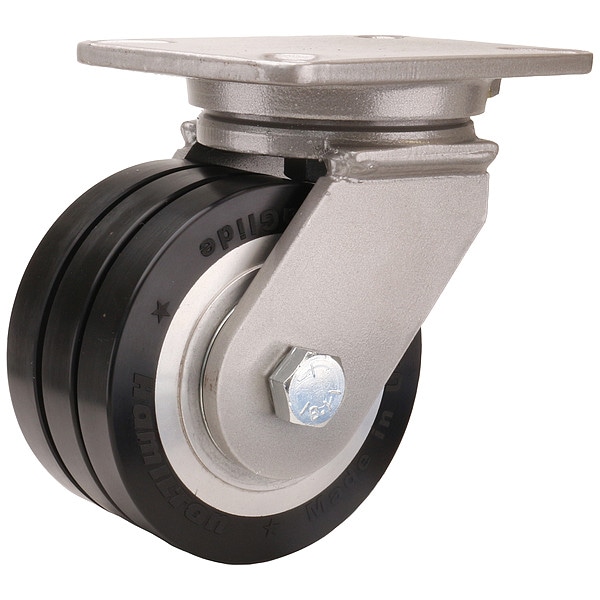

Hamilton Plate Caster, Swivel, Polyurethane, 7 1/2"H S-CH-63SWF70D - main

Plate Caster, Swivel, Polyurethane, 7 1/2"H

  • Mfr # S-CH-63SWF70D

  • Zoro # G906284075

product price: $360.99
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Polyurethane
Caster Brake Type
No Brake
Wheel Dia.
6 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
S-CH-63SWF70D
Zoro #
G906284075
UPC #
-
Country of Origin
United States

Dimensions

Wheel Dia.
6 in
Wheel Width
1 in
Mounting Height
7 1/2 in
Mounting Plate Size
5 1/4 in x 7 1/4 in
Mounting Plate Thickness
3/8 in
Mounting Bolt Dia.
1/2 in
For Axle Dia.
3/4 in
Overall Wheel Width
3 in
Inside Slot Spacing - Length
4.938 in
Mounting Plate Length
7 1/4 in
Outside Slot Spacing - Length
6.125 in
Inside Slot Spacing - Width
2.438 in
Mounting Plate Width
5 1/4 in
Outside Slot Spacing - Width
4.125 in

Details

Item
Plate Caster
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Polyurethane
Caster Brake Type
No Brake
Load Rating
3100 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Ball
Wheel/Tread Color
Black
Wheel Hardness Rating
70 Shore D
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Silver
Non-Marking
No
Number of Wheels
3
Outside Bolt Hole Spacing
5-1/4 x 7-1/4
Inside Bolt Hole Spacing
9/16 in
Caster Plate Hole Pattern
A
Wheel Type
UltraGlide(TM) XC
Features
Kingpin: 1 in Diameter Integrally Forged with Mounting Plate Guaranteed for Life and Threaded for 1 in Diameter Lock Nut, Metallic HAA Polyester Providing a Premium Look and Excellent Durability for Both Interior and Exterior Environments
Application
Fabrication, Heavy Machinery, Maintenance Repair and Operations
Wheel/Tread Hardness Rating
Extra Hard
Includes
Axle
Swivel Construction
Kingpin
Replacement Wheel
W­630­SWF70D­3/4
Frame Finish
Powder Coated
Wheel Core Material
Aluminum
Includes Thread Guards
No
Swivel Lead
2 1/4 in
Includes Mounting Fasteners
Yes
Frame Color
Red
With Toe Plate
No
Swivel Raceway Type
Precision Ball
Swivel Bearing Seal Type
Sealed
Wheel Bearing Material
Steel
Load Rating Range
1000 to 2999 lb
Swivel Lock Type
No Lock Included
Load Capacity - Maximum
3,100 lb
Compatible With
W­630­SWF70D­3/4
Mounting Hole Type
Slot
Wheel Core Type
Solid
Mounting Plate Shape
Rectangle
For Surface Type
Concrete

Description

Swivel, Plate Caster, Load Rating 3100 lb, Swivel Lock Type No Lock Included, Wheel Dia. 6 in, Wheel Width 1 in, Wheel/Tread Material Polyurethane, Wheel Core Material Aluminum, Non-Marking No, Number of Wheels 3, Caster Brake Type No Brake, Tread Shape Standard
