  11. Plate Caster, Swivel, Polyurethane, 7 1/2"H

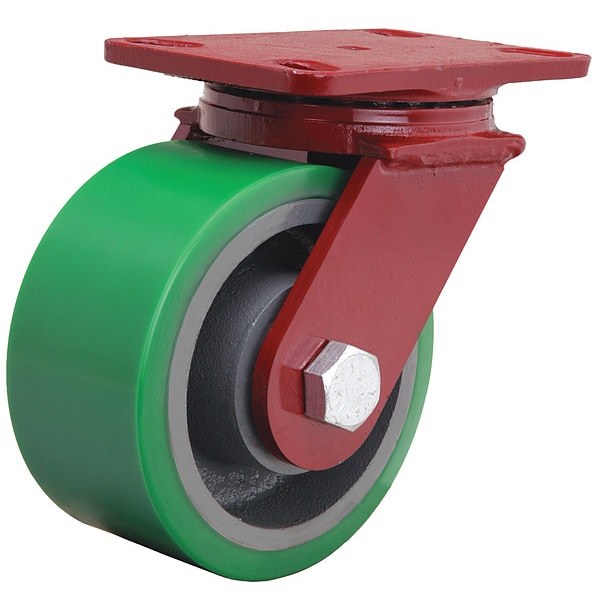

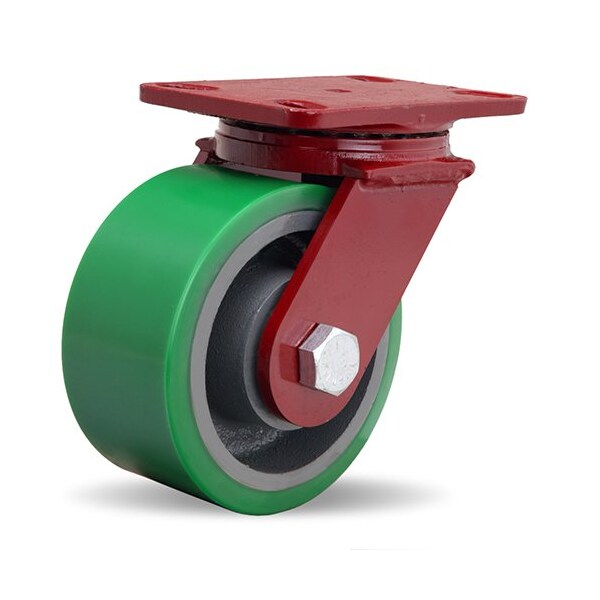

Hamilton Plate Caster, Swivel, Polyurethane, 7 1/2"H S-FM-63DB-4SL-FB - main

Plate Caster, Swivel, Polyurethane, 7 1/2"H

  • Mfr # S-FM-63DB-4SL-FB

  • Zoro # G9072190

product price: $306.99
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Polyurethane
Caster Brake Type
Side Brake
Wheel Dia.
6 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
S-FM-63DB-4SL-FB
Zoro #
G9072190
UPC #
-
Country of Origin
United States

Dimensions

Wheel Dia.
6 in
Wheel Width
3 in
Mounting Height
7 1/2 in
Mounting Plate Size
4 1/2 in x 6 1/2 in
Mounting Plate Thickness
5/16 in
Mounting Bolt Dia.
1/2 in
Overall Wheel Width
3 in
For Axle Dia.
3/4 in
Swivel Radius
5 1/4 in
Outside Slot Spacing - Width
3.375 in
Outside Slot Spacing - Length
5.25 in
Mounting Plate Length
6 1/2 in
Mounting Plate Width
4 1/2 in
Inside Slot Spacing - Width
2.438 in
Inside Slot Spacing - Length
4.938 in

Details

Item
Plate Caster
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Polyurethane
Caster Brake Type
Side Brake
Load Rating
2200 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Ball
Wheel/Tread Color
Green
Wheel Hardness Rating
95 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Silver
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Caster Plate Hole Pattern
A
Brake Location
Right Side
Wheel Type
Flat-Free
Swivel Raceway Type
Single Ball
Wheel Core Type
Solid
Series
Forgemaster
ESD Conductive
Yes
Load Rating Range
1000 to 2999 lb
Operating Temperature Range
-50 Degrees to 200 Degrees F
Wheel/Tread Hardness Rating
Firm
Swivel Lock Type
4-Position Directional Lock
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
With Toe Plate
No
For Surface Type
Concrete
Wheel Bearing Material
Steel
Includes Spanner Bushing
Yes
Swivel Construction
Kingpin
Leveling Caster
No
Standards
ANSI ICWM
NSF Listed
No
Includes Thread Guards
No
Tread
Flat
Frame Construction
Forged
Swivel Bearing Seal Type
Open
Frame Color
Red
Frame Finish
Powder Coated
Includes Mounting Fasteners
No
Wheel Core Material
Iron
Swivel Lead
2 1/4 in
Tire Style
Tubeless
Load Capacity - Maximum
2,200 lb
Mounting Hole Type
Slot
Mounting Plate Shape
Rectangle

Description

Swivel, Plate Caster, Load Rating 2200 lb, Swivel Lock Type 4-Position Directional Lock, Wheel Dia. 6 in, Wheel Width 3 in, Wheel/Tread Material Polyurethane, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Side Brake, Tread Shape Standard
