Shop HAMILTON

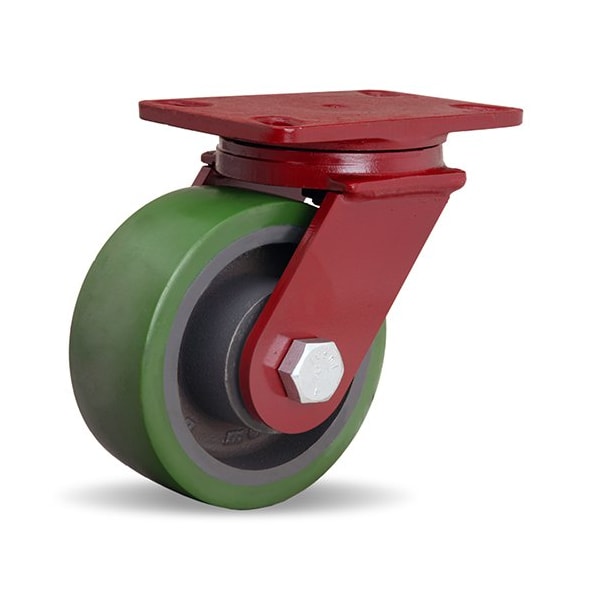

Plate Caster, Swivel, Polyurethane, 7 1/2"H

  • Mfr # S-FM-6DB-4SL-FB

  • Zoro # G1449253

product price:
$
286.99
/ea
Free Shipping & Returns

Key Features

Caster Temp. Range Available
Yes
Standards
ANSI ICWM
Replacement Wheel
35W177
Stem Dia.
No Stem
Extended Lead
No
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
S-FM-6DB-4SL-FB
Zoro #
G1449253
UPC #
-
Country of Origin
United States

Dimensions

Stem Dia.
No Stem
Mounting Bolt Dia.
1/2 in
Wheel Dia.
6 in
Wheel Width
2 1/2 in
Overall Height
7-1/2"
Mounting Height
7 1/2 in
Mounting Plate Size
4 1/2 in x 6 1/2 in
Mounting Plate Width
4 1/2 in
Inside Slot Spacing - Length
4.938 in
Outside Slot Spacing - Width
3.375 in
Outside Slot Spacing - Length
5.25 in
Overall Wheel Width
2 1/2 in
Inside Slot Spacing - Width
2.438 in
Mounting Plate Length
6 1/2 in
Mounting Plate Thickness
3/8 in
For Axle Dia.
3/4 in

Details

Caster Temp. Range Available
Yes
Standards
ANSI ICWM
Replacement Wheel
35W177
Extended Lead
No
Caster Brake Included
Yes
Number of Wheels
1
Caster Frame Material
Steel
Wheel Color
Green
Features
Floor Protective
Caster Stem Type
No Stem/Plate Included
Caster Brake Type
Total Lock
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Core Color
Gray
Non-Marking
Yes
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Load Rating
1600 lb
Caster Sub-Type
Swivel
Thread Guards
No
Caster Plate Hole Pattern
A
Frame Finish
Enamel
Includes
Spanner Bushing
Item
Plate Caster
System of Measurement
Inch
Includes Thread Guards
No
Wheel Bearing Type
Ball
Load Rating Range
1000 to 2999 lb
Swivel Raceway Type
Single Ball
Wheel/Tread Hardness Rating
Firm
Wheel Core Material
Iron
Swivel Construction
Kingpin
Swivel Lock Type
4-Position Directional Lock
Number of Mounting Holes
4
Tread Shape
Standard
Wheel/Tread Material
Polyurethane
Wheel/Tread Color
Green
Wheel Type
Flat-Free
Wheel Hardness Rating
95 Shore A
Load Capacity - Maximum
1,600 lb
For Surface Type
Concrete
Mounting Plate Shape
Rectangle
Brake Location
Right Side
Mounting Hole Type
Slot
Wheel Core Type
Solid
Operating Temperature Range
-40 Degrees to 200 Degrees F
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature - Maximum
200 Degrees F

Description

Swivel, Plate Caster, Load Rating 1600 lb, Swivel Lock Type 4-Position Directional Lock, Wheel Dia. 6 in, Wheel Width 2 1/2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Total Lock, Tread Shape Standard
