Shop HAMILTON

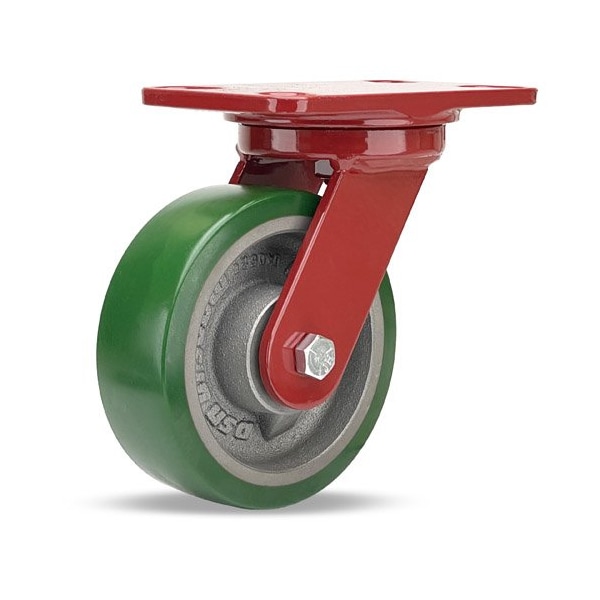

Plate Caster, Swivel, Polyurethane, 7 3/4"H

  • Mfr # S-HS-6DB

  • Zoro # G4334793

product price:
$
161.99
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Swivel
Wheel Width
2 in
Features
Floor Protective
Caster Brake Included
No
Includes
Spanner Bushing
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
S-HS-6DB
Zoro #
G4334793
UPC #
-
Country of Origin
United States

Dimensions

Wheel Width
2 in
Mounting Bolt Dia.
1/2 in
Overall Height
7-3/4"
Stem Dia.
No Stem
Wheel Dia.
6 in
Mounting Plate Size
4 1/2 in x 6 1/2 in
Mounting Height
7 3/4 in
Overall Wheel Width
2 in
Inside Slot Spacing - Width
2.438 in
For Axle Dia.
1/2 in
Mounting Plate Thickness
5/16 in
Inside Slot Spacing - Length
4.938 in
Mounting Plate Width
4 1/2 in
Mounting Plate Length
6 1/2 in
Outside Slot Spacing - Length
5.25 in
Outside Slot Spacing - Width
3.375 in

Details

Caster Sub-Type
Swivel
Features
Floor Protective
Caster Brake Included
No
Includes
Spanner Bushing
Caster Temp. Range Available
Yes
Wheel Color
Green
Non-Marking
Yes
Item
Plate Caster
Load Rating
1200 lb
Frame Finish
Enamel
Replacement Wheel
4DU68
Extended Lead
No
Caster Frame Material
Steel
Core Color
Gray
Thread Guards
No
Number of Wheels
1
Caster Plate Hole Pattern
A
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Caster Stem Type
No Stem/Plate Included
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Standards
ANSI ICWM
System of Measurement
Inch
Caster Brake Type
No Brake
Includes Thread Guards
No
Wheel Bearing Type
Ball
Swivel Construction
Kingpin
Wheel Core Material
Iron
Load Rating Range
1000 to 2999 lb
Wheel/Tread Hardness Rating
Firm
Swivel Raceway Type
Single Ball
Tread Shape
Standard
Number of Mounting Holes
4
Swivel Lock Type
No Lock Included
Wheel/Tread Material
Polyurethane
Wheel/Tread Color
Green
Wheel Type
Flat-Free
Load Capacity - Maximum
1,200 lb
Wheel Hardness Rating
95 Shore A
Wheel Core Type
Solid
For Surface Type
Concrete
Mounting Plate Shape
Rectangle
Mounting Hole Type
Slot
Operating Temperature Range
-40 Degrees to 200 Degrees F
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature - Maximum
200 Degrees F

Description

Swivel, Plate Caster, Load Rating 1200 lb, Swivel Lock Type No Lock Included, Wheel Dia. 6 in, Wheel Width 2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
