  11. Plate Caster, Swivel, Rubber, 8 in., 670 lb, Blk

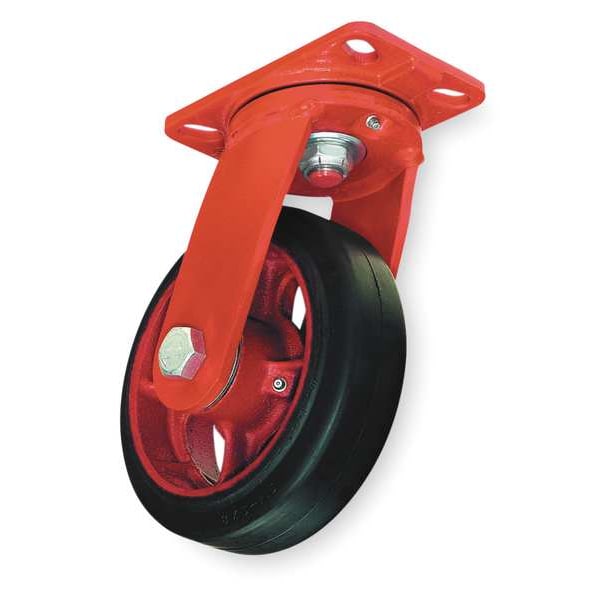

Hamilton Plate Caster, Swivel, Rubber, 8 in., 670 lb, Blk S-FM-8RB - main

Plate Caster, Swivel, Rubber, 8 in., 670 lb, Blk

  • Mfr # S-FM-8RB

  • Zoro # G3199156

product price: $199.99
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Rubber
Caster Brake Type
No Brake
Wheel Dia.
8 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
S-FM-8RB
Zoro #
G3199156
UPC #
-
Country of Origin
United States

Dimensions

Wheel Dia.
8 in
Wheel Width
2 1/2 in
Mounting Height
10 1/4 in
Mounting Plate Size
4 1/2 in x 6 1/2 in
Mounting Plate Thickness
3/8 in
Mounting Bolt Dia.
1/2 in
Overall Height
10-1/4in
Stem Dia.
No Stem
Mounting Plate Length
6 1/2 in
Overall Wheel Width
2 1/2 in
Outside Slot Spacing - Width
3.375 in
Mounting Plate Width
4 1/2 in
Outside Slot Spacing - Length
5.25 in
Inside Slot Spacing - Width
2.438 in
Inside Slot Spacing - Length
4.938 in
For Axle Dia.
3/4 in

Details

Item
Plate Caster
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Rubber
Caster Brake Type
No Brake
Load Rating
670 lb
Wheel Bearing Type
Ball
Wheel/Tread Color
Black
Wheel Hardness Rating
70 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Red
Non-Marking
No
Number of Wheels
1
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Caster Plate Hole Pattern
A
Standards
ANSI ICWM
Features
Floor Protective
Wheel Color
Black
Replacement Wheel
Mfr. No. W-825-RB-3/4
Extended Lead
No
Includes
Spanner Bushing
Thread Guards
No
Caster Brake Included
No
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Caster Temp. Range Available
Yes
Frame Finish
Enamel
Caster Stem Type
No Stem/Plate Included
Load Rating Range
300 to 999 lb
Swivel Raceway Type
Single Ball
Swivel Construction
Kingpin
Wheel Core Material
Iron
Includes Thread Guards
No
Wheel/Tread Hardness Rating
Soft
Swivel Lock Type
No Lock Included
Wheel Type
Flat-Free
Compatible With
W-825-RB-3/4
Load Capacity - Maximum
670 lb
Wheel Core Type
Solid
Mounting Hole Type
Slot
Mounting Plate Shape
Rectangle
For Surface Type
Concrete
Operating Temperature - Maximum
160 Degrees F
Operating Temperature - Minimum
-70 Degrees F
Operating Temperature Range
-70 Degrees to 160 Degrees F

Description

Swivel, Plate Caster, Load Rating 670 lb, Swivel Lock Type No Lock Included, Wheel Dia. 8 in, Wheel Width 2 1/2 in, Wheel/Tread Material Rubber, Wheel Core Material Iron, Non-Marking No, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
