  11. Plate Caster, Swivel, Steel, 13"H

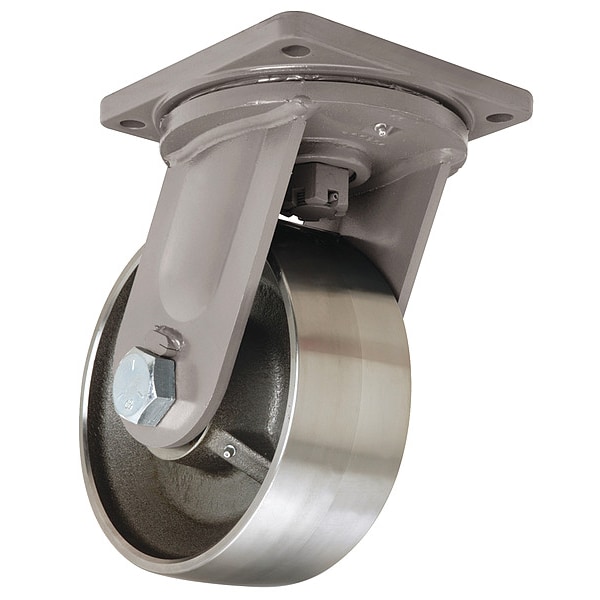

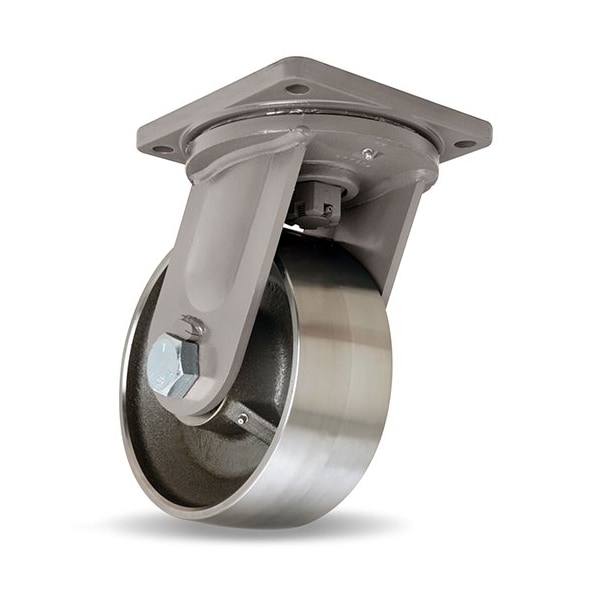

Hamilton Plate Caster, Swivel, Steel, 13"H S-MD-104FST-4SL-HCB - main

Plate Caster, Swivel, Steel, 13"H

  • Mfr # S-MD-104FST-4SL-HCB

  • Zoro # G9071420

product price: $916.99
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Steel
Caster Brake Type
Face Brake
Wheel Dia.
10 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
S-MD-104FST-4SL-HCB
Zoro #
G9071420
UPC #
-
Country of Origin
United States

Dimensions

Wheel Dia.
10 in
Wheel Width
4 in
Mounting Height
13 in
Mounting Plate Size
8 1/2 in x 8 1/2 in
Mounting Plate Thickness
5/8 in
Mounting Bolt Dia.
5/8 in
Swivel Radius
8 3/8 in
Overall Wheel Width
4 in
For Axle Dia.
1 1/4 in
Bolt Hole Spacing - Width
7 in
Mounting Plate Length
8 1/2 in
Bolt Hole Spacing - Length
7 in
Mounting Plate Width
8 1/2 in

Details

Item
Plate Caster
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Steel
Caster Brake Type
Face Brake
Load Rating
18,000 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Roller
Wheel/Tread Color
Silver
Wheel Hardness Rating
170 BHN
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Silver
Non-Marking
No
Number of Wheels
1
Outside Bolt Hole Spacing
7 in x 7 in
Inside Bolt Hole Spacing
7 in x 7 in
Caster Plate Hole Pattern
D
ESD Conductive
Yes
Load Rating Range
6000 lb and Greater
For Surface Type
Concrete
Swivel Lock Type
4-Position Directional Lock
Swivel Raceway Type
Roller
Swivel Construction
Kingpin
Frame Finish
Powder Coated
Wheel Type
Flat-Free
With Toe Plate
No
Frame Color
Silver
Includes Spanner Bushing
Yes
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Standards
ANSI ICWM
Includes Mounting Fasteners
No
Wheel Core Material
Steel
NSF Listed
No
Wheel/Tread Hardness Rating
Extra Hard
Swivel Bearing Seal Type
Open
Wheel Core Type
Solid
Swivel Lead
3 in
Wheel Bearing Material
Steel
Includes Thread Guards
No
Series
Maxi-Duty
Tire Style
Tubeless
Leveling Caster
No
Operating Temperature Range
-40 Degrees to 320 Degrees F
Frame Construction
Forged
Brake Location
Face
Tread
Flat
Load Capacity - Maximum
18,000 lb
Mounting Hole Type
Hole
Mounting Plate Shape
Rectangle

Description

Swivel, Plate Caster, Load Rating 18,000 lb, Swivel Lock Type 4-Position Directional Lock, Wheel Dia. 10 in, Wheel Width 4 in, Wheel/Tread Material Steel, Wheel Core Material Steel, Non-Marking No, Number of Wheels 1, Caster Brake Type Face Brake, Tread Shape Standard
