  11. Plate Caster, Swivel, Steel, 17 1/8"H

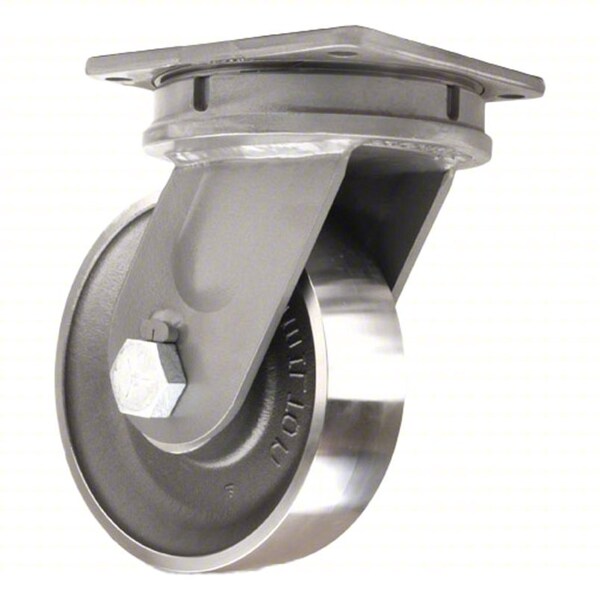

Hamilton Plate Caster, Swivel, Steel, 17 1/8"H S-ZFMD-13FST - main

Plate Caster, Swivel, Steel, 17 1/8"H

  • Mfr # S-ZFMD-13FST

  • Zoro # G214867724

product price: $848.99
/ea
Free Shipping & Returns

Key Features

Wheel/Tread Material
Steel
Caster Brake Type
No Brake
Wheel Dia.
10 in
Wheel Width
3 in
Mounting Height
17 1/8 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
S-ZFMD-13FST
Zoro #
G214867724
UPC #
-
Country of Origin
United States

Dimensions

Wheel Dia.
10 in
Wheel Width
3 in
Mounting Height
17 1/8 in
Mounting Plate Thickness
5/8 in
Mounting Bolt Dia.
5/8 in
For Axle Dia.
1 1/4 in
Mounting Plate Length
8 1/2 in
Bolt Hole Spacing - Length
7 in
Bolt Hole Spacing - Width
7 in
Hub Length
3 1/4 in
Mounting Plate Width
8 1/2 in
Overall Wheel Width
3 in

Details

Item
Plate Caster
Caster Sub-Type
Swivel
Wheel/Tread Material
Steel
Caster Brake Type
No Brake
Caster Mounting Type
Plate
Wheel Bearing Type
Roller
Wheel/Tread Color
Clear
Wheel Hardness Rating
170 BHN
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Clear
Non-Marking
Yes
Number of Wheels
1
Frame Finish
Powder Coated
Wheel Type
Flat-Free
Swivel Construction
Kingpinless
Series
ZFMD
Features
Durability, High Relative Cost, Low Cushioning, Quiet Operation, Very High Relative Capacity
Frame Construction
Forged
For Surface Type
Concrete
Mounting Plate Shape
Square
Includes Thread Guards
No
Swivel Bearing Seal Type
Sealed
Mounting Hole Type
Hole
Operating Temperature - Minimum
-40 Degrees F
Swivel Raceway Type
Precision Tapered Roller
Operating Temperature - Maximum
320 Degrees F
Load Capacity - Maximum
16,000 lb
Wheel Core Type
Solid

Description

Swivel, Plate Caster, Wheel Dia. 10 in, Wheel Width 3 in, Wheel/Tread Material Steel, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
