Shop HAMILTON

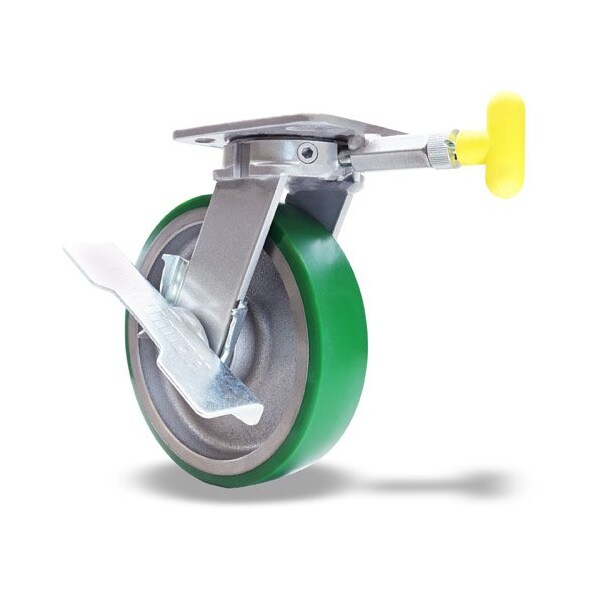

Plt Cstr, Kgpnls Swl, Ply, 8 in, 1500 lb, Grn

  • Mfr # S-ZFWH-8DB-4SL-FB

  • Zoro # G0489575

product price:
$
249.99
/ea
Free Shipping & Returns

Key Features

Thread Guards
No
Wheel Color
Green
Extended Lead
No
Includes
Brake
Load Rating
1500 lb
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
S-ZFWH-8DB-4SL-FB
Zoro #
G0489575
UPC #
-
Country of Origin
United States

Dimensions

Wheel Dia.
8 in
Overall Height
9-1/2"
Mounting Bolt Dia.
3/8 in
Wheel Width
2 in
Mounting Plate Size
4 in x 5 in
Mounting Height
9 1/2 in
Inside Slot Spacing - Length
3 in
Inside Slot Spacing - Width
2.625 in
Mounting Plate Length
5 in
Outside Slot Spacing - Length
3.625 in
Mounting Plate Width
4 in
Overall Wheel Width
2 in
Mounting Plate Thickness
1/4 in
For Axle Dia.
1/2 in
Outside Slot Spacing - Width
3 in

Details

Thread Guards
No
Wheel Color
Green
Extended Lead
No
Includes
Brake
Load Rating
1500 lb
Caster Brake Type
Total Lock
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Caster Temp. Range Available
Yes
Caster Frame Material
Steel
Frame Finish
Enamel
Caster Sub-Type
Swivel
Core Color
Gray
Replacement Wheel
4DU70
Inside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Features
Sealed Swivel Bearing
Caster Plate Hole Pattern
B
Caster Brake Included
Yes
Number of Wheels
1
Item
Plate Caster
Outside Bolt Hole Spacing
3 in x 3 in
Standards
ANSI ICWM
Non-Marking
Yes
Wheel Bearing Type
Ball
Swivel Raceway Type
Single Ball
Number of Mounting Holes
4
Load Rating Range
1000 to 2999 lb
Wheel Core Material
Polyurethane
Swivel Lock Type
4-Position Directional Lock
Includes Thread Guards
No
Tread Shape
Standard
Swivel Construction
Kingpinless
Wheel/Tread Hardness Rating
Firm
Wheel/Tread Material
Polyurethane
Wheel/Tread Color
Green
Wheel Type
Flat-Free
Load Capacity - Maximum
1,500 lb
Wheel Hardness Rating
95 Shore A
Brake Location
Right Side
Mounting Plate Shape
Rectangle
For Surface Type
Concrete
Mounting Hole Type
Slot
Wheel Core Type
Solid
Operating Temperature Range
-40 Degrees to 200 Degrees F
Operating Temperature - Maximum
200 Degrees F
Operating Temperature - Minimum
-40 Degrees F

Description

Swivel, Plate Caster, Load Rating 1500 lb, Swivel Lock Type 4-Position Directional Lock, Wheel Dia. 8 in, Wheel Width 2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Polyurethane, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Total Lock, Tread Shape Standard
