Shop HAMILTON

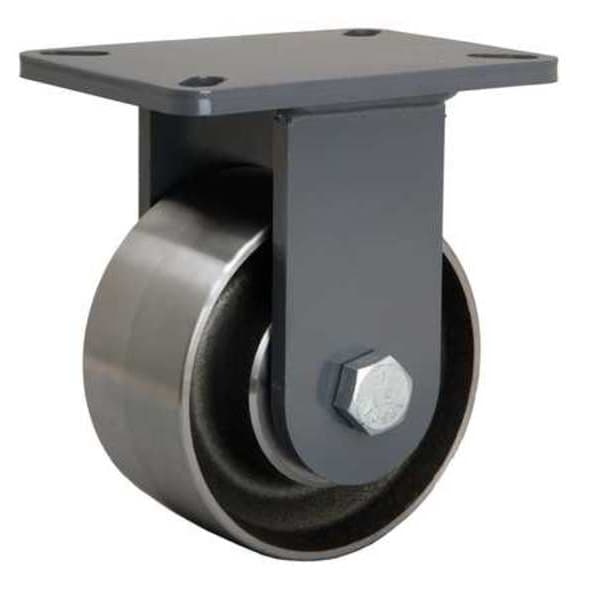

Plt Cstr, Rgd, Forged Steel, 6 in., 4000 lb.

  • Mfr # R-CH-63FSB
  • Zoro # G2221414
product price:
$
178.99
/ea
Free Shipping & Returns

Key Features

Wheel Width
3 in
Load Rating
4000 lb
Caster Brake Included
No
Inside Bolt Hole Spacing
4-1/8 in x 6-1/8 in
Caster Plate Hole Pattern
A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
R-CH-63FSB
Zoro #
G2221414
UPC #
-
Country of Origin
United States

Dimensions

Wheel Width
3 in
Wheel Dia.
6 in
Overall Height
8"
Mounting Bolt Dia.
1/2 in
Mounting Plate Size
5 1/4 in x 7 1/4 in
Mounting Height
8 in
For Axle Dia.
3/4 in
Outside Slot Spacing - Width
4.125 in
Inside Slot Spacing - Length
5.25 in
Mounting Plate Length
7 1/4 in
Mounting Plate Width
5 1/4 in
Mounting Plate Thickness
3/8 in
Outside Slot Spacing - Length
6.125 in
Overall Wheel Width
3 in
Inside Slot Spacing - Width
3.375 in

Details

Load Rating
4000 lb
Caster Brake Included
No
Inside Bolt Hole Spacing
4-1/8 in x 6-1/8 in
Caster Plate Hole Pattern
A
Standards
ANSI ICWM
Wheel Color
Silver
Caster Sub-Type
Rigid
Caster Temp. Range Available
Yes
Caster Frame Material
Steel
Non-Marking
Yes
Frame Finish
Enamel
Number of Wheels
1
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Thread Guards
No
Item
Plate Caster
Core Color
Silver
Replacement Wheel
4DU74
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Includes
Spanner Bushing
Extended Lead
No
Number of Mounting Holes
4
Wheel/Tread Hardness Rating
Extra Hard
Includes Thread Guards
No
Tread Shape
Standard
Load Rating Range
3000 to 5999 lb
Swivel Lock Type
No Lock Included
Wheel Core Material
Steel
Caster Brake Type
No Brake
Swivel Construction
Kingpin
Wheel Bearing Type
Ball
Wheel/Tread Material
Steel
Wheel/Tread Color
Silver
Wheel Type
Flat-Free
System of Measurement
Inch
Load Capacity - Maximum
4,000 lb
Wheel Core Type
Solid
For Surface Type
Concrete
Mounting Hole Type
Slot
Wheel Hardness Rating
170 BHN
Mounting Plate Shape
Rectangle
Operating Temperature Range
-40 Degrees to 200 Degrees F
Operating Temperature - Maximum
200 Degrees F
Operating Temperature - Minimum
-40 Degrees F

Description

Rigid, Plate Caster, Load Rating 4000 lb, Swivel Lock Type No Lock Included, Wheel Dia. 6 in, Wheel Width 3 in, Wheel/Tread Material Steel, Wheel Core Material Steel, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
