Shop HAMILTON

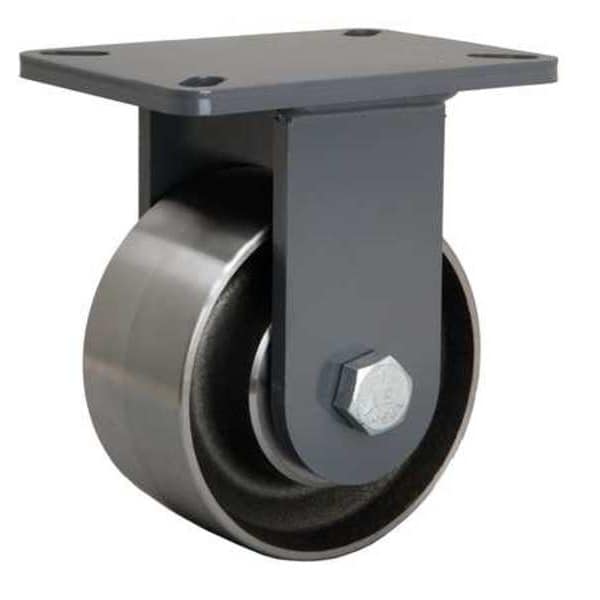

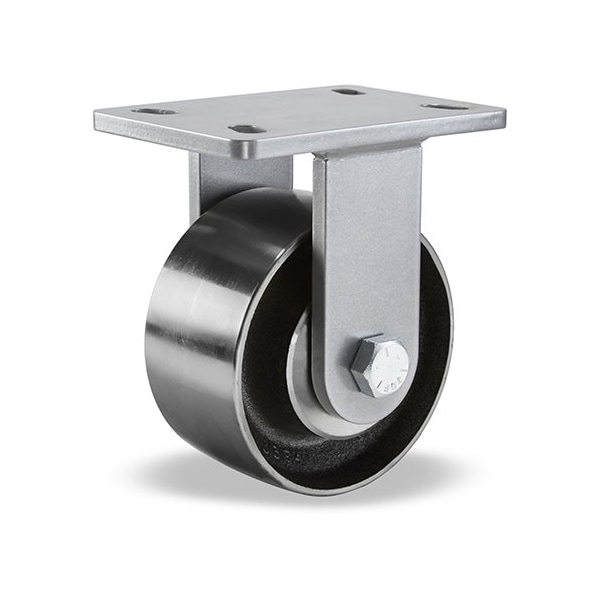

Plt Cstr, Rgd, Frgd Stl, 6 in, 4000 lb., Slvr

  • Mfr # R-SEC-63FSB
  • Zoro # G3487547
product price:
$
219.99
/ea
Free Shipping & Returns

Key Features

Caster Brake Included
No
Wheel Dia.
6 in
Overall Height
8"
Inside Bolt Hole Spacing
4-1/8 in x 6-1/8 in
Number of Wheels
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
R-SEC-63FSB
Zoro #
G3487547
UPC #
-
Country of Origin
United States
Caster Brake Included
No
Inside Bolt Hole Spacing
4-1/8 in x 6-1/8 in
Number of Wheels
1
Caster Temp. Range Available
Yes
Item
Plate Caster
Caster Plate Hole Pattern
A
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Caster Sub-Type
Rigid
Wheel Color
Silver
Standards
ANSI ICWM
Core Color
Silver
Thread Guards
No
Replacement Wheel
4DU74
Caster Frame Material
Steel
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Frame Finish
Enamel
Non-Marking
Yes
Extended Lead
No
Load Rating
6000 lb
Includes
Spanner Bushing
Wheel Bearing Type
Ball
Wheel Core Material
Steel
Tread Shape
Standard
Number of Mounting Holes
4
Load Rating Range
Extra Super Duty
Wheel/Tread Hardness Rating
Extra Hard
Caster Brake Type
No Brake
Swivel Lock Type
No Lock Included
Includes Thread Guards
No
Wheel/Tread Material
Steel
Wheel/Tread Color
Silver
Wheel Type
Flat-Free
Load Capacity - Maximum
4,000 lb
For Surface Type
Concrete
Wheel Hardness Rating
170 BHN
Wheel Core Type
Solid
Mounting Hole Type
Slot
Mounting Plate Shape
Rectangle
Operating Temperature Range
-40 Degrees to 200 Degrees F
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature - Maximum
200 Degrees F

Dimensions

Wheel Dia.
6 in
Overall Height
8"
Wheel Width
3 in
Mounting Bolt Dia.
1/2 in
Mounting Height
8 in
Mounting Plate Size
5 1/4 in x 7 1/4 in
Outside Slot Spacing - Width
4.125 in
Mounting Plate Width
5 1/4 in
Mounting Plate Length
7 1/4 in
Overall Wheel Width
3 in
Outside Slot Spacing - Length
6.125 in
Inside Slot Spacing - Width
3.375 in
Inside Slot Spacing - Length
5.25 in
Mounting Plate Thickness
3/8 in
For Axle Dia.
3/4 in

Description

Rigid, Kingpinless Plate Caster, Load Rating 4000 lb, Swivel Lock Type No Lock Included, Wheel Dia. 6 in, Wheel Width 3 in, Wheel/Tread Material Steel, Wheel Core Material Forged Steel, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake Included, Tread Shape Standard
