  6. Plte Caster, Rgd, Cast Iron, 4 in., 1000 lb.

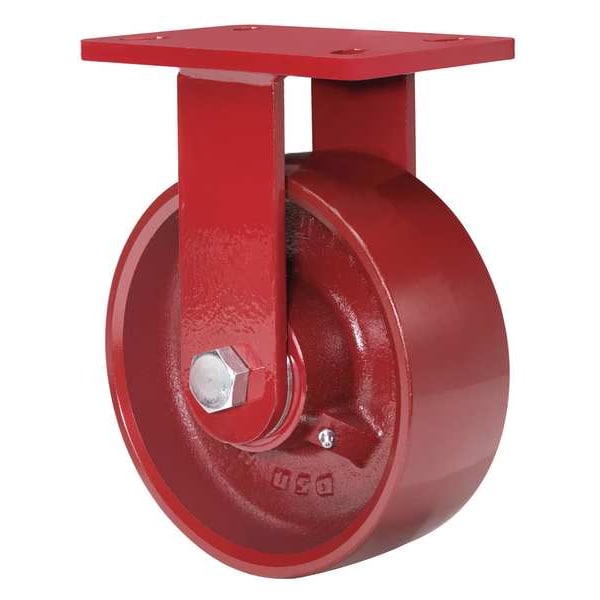

Hamilton Plte Caster, Rgd, Cast Iron, 4 in., 1000 lb. R-HS-4MB - main

Plte Caster, Rgd, Cast Iron, 4 in., 1000 lb.

  • Mfr # R-HS-4MB

  • Zoro # G6126477

product price:  $74.59
/ea

Key Features

Core Color
Red
Wheel Width
2 in
Frame Finish
Enamel
Replacement Wheel
4DU77
Load Rating
1000 lb
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
R-HS-4MB
Zoro #
G6126477
UPC #
-
Country of Origin
United States

Dimensions

Wheel Width
2 in
Mounting Bolt Dia.
1/2 in
Wheel Dia.
4 in
Overall Height
5-5/8in
Mounting Plate Size
4 1/2 in x 6 1/2 in
Mounting Height
5 5/8 in
Inside Slot Spacing - Length
4.938 in
Inside Slot Spacing - Width
2.438 in
Overall Wheel Width
2 in
Mounting Plate Width
4 1/2 in
Outside Slot Spacing - Width
3.375 in
Mounting Plate Length
6 1/2 in
Outside Slot Spacing - Length
5.25 in
For Axle Dia.
1/2 in
Mounting Plate Thickness
5/16 in

Details

Core Color
Red
Frame Finish
Enamel
Replacement Wheel
4DU77
Load Rating
1000 lb
Caster Plate Hole Pattern
A
Thread Guards
No
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Number of Wheels
1
Caster Temp. Range Available
Yes
Standards
ANSI ICWM
Caster Sub-Type
Rigid
Extended Lead
No
Non-Marking
Yes
Item
Plate Caster
Caster Brake Included
No
Wheel Color
Red
Includes
Spanner Bushing
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Caster Frame Material
Steel
Caster Brake Type
No Brake
Number of Mounting Holes
4
Wheel Core Material
Iron
Wheel Bearing Type
Ball
Swivel Lock Type
No Lock Included
Wheel/Tread Hardness Rating
Extra Hard
Load Rating Range
1000 to 2999 lb
Includes Thread Guards
No
Tread Shape
Standard
Wheel/Tread Material
Iron
Swivel Construction
Kingpin
Wheel/Tread Color
Red
Wheel Type
Flat-Free
System of Measurement
Inch
Load Capacity - Maximum
1,000 lb
Wheel Hardness Rating
170 BHN
For Surface Type
Concrete
Mounting Hole Type
Slot
Mounting Plate Shape
Rectangle
Wheel Core Type
Solid
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature - Maximum
200 Degrees F
Operating Temperature Range
-40 Degrees to 200 Degrees F

Description

Rigid, Plate Caster, Load Rating 1000 lb, Swivel Lock Type No Lock Included, Wheel Dia. 4 in, Wheel Width 2 in, Wheel/Tread Material Iron, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
