Shop HAMILTON

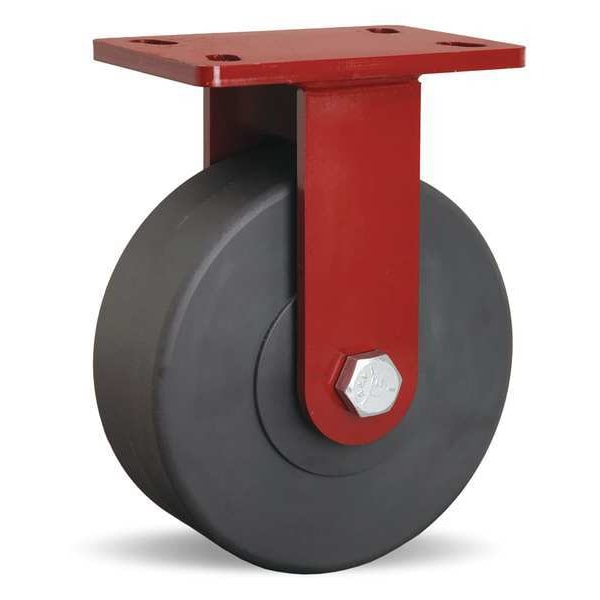

Plte Caster, Rgd, Nylon, 8 in., 3200 lb.

  • Mfr # R-FM-83NYB
  • Zoro # G0383498
product price:
$
340.99
/ea
Free Shipping & Returns

Key Features

Features
Maintenance Free
Caster Sub-Type
Rigid
Wheel Color
Black
Extended Lead
No
Thread Guards
No
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
R-FM-83NYB
Zoro #
G0383498
UPC #
-
Country of Origin
United States

Dimensions

Wheel Width
3 in
Overall Height
10-1/4"
Mounting Bolt Dia.
1/2 in
Wheel Dia.
8 in
Mounting Height
10 1/4 in
Mounting Plate Size
5 in x 7 in
Mounting Plate Width
4 1/2 in
Outside Slot Spacing - Length
5.25 in
Outside Slot Spacing - Width
3.375 in
For Axle Dia.
3/4 in
Inside Slot Spacing - Length
4.938 in
Overall Wheel Width
3 in
Mounting Plate Length
6 1/2 in
Mounting Plate Thickness
3/8 in
Inside Slot Spacing - Width
2.438 in

Details

Features
Maintenance Free
Caster Sub-Type
Rigid
Wheel Color
Black
Extended Lead
No
Thread Guards
No
Standards
ANSI ICWM
Number of Wheels
1
Caster Frame Material
Steel
Frame Finish
Enamel
Replacement Wheel
49H450
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Caster Plate Hole Pattern
A
Caster Brake Included
No
Load Rating
3200 lb
Caster Temp. Range Available
Yes
Core Color
Black
Non-Marking
Yes
Includes
Spanner Bushing
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Item
Plate Caster
Includes Thread Guards
No
Load Rating Range
3000 to 5999 lb
Wheel Core Material
Nylon
Wheel Bearing Type
Ball
Swivel Construction
Kingpinless
Number of Mounting Holes
4
Caster Brake Type
No Brake
Swivel Lock Type
No Lock Included
Tread Shape
Standard
Wheel/Tread Hardness Rating
Hard
Wheel/Tread Material
Nylon
Wheel/Tread Color
Black
Wheel Type
Flat-Free
System of Measurement
Inch
Wheel Hardness Rating
85 Shore D
Load Capacity - Maximum
3,200 lb
Mounting Plate Shape
Rectangle
For Surface Type
Concrete
Wheel Core Type
Solid
Mounting Hole Type
Slot
Operating Temperature - Maximum
200 Degrees F
Operating Temperature - Minimum
-30 Degrees F
Operating Temperature Range
-30 Degrees to 200 Degrees F

Description

Rigid, Plate Caster, Load Rating 3200 lb, Swivel Lock Type No Lock Included, Wheel Dia. 8 in, Wheel Width 3 in, Wheel/Tread Material Nylon, Wheel Core Material Nylon, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
