  11. Plte Caster, Rgd, Nylon, 8 in., 6500 lb.

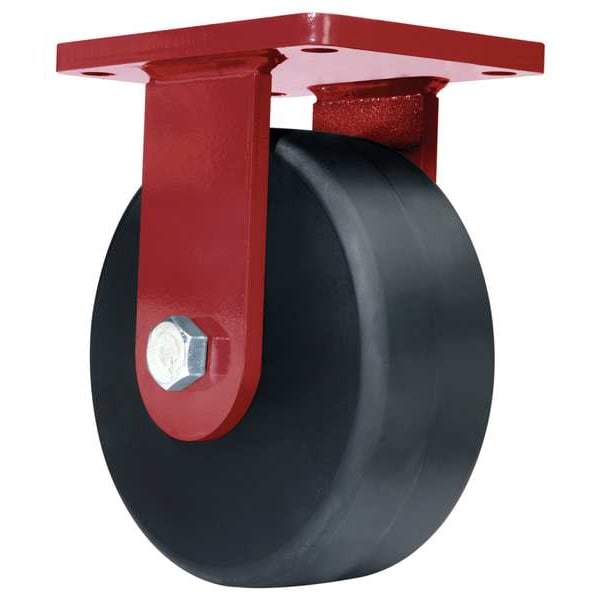

Hamilton Plte Caster, Rgd, Nylon, 8 in., 6500 lb. R-EPSD-83NYB - main

Plte Caster, Rgd, Nylon, 8 in., 6500 lb.

  • Mfr # R-EPSD-83NYB

  • Zoro # G7155346

product price: $327.99
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Rigid
System of Measurement
Inch
Wheel/Tread Material
Nylon
Caster Brake Type
No Brake
Wheel Dia.
8 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
R-EPSD-83NYB
Zoro #
G7155346
UPC #
-
Country of Origin
United States

Dimensions

Wheel Dia.
8 in
Wheel Width
3 in
Mounting Height
10 1/2 in
Mounting Plate Size
6 1/2 in x 7 1/2 in
Mounting Plate Thickness
1/2 in
Mounting Bolt Dia.
1/2 in
Overall Height
10-1/2in
Inside Slot Spacing - Length
5.75 in
Outside Slot Spacing - Width
5.125 in
Outside Slot Spacing - Length
6.25 in
Overall Wheel Width
3 in
Mounting Plate Width
5 1/2 in
Inside Slot Spacing - Width
3.875 in
Mounting Plate Length
7 1/2 in
For Axle Dia.
1 in

Details

Item
Plate Caster
Caster Sub-Type
Rigid
System of Measurement
Inch
Wheel/Tread Material
Nylon
Caster Brake Type
No Brake
Load Rating
7000 lb
Wheel Bearing Type
Ball
Wheel/Tread Color
Black
Wheel Hardness Rating
85 shore D
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Black
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
3-7/8 in x 6-1/4 in
Inside Bolt Hole Spacing
5-1/8 in x 5-3/4 in
Caster Plate Hole Pattern
A
Caster Brake Included
No
Features
Floor Protective
Frame Finish
Enamel
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Extended Lead
No
Wheel Color
Black
Standards
ANSI ICWM
Caster Temp. Range Available
Yes
Includes
Spanner Bushing
Thread Guards
No
Replacement Wheel
23ER67
Wheel Core Material
Nylon
Load Rating Range
6000 lb and Greater
Swivel Lock Type
No Lock Included
Wheel/Tread Hardness Rating
Hard
Includes Thread Guards
No
Wheel Type
Flat-Free
Load Capacity - Maximum
7,000 lb
Wheel Core Type
Solid
For Surface Type
Concrete
Mounting Hole Type
Slot
Mounting Plate Shape
Rectangle
Operating Temperature - Maximum
200 Degrees F
Operating Temperature - Minimum
-30 Degrees F
Operating Temperature Range
-30 Degrees to 200 Degrees F

Description

Rigid, Plate Caster, Load Rating 7000 lb, Swivel Lock Type No Lock Included, Wheel Dia. 8 in, Wheel Width 3 in, Wheel/Tread Material Nylon, Wheel Core Material Nylon, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
