Shop HAMILTON

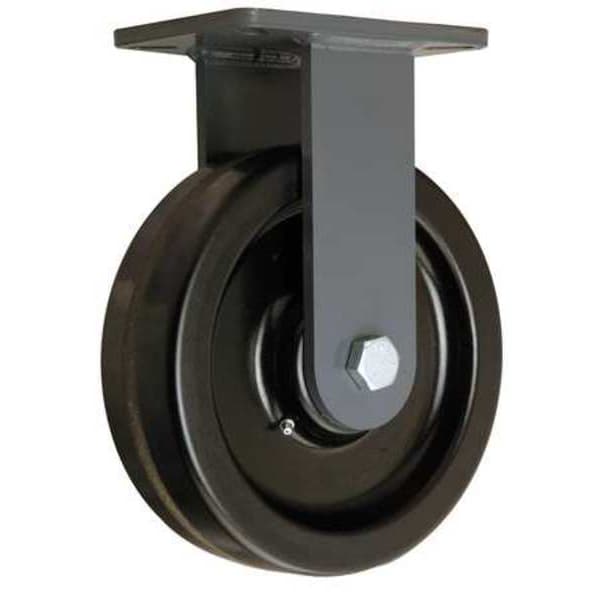

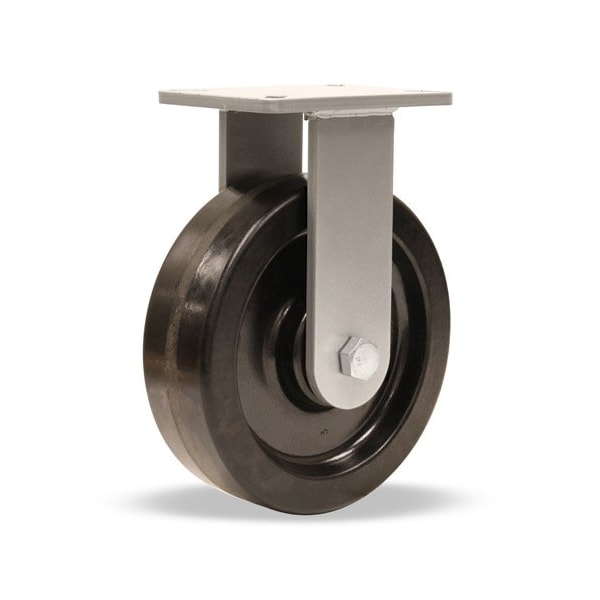

Plte Caster, Rgd, Phenolic, 10 in., 2900 lb.

  • Mfr # R-CH-13PH

  • Zoro # G1465301

product price:
$
125.99
/ea
Free Shipping & Returns

Key Features

Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Core Color
Black
Thread Guards
No
Frame Finish
Enamel
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
R-CH-13PH
Zoro #
G1465301
UPC #
-
Country of Origin
United States
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Core Color
Black
Thread Guards
No
Frame Finish
Enamel
Inside Bolt Hole Spacing
4-1/8 in x 6-1/8 in
Caster Temp. Range Available
Yes
Replacement Wheel
5VJ37
Number of Wheels
1
Non-Marking
Yes
Load Rating
2900 lb
Includes
Spanner Bushing
Extended Lead
No
Caster Frame Material
Steel
Item
Plate Caster
Caster Plate Hole Pattern
A
Caster Brake Included
No
Caster Sub-Type
Rigid
Wheel Color
Black
Standards
ANSI ICWM
Wheel/Tread Hardness Rating
Hard
Caster Brake Type
No Brake
Swivel Construction
Kingpin
Load Rating Range
1000 to 2999 lb
Number of Mounting Holes
4
Tread Shape
Standard
Swivel Lock Type
No Lock Included
Wheel Core Material
Phenolic
Wheel Bearing Type
Roller
Includes Thread Guards
No
Wheel/Tread Material
Phenolic
Wheel/Tread Color
Black
Wheel Type
Flat-Free
System of Measurement
Inch
Wheel Hardness Rating
90 Shore D
Load Capacity - Maximum
2,900 lb
Mounting Hole Type
Slot
For Surface Type
Concrete
Wheel Core Type
Solid
Mounting Plate Shape
Rectangle
Operating Temperature Range
-50 Degrees to 300 Degrees F
Operating Temperature - Maximum
300 Degrees F
Operating Temperature - Minimum
-50 Degrees F

Description

Rigid, Plate Caster, Load Rating 2900 lb, Swivel Lock Type No Lock Included, Wheel Dia. 10 in, Wheel Width 3 in, Wheel/Tread Material Phenolic, Wheel Core Material Phenolic, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
