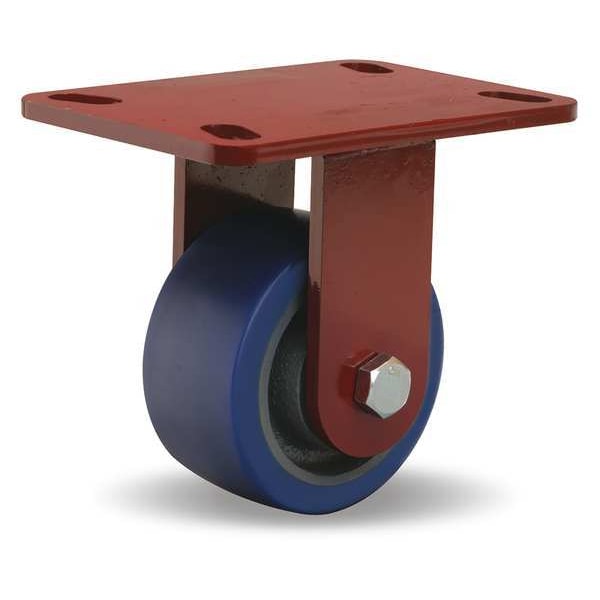

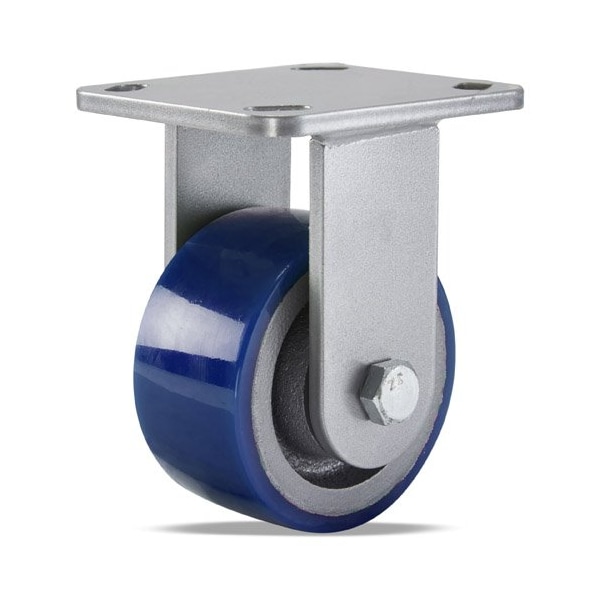

Plte Caster, Rgd, Poly, 4 in., 600 lb., Blue
- Zoro #: G0489487
- Mfr #: R-ZFWH-4SPB
Hamilton #R-ZFWH-4SPB Specifications
| |
| Thread Guards: No | Wheel Width: 2 in |
| Durometer: 80 Shore A | Frame Finish: Enamel |
| Extended Lead: No | Caster Swivel Lock Type: No Lock Included |
| Mounting Bolt Dia.: 1/2 in | Plate Thickness: 1/4" |
| Caster Frame Material: Steel | Caster Temp. Range Available: Yes |
| Plate Size: 4" x 4-1/2" | Caster Wheel Shape: Standard |
| Caster Product Group: Rigid Caster | Application: Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Ergonomic Applications, Material Carts, Premium Forged Steel Casters |
| Caster Plate Size: 4" x 4-1/2" | Caster Temp. Range: -50 Degrees to 175 Degrees F |
| Caster Plate Thickness: 1/4" | Replacement Wheel: 49H435 |
| Caster Core Material: Polyurethane | Caster Wheel/Tread Material: Polyurethane |
| Includes: Spanner Bushing | Frame Material: Steel |
| Overall Height: 5-5/8" | Caster Max. Temp.: 175 Degrees F |
| Outside Bolt Hole Spacing: 3 in x 3 in | Features: Maintenance Free |
| Caster Sub-Type: Rigid | Item: Kingpinless Plate Caster |
| Caster Min. Temp.: -50 Degrees F | Caster Brake Included: No |
| Number of Wheels: 1 | Standards: ICWM |
| Caster Load Rating Range: Light-Medium Duty | Plate Caster Bolt Hole Pattern: B |
| Load Rating: 600 lb | Non-Marking: Yes |
| Wheel Dia.: 4 in | Inside Bolt Hole Spacing: 2-5/8 in x 3-5/8 in |
| Core Color: Gray | Caster Wheel Bearings: Ball |
| Wheel Color: Blue | Caster Plate Hole Pattern: B |
| Swivel Construction: Kingpinless | Wheel/Tread Hardness Rating: Soft |
| Wheel Bearing Type: Precision Ball | Caster Brake Type: No Brake Included |
| Wheel Core Material: Polyurethane | Mounting Plate Bolt Hole Pattern: B |
| Wheel/Tread Hardness: 82 Shore A | Tread Shape: Standard |
| Load Rating Range: 300 to 999 lb | Includes Thread Guards: No |
| Swivel Lock Type: No Lock Included | Mounting Plate Size: 4 in x 4 1/2 in |
| Number of Mounting Holes: 4 | Mounting Height: 5 5/8 in |
| Wheel/Tread Material: Polyurethane | Wheel/Tread Color: Blue |
| Country of Origin (subject to change): United States | |
Help us improve our product informationDescription
Rigid, Kingpinless Plate Caster, Load Rating 600 lb, Swivel Lock Type No Lock Included, Wheel Dia. 4 in, Wheel Width 2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Polyurethane, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake Included, Tread Shape Standard
