Shop HAMILTON

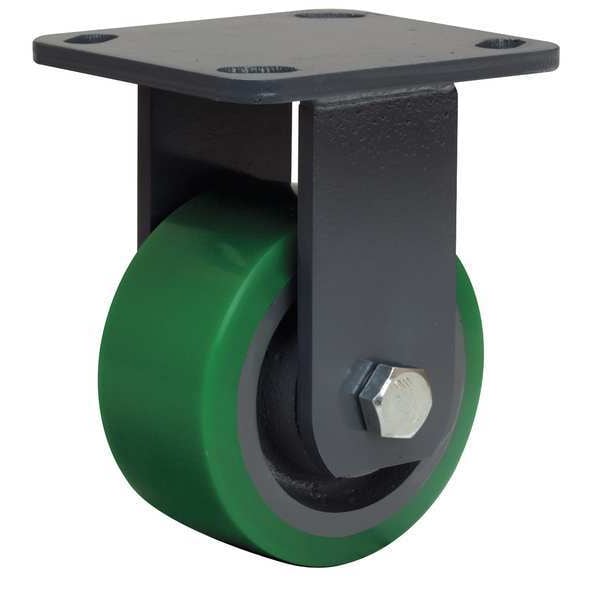

Plte Caster, Rgd, Poly, 4 in., 750 lb., Green

  • Mfr # R-WH-4DB
  • Zoro # G3397572
product price:
$
84.69
/ea

Key Features

Caster Sub-Type
Rigid
Caster Frame Material
Steel
Inside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Outside Bolt Hole Spacing
3 in x 3 in
Frame Finish
Enamel
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
R-WH-4DB
Zoro #
G3397572
UPC #
-
Country of Origin
United States

Dimensions

Wheel Width
2 in
Mounting Bolt Dia.
1/2 in
Wheel Dia.
4 in
Overall Height
5-5/8"
Mounting Plate Size
4 in x 4 1/2 in
Mounting Height
5 5/8 in
Mounting Plate Length
5 in
Inside Slot Spacing - Width
2.625 in
Outside Slot Spacing - Length
3.625 in
Mounting Plate Width
4 in
Inside Slot Spacing - Length
3 in
Mounting Plate Thickness
1/4 in
Overall Wheel Width
2 in
Outside Slot Spacing - Width
3 in
For Axle Dia.
1/2 in

Details

Caster Sub-Type
Rigid
Caster Frame Material
Steel
Inside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Outside Bolt Hole Spacing
3 in x 3 in
Frame Finish
Enamel
Thread Guards
No
Wheel Color
Green
Caster Brake Included
No
Extended Lead
No
Number of Wheels
1
Caster Plate Hole Pattern
B
Includes
Spanner Bushing
Features
Floor Protective
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Load Rating
750 lb
Replacement Wheel
4DU67
Standards
ANSI ICWM
Core Color
Gray
Caster Temp. Range Available
Yes
Non-Marking
Yes
Item
Plate Caster
Swivel Construction
Kingpin
Tread Shape
Standard
Wheel Bearing Type
Ball
Wheel Core Material
Iron
Load Rating Range
300 to 999 lb
Swivel Lock Type
No Lock Included
Number of Mounting Holes
4
Wheel/Tread Hardness Rating
Firm
Caster Brake Type
No Brake
Includes Thread Guards
No
Wheel/Tread Material
Polyurethane
Wheel/Tread Color
Green
Wheel Type
Flat-Free
System of Measurement
Inch
Load Capacity - Maximum
750 lb
Wheel Hardness Rating
95 Shore A
Wheel Core Type
Solid
Mounting Hole Type
Slot
For Surface Type
Concrete
Mounting Plate Shape
Rectangle
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature - Maximum
200 Degrees F
Operating Temperature Range
-40 Degrees to 200 Degrees F

Description

Rigid, Plate Caster, Load Rating 750 lb, Swivel Lock Type No Lock Included, Wheel Dia. 4 in, Wheel Width 2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
