Shop HAMILTON

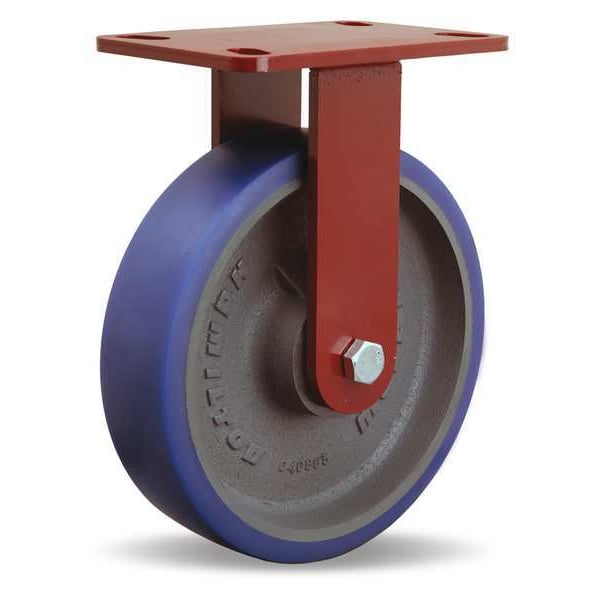

Plte Caster, Rgd, Poly, 8 in., 1200 lb., Blue

  • Mfr # R-ZFWH-8SPB

  • Zoro # G0383671

product price:
$
142.99
/ea
Free Shipping & Returns

Key Features

Replacement Wheel
4DB71
Caster Brake Included
No
Caster Sub-Type
Rigid
Outside Bolt Hole Spacing
3 in x 3 in
Overall Height
9-1/2"
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
R-ZFWH-8SPB
Zoro #
G0383671
UPC #
-
Country of Origin
United States

Dimensions

Overall Height
9-1/2"
Wheel Dia.
8 in
Wheel Width
2 in
Mounting Bolt Dia.
1/2 in
Mounting Height
9 1/2 in
Mounting Plate Size
4 in x 4 1/2 in
Overall Wheel Width
2 in
Inside Slot Spacing - Length
3 in
For Axle Dia.
1/2 in
Mounting Plate Thickness
1/4 in
Inside Slot Spacing - Width
2.625 in
Outside Slot Spacing - Length
3.625 in
Mounting Plate Length
5 in
Outside Slot Spacing - Width
3 in
Mounting Plate Width
4 in

Details

Replacement Wheel
4DB71
Caster Brake Included
No
Caster Sub-Type
Rigid
Outside Bolt Hole Spacing
3 in x 3 in
Caster Frame Material
Steel
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Non-Marking
Yes
Load Rating
1200 lb
Frame Finish
Enamel
Caster Temp. Range Available
Yes
Thread Guards
No
Extended Lead
No
Features
Maintenance Free
Core Color
Gray
Wheel Color
Blue
Standards
ANSI ICWM
Caster Plate Hole Pattern
B
Inside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Number of Wheels
1
Includes
Spanner Bushing
Item
Plate Caster
Load Rating Range
1000 to 2999 lb
Number of Mounting Holes
4
Wheel Core Material
Polyurethane
Wheel/Tread Hardness Rating
Soft
Tread Shape
Standard
Swivel Lock Type
No Lock Included
Caster Brake Type
No Brake
Swivel Construction
Kingpinless
Wheel Bearing Type
Ball
Includes Thread Guards
No
Wheel/Tread Material
Polyurethane
Wheel/Tread Color
Blue
Wheel Type
Flat-Free
Wheel Hardness Rating
82 Shore A
Load Capacity - Maximum
1,200 lb
Mounting Plate Shape
Rectangle
For Surface Type
Concrete
Wheel Core Type
Solid
Mounting Hole Type
Slot
Operating Temperature - Minimum
-50 Degrees F
Operating Temperature - Maximum
175 Degrees F
Operating Temperature Range
-50 Degrees to 175 Degrees F

Description

Rigid, Plate Caster, Load Rating 1200 lb, Swivel Lock Type No Lock Included, Wheel Dia. 8 in, Wheel Width 2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Polyurethane, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
