  11. Plte Caster, Rgd, Poly, 8 in., 1800 lb, Rd, B
This item is Discontinued.

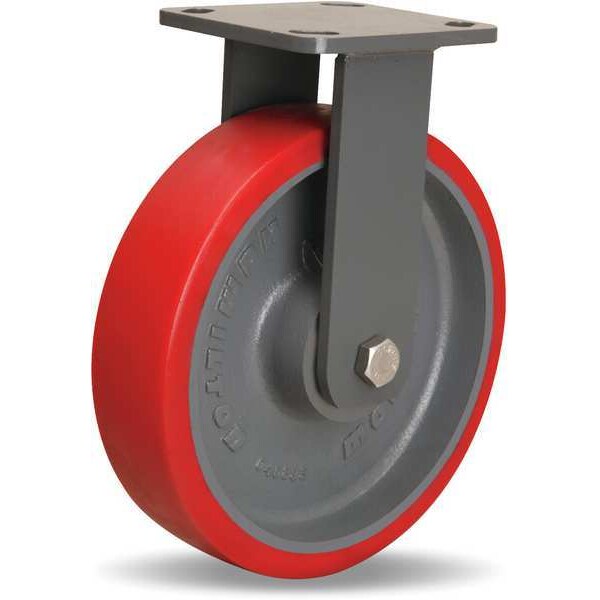

Hamilton Plte Caster, Rgd, Poly, 8 in., 1800 lb, Rd, B R-WH-8TRB

Plte Caster, Rgd, Poly, 8 in., 1800 lb, Rd, B (Discontinued)

  • Mfr # R-WH-8TRB
  • Zoro # G7261615
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
R-WH-8TRB
Zoro #
G7261615
UPC #
-
Country of Origin
United States

Dimensions

Wheel Dia.
8 in
Wheel Width
2 in
Mounting Height
9 1/2 in
Mounting Plate Size
4 in x 4 1/2 in
Mounting Bolt Dia.
1/2 in
Caster Plate Thickness
1/4"
Plate Thickness
1/4"
Plate Size
4" x 4-1/2"
Overall Height
9-1/2"
Caster Plate Size
4" x 4-1/2"

Details

Item
Plate Caster
Caster Brake Included
No
Caster Sub-Type
Rigid
Caster Load Rating Range
Medium-Duty
System of Measurement
Inch
Caster Wheel Shape
Standard
Wheel/Tread Material
Nylon
Caster Wheel/Tread Material
Polyurethane
Caster Brake Type
No Brake
Load Rating
1400 lb
Wheel Bearing Type
Ball
Wheel/Tread Color
Red
Wheel Hardness Rating
94 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Gray
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
3 in x 3 in
Inside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Caster Plate Hole Pattern
B
Frame Finish
Enamel
Frame Material
Steel
Caster Wheel Bearings
Ball
Replacement Wheel
49H441
Caster Max. Temp.
200 Degrees F
Caster Product Group
Rigid Caster
Features
Floor Protective
Durometer
90 Shore A
Plate Caster Bolt Hole Pattern
B
Caster Temp. Range
-40 Degrees to 200 Degrees F
Caster Swivel Lock Type
No Lock Included
Thread Guards
No
Wheel Color
Red
Extended Lead
No
Caster Core Material
Cast Iron
Caster Temp. Range Available
Yes
Includes
Spanner Bushing
Caster Min. Temp.
-40 Degrees F
Standards
ANSI ICWM
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Wheel/Tread Hardness
94 Shore A
Load Rating Range
1000 to 2999 lb
Wheel Core Material
Iron
Wheel/Tread Hardness Rating
Firm
Includes Thread Guards
No
Mounting Plate Bolt Hole Pattern
B
Swivel Construction
Kingpin
Swivel Lock Type
No Lock Included
Load Capacity - Maximum
1,400 lb

Description

Rigid, Plate Caster, Load Rating 1400 lb, Swivel Lock Type No Lock Included, Wheel Dia. 8 in, Wheel Width 2 in, Wheel/Tread Material Nylon, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
