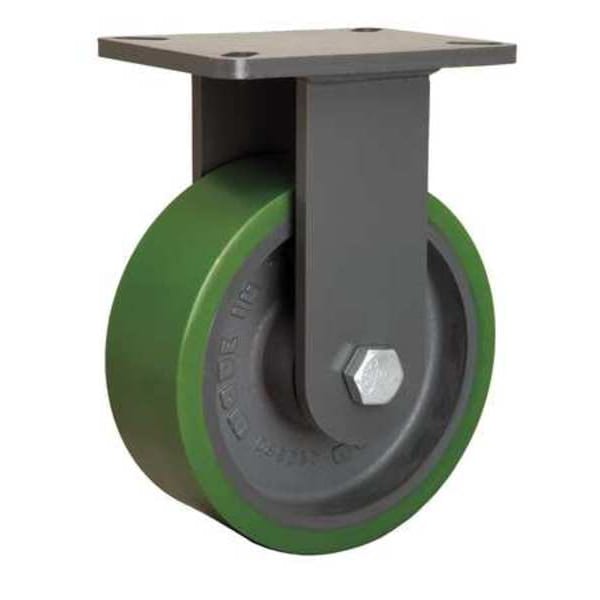

Hamilton Plte Caster, Rgd, Poly, 8 in., 2500 lb. R-CH-83DB - main

Plte Caster, Rgd, Poly, 8 in., 2500 lb.

  • Mfr # R-CH-83DB

  • Zoro # G1099314

product price:  $225.99
/ea
Free Shipping & Returns

Key Features

Caster Frame Material
Steel
Wheel Dia.
8 in
Wheel Color
Green
Caster Plate Hole Pattern
A
Number of Wheels
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
R-CH-83DB
Zoro #
G1099314
UPC #
-
Country of Origin
United States

Dimensions

Wheel Dia.
8 in
Overall Height
10-1/2"
Wheel Width
3 in
Mounting Bolt Dia.
1/2 in
Mounting Height
10 1/2 in
Mounting Plate Size
5 1/4 in x 7 1/4 in
Mounting Plate Width
5 1/4 in
Outside Slot Spacing - Length
6.125 in
Outside Slot Spacing - Width
4.125 in
For Axle Dia.
3/4 in
Mounting Plate Thickness
3/8 in
Inside Slot Spacing - Length
5.25 in
Mounting Plate Length
7 1/4 in
Overall Wheel Width
3 in
Inside Slot Spacing - Width
3.375 in

Details

Caster Frame Material
Steel
Wheel Color
Green
Caster Plate Hole Pattern
A
Number of Wheels
1
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Standards
ANSI ICWM
Inside Bolt Hole Spacing
4-1/8 in x 6-1/8 in
Replacement Wheel
4DU71
Includes
Spanner Bushing
Extended Lead
No
Caster Brake Included
No
Core Color
Gray
Thread Guards
No
Frame Finish
Enamel
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Features
Floor Protective
Load Rating
2500 lb
Item
Plate Caster
Caster Sub-Type
Rigid
Caster Temp. Range Available
Yes
Non-Marking
Yes
Caster Brake Type
No Brake
Load Rating Range
1000 to 2999 lb
Number of Mounting Holes
4
Wheel Bearing Type
Ball
Tread Shape
Standard
Swivel Lock Type
No Lock Included
Swivel Construction
Kingpin
Wheel Core Material
Iron
Includes Thread Guards
No
Wheel/Tread Hardness Rating
Firm
Wheel/Tread Material
Polyurethane
Wheel/Tread Color
Green
Wheel Type
Flat-Free
System of Measurement
Inch
Load Capacity - Maximum
2,500 lb
Wheel Hardness Rating
95 Shore A
Mounting Hole Type
Slot
Mounting Plate Shape
Rectangle
For Surface Type
Concrete
Wheel Core Type
Solid
Operating Temperature - Maximum
200 Degrees F
Operating Temperature Range
-40 Degrees to 200 Degrees F
Operating Temperature - Minimum
-40 Degrees F

Description

Rigid, Plate Caster, Load Rating 2500 lb, Swivel Lock Type No Lock Included, Wheel Dia. 8 in, Wheel Width 3 in, Wheel/Tread Material Polyurethane, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
