Shop HAMILTON

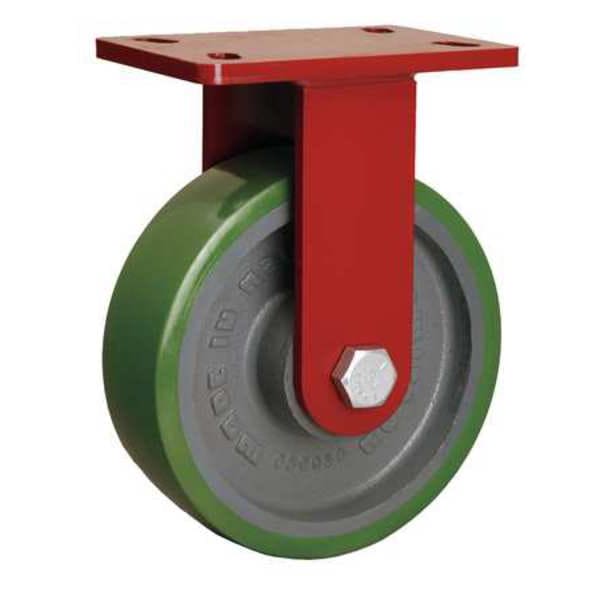

Plte Caster, Rgid, Poly, 8 in., 2000 lb., Grn

  • Mfr # R-FM-8DB

  • Zoro # G2892942

product price:  $182.99
/ea
Free Shipping & Returns

Key Features

Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Frame Finish
Enamel
Caster Frame Material
Steel
Core Color
Gray
Wheel Width
2 1/2 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
R-FM-8DB
Zoro #
G2892942
UPC #
-
Country of Origin
United States

Dimensions

Wheel Width
2 1/2 in
Mounting Bolt Dia.
1/2 in
Overall Height
10-1/8"
Wheel Dia.
8 in
Mounting Height
10 1/4 in
Mounting Plate Size
5 in x 7 in
Mounting Plate Thickness
3/8 in
Overall Wheel Width
2 1/2 in
For Axle Dia.
3/4 in
Mounting Plate Length
6 1/2 in
Inside Slot Spacing - Length
4.938 in
Inside Slot Spacing - Width
2.438 in
Outside Slot Spacing - Length
5.25 in
Mounting Plate Width
4 1/2 in
Outside Slot Spacing - Width
3.375 in

Details

Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Frame Finish
Enamel
Caster Frame Material
Steel
Core Color
Gray
Features
Floor Protective
Caster Plate Hole Pattern
A
Load Rating
2000 lb
Number of Wheels
1
Includes
Spanner Bushing
Caster Sub-Type
Rigid
Standards
ANSI ICWM
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Extended Lead
No
Item
Plate Caster
Thread Guards
No
Replacement Wheel
23ER06
Caster Brake Included
No
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Non-Marking
Yes
Caster Temp. Range Available
Yes
Wheel Color
Green
Wheel/Tread Hardness Rating
Firm
Tread Shape
Standard
Swivel Lock Type
No Lock Included
Number of Mounting Holes
4
Swivel Construction
Kingpin
Wheel Bearing Type
Ball
Load Rating Range
1000 to 2999 lb
Includes Thread Guards
No
Wheel Core Material
Iron
Caster Brake Type
No Brake
Wheel/Tread Material
Polyurethane
Wheel/Tread Color
Green
Wheel Type
Flat-Free
System of Measurement
Inch
Wheel Hardness Rating
95 Shore A
Load Capacity - Maximum
2,000 lb
Mounting Plate Shape
Rectangle
Wheel Core Type
Solid
Mounting Hole Type
Slot
For Surface Type
Concrete
Operating Temperature Range
-40 Degrees to 200 Degrees F
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature - Maximum
200 Degrees F

Description

Rigid, Plate Caster, Load Rating 2000 lb, Swivel Lock Type No Lock Included, Wheel Dia. 8 in, Wheel Width 2 1/2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
